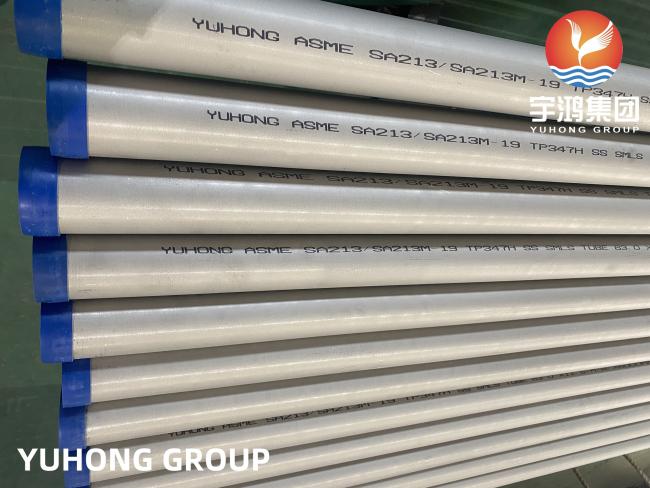

ASME SA213 TP347H Stainless Steel Heat Exchanger Tubing For High Temperature Service
ASTM A213/ ASME SA213 TP347H SS Heat Exchanger Tube for High Temperature Service
Overview
ASME SA213 TP347H is a high-temperature austenitic stainless steel tube designed for heat exchangers, boilers, and superheaters in demanding industrial environments. Its superior resistance to oxidation, corrosion, and creep makes it ideal for applications in power plants, petrochemical refineries, and other high-temperature processes. YUHONG has extensive experience in supplying and manufacturing SA213 TP347H tubes, ensuring high-quality performance and reliability.
Key Features & Benefits
-
High-Temperature Strength: Excellent creep resistance at elevated temperatures (up to 800°C).
-
Corrosion Resistance: Enhanced resistance to intergranular corrosion and oxidation due to stabilized niobium (Nb) content.
-
Weldability & Formability: Suitable for welding and forming without post-weld heat treatment.
-
Long Service Life: Durable performance in harsh environments, reducing maintenance costs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | ASME SA213 / ASTM A213 |
| Material Grade | TP347H (UNS S34709) |
| Chemical Composition | Cr: 17-19%, Ni: 9-12%, C: 0.04-0.10%, Nb: 10xC min |
| Mechanical Properties | Tensile Strength: ≥515 MPa, Yield Strength: ≥205 MPa |
| Dimensions | OD: 12.7mm - 50.8mm, Wall Thickness: 1.24mm - 12mm |
| Length | Up to 12m (custom lengths available) |
| Surface Finish | Pickled, Annealed, Bright Annealed |
| Operating Temp. | Up to 800°C (1472°F) |
Comparison with Similar Grades
| Property | TP347H | TP304H | TP321H |
|---|---|---|---|
| Stabilizing Element | Niobium (Nb) | None | Titanium (Ti) |
| Max Operating Temp. | 800°C | 650°C | 750°C |
| Intergranular Corrosion Resistance | Excellent | Good | Good |
| Creep Resistance | Superior | Moderate | High |
| Typical Applications | Superheaters, boilers | General heat exchangers | Moderate-high temp. |
Applications
-
Power Generation: Superheaters, reheaters, and boiler tubes in coal-fired & nuclear plants.
-
Oil & Gas: Heat exchangers and condensers in refineries.
-
Chemical Processing: High-temperature reactors and heat recovery systems.
-
HVAC & Industrial Heating: Efficient heat transfer in industrial furnaces.
Why Choose YUHONG?
With years of expertise in producing ASME SA213 TP347H heat exchanger tubes, YUHONG guarantees:
✔ Strict Quality Control – Compliance with ASME, ASTM, and EN standards.
✔ Custom Solutions – Tailored dimensions, coatings, and testing (hydrostatic, ultrasonic, eddy current).
✔ Global Supply – Reliable logistics for timely delivery worldwide.
For inquiries, contact YUHONG today for high-performance TP347H tubes that meet your exact requirements!
