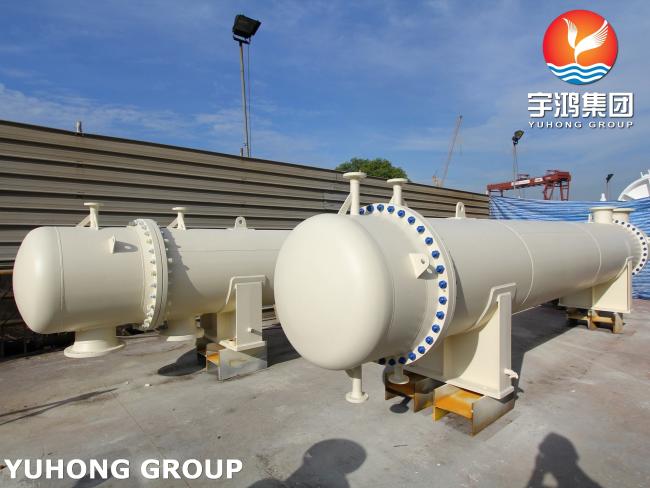

ASME Certificated Shell And Tube Type Heat Exchanger Stripping Gas Heater

ASME Certificated Shell And Tube Type Heat Exchanger Stripping Gas Heater

YUHONG Stripping Gas Heater is a precision-engineered thermal solution designed specifically for the demanding environments of the Pipeline Project. Built to facilitate critical heat exchange processes in gas conditioning units (GCU), this heater combines robust metallurgical integrity with advanced engineering standards (ASME Sec VIII Div.1 and TEMA) to ensure maximum efficiency in stripping gas applications.

Technical Engineering & Design Standards

Design Pressure: shell-side design pressure of 5 barg.

Temperature Resilience: design temperature for the shell side is rated at 150°C.

Seismic & Wind Load Integrity: The unit is designed in accordance with IBC 2010 for seismic stability and ASCE/SEI 7-22 for wind load resistance.

Material Excellence for Sour Service

To combat the corrosive nature of hydrocarbon condensates and lean glycol fluids, the 01-GA-0204 utilizes premium-grade materials tailored for Sour Service (HIC/SSC) requirements.

Shell & Barrels: SA-516 Gr. 70N

​Cladding Protection: cladded with Stainless Steel (minimum 3mm after machining)

Applications

Oil and Gas Midstream Processing

Hydrocarbon Condensate Heating

Lean Glycol Regeneration Units

Stripping Gas Pre-heating
