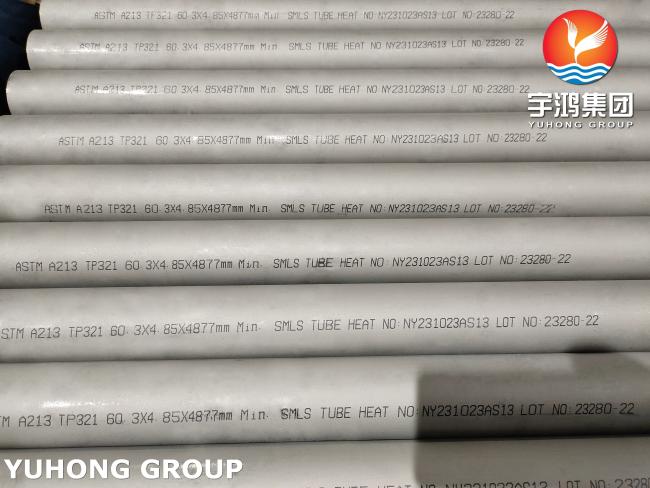

A213 TP321 Stainless Steel Seamless Boiler Tubes Used In High Temperatures
A213 TP321 Stainless Steel Seamless Boiler Tubes Used In High Temperatures
ASTM A213 TP321 is a specification for seamless ferritic and austenitic alloy steel boiler, superheater, and heat-exchanger tubes. TP321 is a titanium-stabilized stainless steel grade that offers excellent resistance to intergranular corrosion and oxidation at high temperatures. These tubes are specifically designed for applications that require high strength, resistance to thermal stress, and excellent mechanical properties under elevated temperatures.
Key Features of A213 TP321 Stainless Steel Tubes
-
High Temperature Strength
TP321 stainless steel contains titanium, which improves its resistance to high-temperature corrosion and creep. This makes it ideal for boiler and heat exchanger applications. -
Resistance to Intergranular Corrosion
The titanium stabilization prevents carbide precipitation at grain boundaries during welding or high-temperature exposure, ensuring excellent resistance to intergranular corrosion. -
Oxidation Resistance
TP321 tubes offer outstanding resistance to oxidation and scaling in environments up to 870°C (1600°F). -
Excellent Weldability
TP321 tubes are highly weldable without the risk of sensitization or loss of corrosion resistance after welding. -
Durability in Harsh Environments
With its superior mechanical properties, TP321 withstands harsh environments, including acidic, chloride, and high-temperature conditions.
Chemical Composition
| Element | Percentage (%) |
|---|---|
| Carbon (C) | ≤ 0.08 |
| Silicon (Si) | ≤ 1.00 |
| Manganese (Mn) | ≤ 2.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Chromium (Cr) | 17.00–19.00 |
| Nickel (Ni) | 9.00–12.00 |
| Titanium (Ti) | 5 × C to 0.70 |
| Iron (Fe) | Balance |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥ 515 MPa (75,000 psi) |
| Yield Strength | ≥ 205 MPa (30,000 psi) |
| Elongation (in 2 inches) | ≥ 35% |
| Hardness (Brinell) | ≤ 217 HB |
Applications
-
Boilers and Superheaters
TP321 tubes are widely used in boiler systems for heat transfer applications under high temperatures and pressures. -
Heat Exchangers
The material's resistance to high temperatures, thermal stresses, and corrosion makes it ideal for heat exchangers in chemical, petrochemical, and power generation industries. -
Chemical Processing Equipment
TP321 is used in the construction of equipment exposed to corrosive chemicals and elevated temperatures. -
Petrochemical Industry
Suitable for use in oil and gas refineries, where extreme heat and chemical exposure are common. -
Aerospace and Power Plants
Used in components like steam lines, superheaters, and high-pressure piping systems.
Advantages
Seamless tubes, such as A213 TP321, offer several advantages over welded tubes:
- Higher strength and durability.
- Superior resistance to internal pressure.
- No weld seams, reducing the risk of defects or failures.
- Better performance under high-temperature and high-pressure conditions.
