Product Description
ASTM A335 P22 Rows Bend Tubes Hight Emperature Reheaters And Superheaters In Power Plants,Boilers

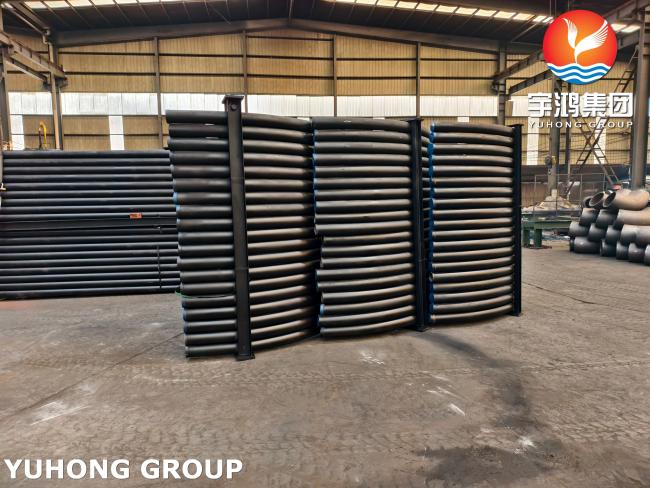

ASTM A335 P22 Rows Bend Tube is a high-temperature, pressure-bearing seamless steel tube made of P22 chromium-molybdenum alloy steel and formed into a tube bundle shape using a specific bending and forming process.
It typically refers to a tube bundle composed of multiple P22 steel tubes arranged in a serpentine bend (such as a U-bend) to meet the large-area heat exchange requirements of equipment such as boilers and heat exchangers.
Advantages include improved space utilization, reduced welds, and increased heat exchange efficiency.
Row Bends Tube vs. Uend Tube
| Rows Bend Tube | U-Tube |
| Enables very dense tube arrangement, high heat transfer area density – ideal for large industrial boiler superheaters, reheaters, and similar applications requiring large surface areas. | Limited by the 180° return bend radius; space in the center of the tube bundle is wasted, resulting in reduced heat transfer area. |
| Serpentine (multi-bend) design distributes thermal stress across multiple bends, offering more uniform stress distribution – suitable for frequent start-stop cycles. | Each U-bend expands/contracts independently, effectively eliminating thermal stress – ideal for applications with large temperature differences. |
| More complex process; requires specialized equipment for continuous bending, but reduces the number of connections – cost-effective for large-scale, standardized production. | Simpler single-tube bending process; high equipment versatility – suitable for small-batch or custom production. |
| Open structure with regular tube gaps allows easy physical cleaning (e.g., high-pressure water jetting) – good maintainability. | Internal tube surfaces are difficult to clean mechanically; typically requires chemical cleaning. Replacement of inner tubes is difficult; leaking tubes often must be plugged. |
| Large power station boiler superheaters/reheaters, tubular heaters in large industrial furnaces. | Heat exchangers in chemical and refinery plants, especially where large temperature differences or high pressures exist between shell and tube sides. |
| Chemical Composition (Ladle Analysis) | |
| Element | Composition (wt%) |
| Carbon (C) | 0.05 – 0.15 |
| Manganese (Mn) | 0.30 – 0.60 |
| Phosphorus (P) | ≤ 0.025 |
| Sulfur (S) | ≤ 0.025 |
| Silicon (Si) | ≤ 0.50 |
| Chromium (Cr) | 1.90 – 2.60 |
| Molybdenum (Mo) |
0.87 – 1.13 |
| Mechanical Properties (as normalized and tempered) | |
| Property | Value (min.) |
| Tensile Strength | ≥ 415 MPa (60 ksi) |
| Yield Strength (0.2% offset) | ≥ 205 MPa (30 ksi) |
| Elongation (longitudinal) | ≥ 30% |
| Elongation (transverse) | ≥ 20% |
| Hardness (Brinell) | ≤ 163 HBW |
Application:
- Power plant boiler superheater/reheater serpentine tube bank
- Main steam piping
- Boiler headers and connecting pipes
- Economizer tube bank
