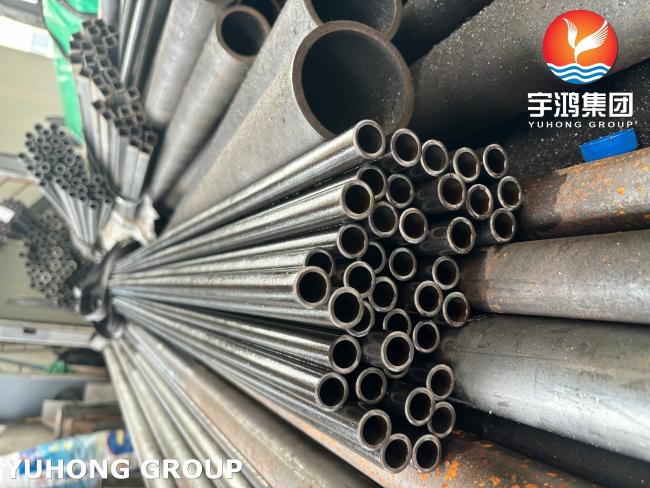

A334 Gr.6 Alloy Steel Boiler Tube For Heat Exchangers, Condensers, And Boilers
A334 Gr.6 Alloy Steel Boiler Tube For Heat Exchangers, Condensers, And Boilers
A334 Grade 6 is a widely used material standard for seamless low-temperature carbon and alloy steel pipe designed for heat exchangers, condensers, and boilers. This alloy steel grade possesses excellent mechanical properties and is specifically engineered to perform well in low-temperature environments.
Key Features of A334 Gr.6 Alloy Steel
-
Low-Temperature Resistance
A334 Gr.6 pipes demonstrate superior performance in low-temperature applications while maintaining mechanical strength. -
High Toughness and Ductility
The material has excellent toughness, making it ideal for applications involving sudden temperature variations and high-pressure conditions. -
Corrosion Resistance
A334 Gr.6 alloy steel is treated to resist corrosion, extending the life of the tubes in harsh environments. -
Seamless Design
Manufactured without a welded seam, these tubes are structurally robust and deliver better integrity in high-stress applications compared to welded pipes. -
Versatile Applications
The tubes are suitable for use in condensers, boilers, and heat transfer applications in power plants, oil refineries, and chemical processing industries.
Chemical Composition
The chemical composition of A334 Gr.6 Alloy Steel is engineered to achieve the right mix of mechanical strength, weldability, and low-temperature properties. The typical breakdown is shown below:
| Element | Composition (Weight %) |
|---|---|
| Carbon (C) | ≤ 0.30 |
| Manganese (Mn) | 0.29-1.06 |
| Phosphorus (P) | ≤ 0.025 |
| Sulfur (S) | ≤ 0.025 |
| Silicon (Si) | 0.10-0.50 |
| Other Elements | Trace |
Mechanical Properties
A334 Gr.6 boiler tubes are designed for strength and resilience, and they meet stringent mechanical requirements:
- Tensile Strength: Minimum 60,000 psi (415 MPa)
- Yield Strength: Minimum 35,000 psi (240 MPa)
- Elongation: Minimum of 30% (proportional to pipe diameter and wall thickness)
- Hardness: HBW 135 or lower.
Applications
A334 Gr.6 Boiler Tubes are used in environments where low temperatures and high pressure are critical challenges. Common application areas include:
- Power Generation: Heat exchangers and boiler systems.
- Petrochemical Industry: Processing plants and refineries.
- Chemical Industry: Heat transfer systems and condensers.
- Oil and Gas: Offshore and onshore platforms under extreme conditions.
- Cryogenic Systems: Low-temperature fluid transport systems.
