Mechanical Suspension Seat Boat Operation Seat Truck Driver Seat​ Details

Mechanical Suspension Seat Boat Operation Seat Truck Driver Seat

Technology

1.Forming welding frame: Q235 cold-rolled steel sheet, 2.0mm thickness, stamping, CO2 gas

   shielded welding process

2.Double spring: high strength spring steel, double spring, full of elasticity, absorb bumps and

   vibrations, release comfortable rebound

3.Damper: Improve frequency response, reduce energy consumption, using special oil pressure

   and sealing medium, stable performance and long service life

4.Movable composite frame: composite shaft sleeve, mechanical welded riveting design, greatly

   strengthen the durability of structural parts and reduce the damping gap

Customizable

1: Seat surface can be choose: PU leather, Fabric, Leather Etc.,

2: Fabric color and style Can be customized.

3: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat box, front

    and rear horizontal adjustment rail, height adjustment , ventilation or heating function, etc., the

    price according to the option.

4: The general hole distance is commonly used: 216/240/260mm * 280/295.5mm before and after ,

    or customized .

5: Seat adjustment function plastic handle position can be choose : left, right,or front

6: Mechanical weight adjustment position can be selected: left, right,or front

7.Backrest size can be choose 530/630mm

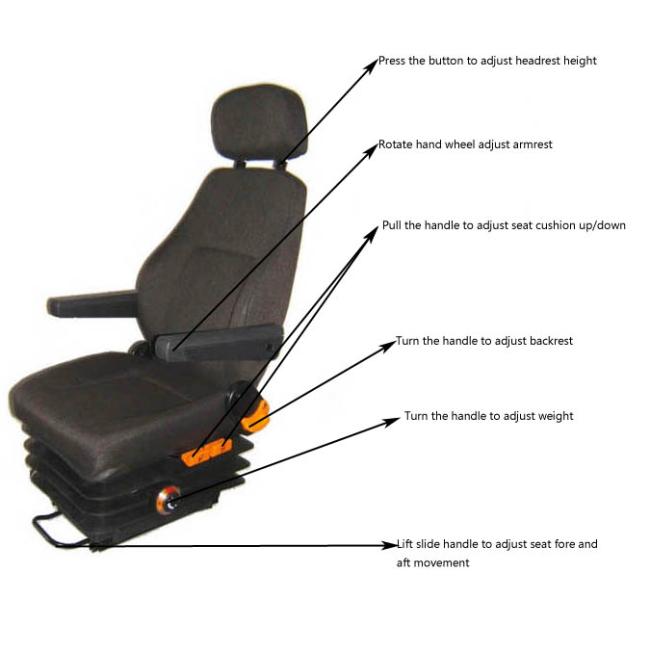

Mechanical Suspension Seat Boat Operation Seat Truck Driver Seat Function
