25mm Head Restraint Adjustment M801 Mechanical Suspension Seat Customizable for Construction Machinery
M801 Mechanical Suspension Seat Construction Machinery Seat Loader
Seat Customizable Details
|
Product Name
|
M801 Mechanical Suspension Seat Construction Machinery Seat Loader Seat Customizable
|
|
Place of Origin
|
Shaanxi China
|
|
Product Model
|
M801-20
|
|
Product Size
|
570*570*1150-1210mm
|
|
Product Material
|
PU/ Leather/Fabric
|
|
Product Color
|
Black/Customized
|
|
Backrest size
|
480*630mm
|
|
Cushion size
|
480*470*295-355mm
|
|
Adjustable Backrest Elevation
|
3 gears adjustable, 25mm for each gear
|
|
Horizontal adjustment
|
Front 105mm, Rear 120mm 23 adjustable
|
|
Weight Adjustment
|
40-130kg
|
|
Bottom Connecting Hole Spacing
|
Left And Right 216mm* Front And Rear 295.5mm
|
M801 Mechanical Suspension Seat Construction Machinery Seat Loader
Seat Customizable

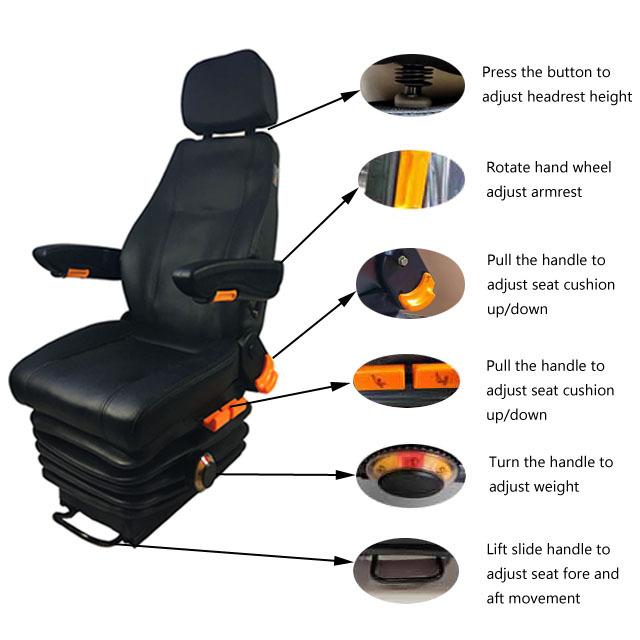

1: Seat surface can be choose: PU leather, Fabric, Leather Etc.,
2: Fabric color and style Can be customized.
3: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat box, front
and rear horizontal adjustment rail, height adjustment , ventilation or heating function, etc.,
the price according to the option.
4: The general hole distance is commonly used: 216/240/260mm * 280/295.5mm before and
after ,or customized .
5: Seat adjustment function plastic handle position can be choose : left, right,or front
6: Mechanical weight adjustment position can be selected: left, right,or front
7.Backrest size can be choose 530/630mm
