M801 Mechanical Suspension Seat High Speed Railway Electric Locomotive Driver Seat
Price:
$224-＄279/set
MOQ:
1 Set
Delivery Time:
10-15days
Brand:
Botai
Product Description
Factory Customized M801 Mechanical Suspension Damping Seat Railway Locomotive
Driver Seat High-speed Railway Subway Driver Seat Details
|
Product Name
|
Customized M801 Mechanical Suspension Seat, Railway Locomotive Driver Seat High-speed Railway Subway Driver Seat |
|
Place of Origin
|
Shaanxi China
|
|
Product Model
|
M801-12
|
|
Scope Of Application
|
Universal
|
|
Product Size
|
570*570*(1390-1450)mm
|
|
Product Material
|
PU+Fabric
|
|
Product Color
|
Black+Blue
|
|
Backrest size
|
480*630mm
|
|
Cushion size
|
480*460*(540-600)mm
|
|
Adjustable Backrest Elevation
|
40-170°
|
|
Horizontal adjustment
|
Front 105mm, Rear 120mm 23 adjustable
|
|
Weight Adjustment
|
40-130kg
|
|
Bottom Connecting Hole Spacing
|
Left And Right 216mm* Front And Rear 295.5mm
|
Mechanical Suspension Seat High Speed Railway Electric Locomotive
Driver Seat Details

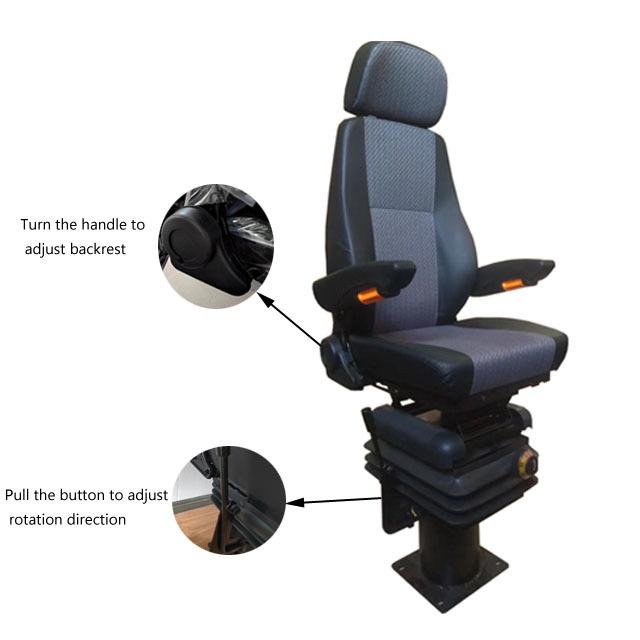

Seat type: M801 Mechanical suspension seat
Overall seat size: length 570mm* width 570mm* height (1390-1450) mm
Back width: 480mm back height: 630mm
Cushion width: 480mm cushion depth: 460mm cushion height: (540-600) mm
Headrest adjustment: 3 gears adjustable, 25mm per gear
Backrest elevation Angle can be adjusted: 40-170°
Height adjustment: stroke 60mm
Horizontal adjustment: front 70mm, rear 70mm
Weight adjustment: 40-130kg
360 degree rotation: ±45°, ±90°, ±135°±180° eight directions can be adjusted
Rotation height: 250mm
Distance between connecting holes at the bottom: 180mm around x 230mm front and rear
Dual armrests are adjustable
Fabric: PU+ composite cloth
Application: railway locomotive driver seat, high-speed railway subway driver seat
