Mechanical Suspension Comfortable Heavy Truck Driver Seat Car Driver Seat Bus Semi-Truck Seat
Mechanical Suspension Comfortable Heavy Truck Driver Seat Car Driver Seat
Bus Semi-Truck Seat Details
|
Product Name
|
Mechanical Suspension Comfortable Heavy Truck Driver Seat Car Driver Seat Bus Semi-Truck Seat
|
|
Place of Origin
|
Shaanxi China
|
|
Product Model
|
M801-14
|
|
Product Size
|
550*570*(1130-1190)mm
|
|
Product Material
|
PU/Leather/Fabric
|
|
Product Color
|
Black/customized
|
|
Backrest size
|
510*850mm
|
|
Cushion size
|
500*470*(290-350)mm
|
|
Adjustable Backrest Elevation
|
80-120°
|
|
Horizontal adjustment
|
Front 105mm, Rear 120mm 23 adjustable
|
|
Weight Adjustment
|
40-130kg
|
|
Bottom Connecting Hole Spacing
|
Left And Right 216mm* Front And Rear 295.5mm
|
Mechanical Suspension Comfortable Heavy Truck Driver Seat Car Driver
Seat Bus Semi-Truck Seat Technical parameter
1.Forming welding frame: Q235 cold-rolled steel sheet, 2.0mm thickness, stamping, CO2 gas shielded
welding process
2.Double spring: high strength spring steel, double spring, full of elasticity, absorb bumps and vibrations,
release comfortable rebound
3.Damper: Improve frequency response, reduce energy consumption, using special oil pressure and
sealing medium, stable performance and long service life
4.Movable composite frame: composite shaft sleeve, mechanical welded riveting design, greatly streng
-then the durability of structural parts and reduce the damping gap

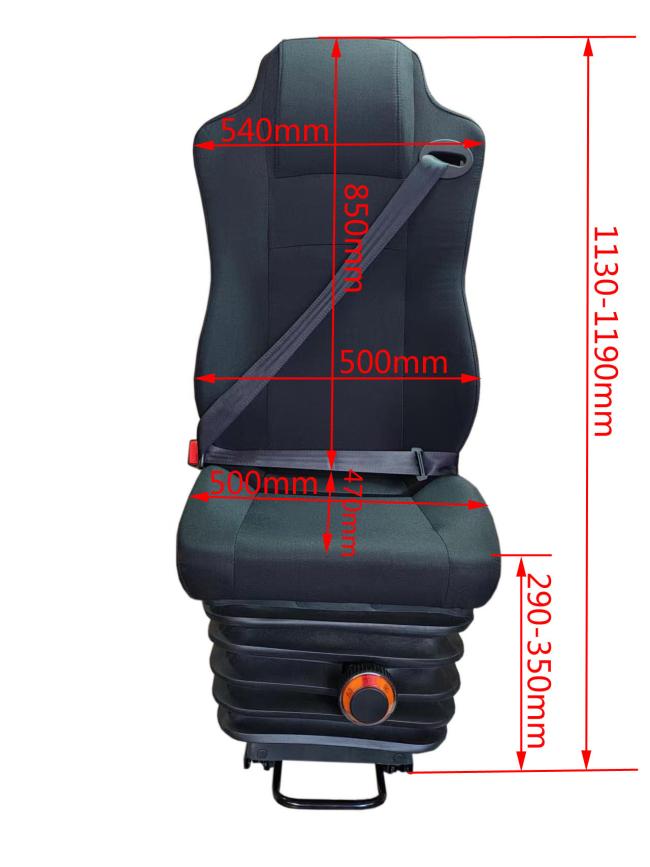

Mechanical Suspension Comfortable Heavy Truck Driver Seat Car Driver
Seat Bus Semi-Truck Seat Size
