High Quality Gypsum Board Plasterboard Drywall Natural Gypsum Standard Gypsum Board Moisture-resistant Gypsum Board
High Quality Gypsum Board Plasterboard Drywall Natural Gypsum Standard Gypsum Board Moisture-resistant Gypsum Board
About this product:

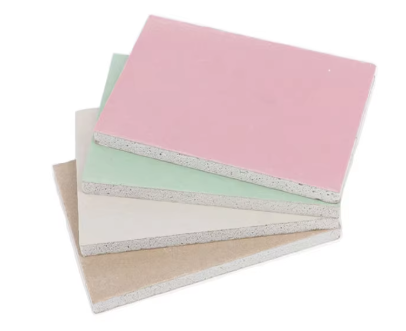

Gypsum Board is the technical product name used by manufacturers for a specific board with a gypsum core and a paper facing and can be described as follows:Regular Gypsum Board,Fire Resistant Gypsum Board,Moisture Resistant Gypsum Board and Water Resistant Gypsum Board.
Gypsum Board is one of many gypsum panel products.It includes gypsum board,glass fiber gypsum panel, perforated gypsum board,and gypsum shaft liner panels.
Glass fiber makes gypsum board stronger
The Less the paper gooten, the better joint between paper and gypsum.
 |
GYPSUM BOARD |
| High Quality Gypsum Material | |
| Tenacious Paper Faces Protecting | |
| Convenience in Installation | |
| Widely Used in Partition and Suspension |
Specification
|
Item |
Regular |
Fire -proof |
Moisture -Proof |
Water-Proof |
|
Width(mm) |
900/1200/1220mm |
|||
|
Length(mm) |
2400/2440/3000/3600mm |
|||
|
Thickness (mm) |
6.4/8/9/9.5/10/12/12.5/13/15/15.9/16mm |
|||
Technical Data
|
Item |
Standard Value |
Test Value |
|||||||
|
Density (kg/m2) |
- |
Thickness |
Regular |
Fire Resistant |
Water Resistant |
||||
|
|
<9.5kg/m2 |
9.5mm |
7.5 |
7.5 |
9.2 |
||||
|
|
<12kg/m2 |
12mm |
9.5 |
9.5 |
11.5 |
||||
|
Flexural Strength(N) |
Parallel |
>360 |
9.5mm |
560 |
|||||
|
|
|
>500 |
12mm |
700 |
|||||
|
|
Cross |
>140 |
9.5mm |
180 |
|||||
|
|
|
>180 |
12mm |
240 |
|||||
|
Surface Paper Sticking the Core Material |
Unexposed |
Unexposed |
|||||||
|
Stability (min) |
Fire Resistant |
>20 |
/ |
/ |
>20 |
/ |
|||
|
Water Absorption (%) |
Water Resistant |
10 |
9.5mm |
/ |
/ |
6.8 |
|||
|
|
|
|
12mm |
/ |
/ |
4.2 |
|||
|
Radioactivity |
Internal |
IRa≤1.0 |
<0.1 |
||||||
|
|
External |
Ir≤1.3 |
<0.1 |
||||||
|
Note |
Executive Standard:GB/T 9775-2008 |
||||||||
