QY-200 Powerline Tools Press Forged Steel Hydraulic Compressors
Price:
Negotiable
MOQ:
10pieces
Delivery Time:
15-35days
Brand:
HANYU
Product Description
QY-200 Powerline Tools Press Forged Steel Hydraulic Compressors
TYQY Hydraulic Compressors
The hydraulic compressors, mainly implemented in press forged steel.
Have the following characteristics:
- Excellent weight/power ratio;
- Very short pressing cycle (all the presses have an hydraulically-driven piston release);
- Each power unit or manual hydraulic pump (and hoses) is interchangeable with any hydraulic press
| For compressor | |||||||||||||||
| |||||||||||||||
| Model | Max compression force (kN) | Rated pressure (kN) | Conductor size (mm) | Max stroke (mm) | Weight (kg) | ||||||||||
| QY-65 | 650 | 94 | ≤500 | 25 | 25 | ||||||||||
| QY-125 | 1250 | 94 | ≤720 | 25 | 40 | ||||||||||
| QY-200 | 2000 | 94 | ≤1440 | 25 | 85 | ||||||||||

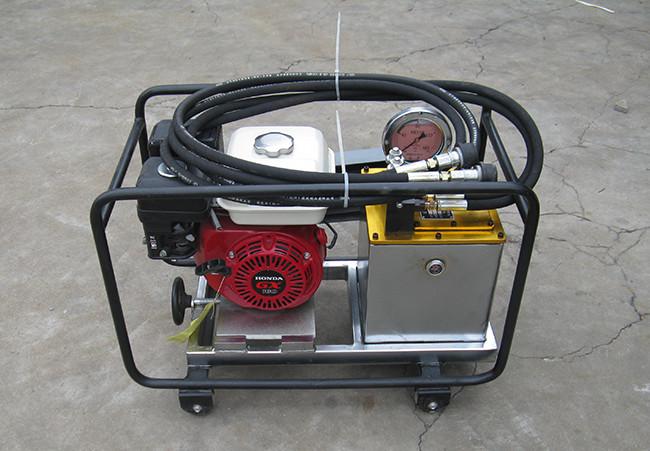

| For Gasoline pump | |||||||||||||||
| Model | Max compression force | Engine | Flow | Tank capacity | Power | Weight | |||||||||
| YB-100 | 100Mpa | Gasoline | 1.6L/min | 8L | 5.5hp | 83kg | |||||||||
| YB-100D | 100Mpa | Diesel | 1.6L/min | 8L | 4hp | 100kg | |||||||||
| YB-100M | 100Mpa | Motor | 1.6L/min | 8L | 1.5hp | 90kg | |||||||||
| For Die | |||||||||||||||
| Model | Compressor model | Aluminum Dies | Steel Dies | Copper Dies | |||||||||||
| QYD-65 | QY-65 | 26/28/30/32/34/36/ 38/40/45/50 | 12/14/16/18/20/ 22/24/26 | 16~800mm2 | |||||||||||
| QYD-125 | QY-125 | 26/28/30/32/34/36/ 38/40/45/50/52/55/60 | 12/14/16/18/20/ 22/24/26 | 16~800mm2 | |||||||||||
| QYD-200 | QY-200 | 26/28/30/32/34/36/ 38/40/45/50/52/55/ 60/65/70/75/80 | 12/14/16/18/20/ 22/24/26/28/30/32 | 16~800mm2 | |||||||||||
