China Powerline Tools Rated Load 20kN Swivel Joints Mount On Thrust Bearings for sale
China Powerline Tools Rated Load 20kN Swivel Joints Mount On Thrust Bearings for sale
China Powerline Tools Rated Load 20kN Swivel Joints Mount On Thrust Bearings for sale

Powerline Tools Rated Load 20kN Swivel Joints Mount On Thrust Bearings

Price Negotiable
Price: Negotiable
MOQ: 50pieces
Delivery Time: 15-35days
Brand: HANYU
Product Description

Powerline Tools Rated Load 20kN Swivel Joints Mount On Thrust Bearings

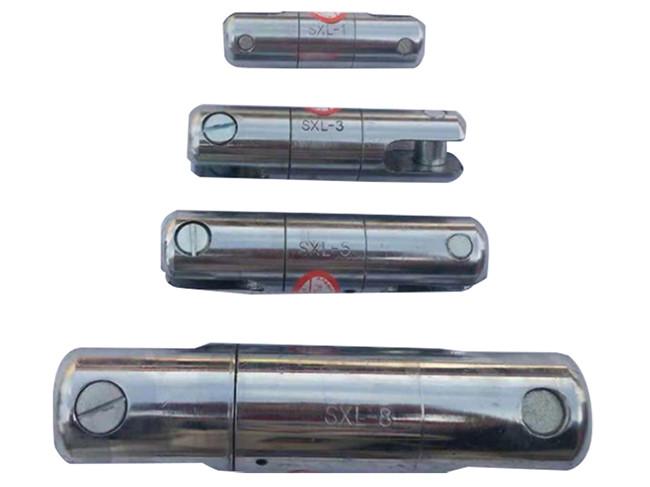

TYSLX Swivel Joints

  1. The swivel joints are suitable to connect the pulling rope to the mesh sock joint mounted on the conductor, they are mounted on thrust bearings and they are designed to avoid torsion stain accumulation.
  2. They are made of highly tensile galvanized steel, the special design can bear the high radial loads, which occur during the passage over the pulleys.
Model Dimensions (mm) Weight Rated load
A B C D E (kg) (kN)
SLX-1 30 100 70 12 13 0.4 10
SLX-2 35 120 90 14 14 0.55 20
SLX-3 37 129 95 16 16 0.65 30
SLX-5 42 154 116 18 17 1.5 50
SLX-8 57 220 165 24 22 2.4 80
SLX-13 62 248 192 26 24 3.5 130
SLX-18 75 294 222 26 26 7.2 180
SLX-25 85 331 251 30 30 10.6 250
SLX-32 85 346 264 38 30 9.7 320
