Hand Copper Ratchet Armoured Cable Cutter Armoured Cable Cutting Tools
Price:
Negotiable
MOQ:
50pieces
Delivery Time:
15-35days
Brand:
HANYU
Product Description
Lineman Tools J-30 Hand Copper Ratchet Armoured Cable Wire Cutter
General features
- Ratchet cable cutter with handiness & save labour.
- The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
- The blades can sharpen or replace
- The handle can be extended as your requirement
| Technical Data | |||

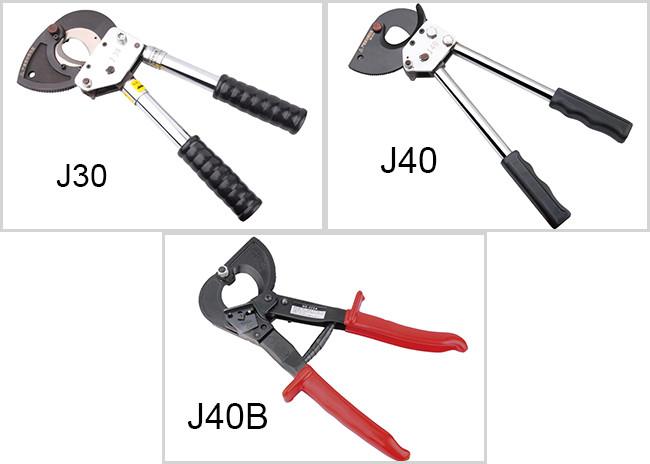

| Model | J-40B | J-30 | J-40 |
| Cutting range | Cutting off Cu/Al cable smaller than 240mm2 | Cutting off steel wire ropes smaller than 100mm2 and ACSR small than 630mm2 | Cutting off Cu/Al armored cable smaller than 300mm2 and 1000pairs of communication cables |
| Weight | 0.65kg | 3.5kg | 1kg |
| Package | Fabric bag | Fabric bag | Fabric bag |
| Size | 350(510)*120*45mm | 400(580)*160*60mm | 330*120*35mm |
| Other Model | ||||||
| Model | XD-40 | XD-520A | XD-J-40 | XD-75A | XD-100A | XD130A |
| Cutting range | Cutting off Cu/Al cable smaller than 300mm2 | Cutting off Cu/Al cable smaller than 600mm2 | Cutting off ACSR cable smaller than 800mm2 | Cutting off ACSR cable smaller than 800mm2 | Al/Cu cable max.Φ100mm | Al/Cu cable max.Φ130mm |
| ACSR 32mm | Strands steel wire smaller than 120mm2 | Strands steel wire smaller than 120mm2 | Armored cable max.Φ100mm | Armored cable max.Φ130mm | ||
| Bolt Φ10mm | ||||||
| Steel wire ropes Φ8-16 | ||||||
| Length | 325-425mm | 350-450mm | 350-450mm | 550-730mm | 600-900mm | |
| Weight | 2.0kg | 1.9kg | 2.6kg | 2.6kg | 6.8kg | 7.0kg |
| Package | Plastic case | Fabric bag | Fabric bag | Fabric bag | Fabric bag | Steel case |
| Size | 240*40*50mm | 33*15*5.5cm | 38*17*16cm | 38*17*16cm | 55*27*6.5cm | 60*31.5*9.5cm |
