Hydraulic Power Punch Tool 50T 25mm Copper Sheet / 16mm Metal Sheet
Price:
Negotiable
MOQ:
50pieces
Delivery Time:
15-35days
Brand:
HANYU
Product Description
Lineman Tools CH-80 Hydraulic Power Punch Tool 25mm Of Copper Sheet/16mm Of Metal Sheet
|
|
|
|
|
|
| Model | CH-80 |
| Punch force | 50T |
| Max thickness of sheet | 25mm of copper sheet/16mm of metal sheet |
| Depth of throat | 119mm |
| Height | 556mm |
| Weight | 100kg |
| Package | Wood carton |
| Accessories | Φ16mm, Φ18mm, Φ22mm, Φ25mm |
| Match pump | CP-700, DYB-63A |
| Other Model | |||

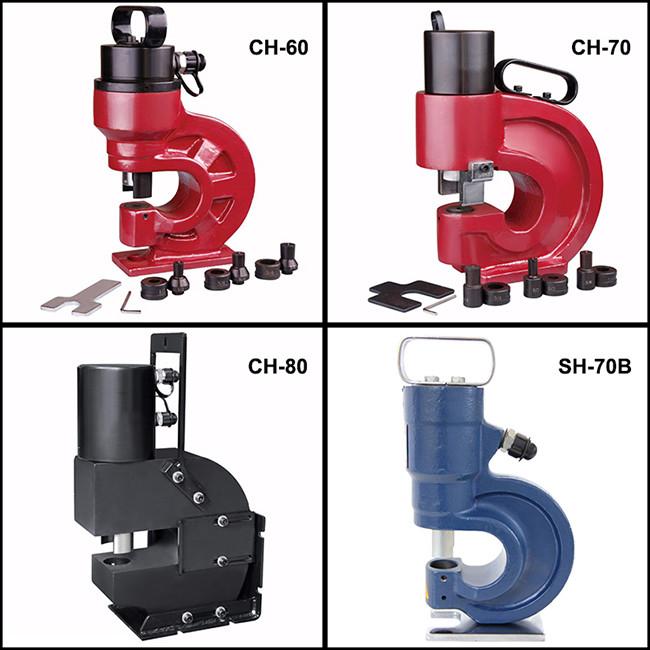

| Model | CH-60 | CH-70 | SH-70B |
| Punch force | 31T | 35T | 35T |
| Max thickness of sheet | 10mm of copper sheet/6mm of metal sheet | 12mm of copper sheet/10mm of metal sheet | 12mm of copper sheet/10mm of metal sheet |
| Depth of throat | 75mm | 95mm | 77mm |
| Height | 390mm | 460mm | 460mm |
| Weight | 17.5kg | 34.5kg | 34.5kg |
| Package | Carton | Carton | Plastic case |
| Size | 390*250*140mm | 470*340*240mm | 470*340*240mm |
| Accessories | 3/8"(Φ10.5), 1/2"(Φ13.5), 5/8"(Φ17.5), 3/4"(Φ20.5)mm | 3/8"(Φ10.5), 1/2"(Φ13.5), 5/8"(Φ17.5), 3/4"(Φ20.5)mm | 3/8"(Φ10.5), 1/2"(Φ13.5), 5/8"(Φ17.5), 3/4"(Φ20.5)mm |
