Dump Truck Hydraulic Cylinder Lineman Tools Heavy Duty RSC-1050
Price:
Negotiable
MOQ:
50pieces
Delivery Time:
15-35days
Brand:
HANYU
Product Description
Lineman Tools Heavy-duty RSC-1050 Dump Truck Hydraulic Cylinder
Hydraulic Cylinder
- Designed for use in all positions
- Heavy-duty return springs
- Baked enamel finish for increased corrosion resistance
- Nickel-plating floating center tube increase product life
| Model | Tonnage(T) | Stroke(mm) | Oil capacity(cc) | Closed height(mm) | Weight(kg) | Volume(cm) |
| RSC-1050 | 10 | 50 | 72 | 95 | 2.5 | 14*7.5*10 |
| RSC-10100 | 10 | 100 | 145 | 145 | 4.5 | 15*10.5*15 |
| RSC-10150 | 10 | 150 | 217 | 225 | 7 | 13.5*10.5*23.5 |
| RSC-2050 | 20 | 50 | 141 | 100 | 5 | 15.5*10*10.5 |
| RSC-20100 | 20 | 100 | 282 | 165 | 7.5 | 18.5*13*18 |
| RSC-20150 | 20 | 150 | 423 | 225 | 11 | 16.5*13*24.5 |
| RSC-3050 | 30 | 50 | 210 | 105 | 5.5 | 16.5*11*11 |
| RSC-30100 | 30 | 100 | 418 | 165 | 9 | 19*14*17.5 |
| RSC-30150 | 30 | 150 | 627 | 230 | 15 | 16*14*24 |
| RSC-5050 | 50 | 50 | 318 | 110 | 9 | 18*13*11.5 |
| RSC-50100 | 50 | 100 | 635 | 170 | 13 | 20*16*19 |
| RSC-50150 | 50 | 150 | 953 | 245 | 18 | 18*16*26.5 |
| RSC-10050 | 100 | 50 | 623 | 135 | 19 | 22*21*15 |
| RSC-100100 | 100 | 100 | 1246 | 235 | 34 | 25*25*26 |
| RSC-100150 | 100 | 150 | 1869 | 285 | 40.5 | 25*25*31 |
| RSC-20050 | 200 | 50 | 1280 | 216 | 55 | 33*31*22 |
| RSC-200100 | 200 | 100 | 2543 | 235 | 72 | 33*31*27 |
| RSC-200150 | 200 | 150 | 3810 | 316 | 82 | 33*31*32 |
| RSC-30050 | 300 | 50 | ||||
| RSC-300100 | 300 | 100 | ||||
| RSC-300150 | 300 | 150 |

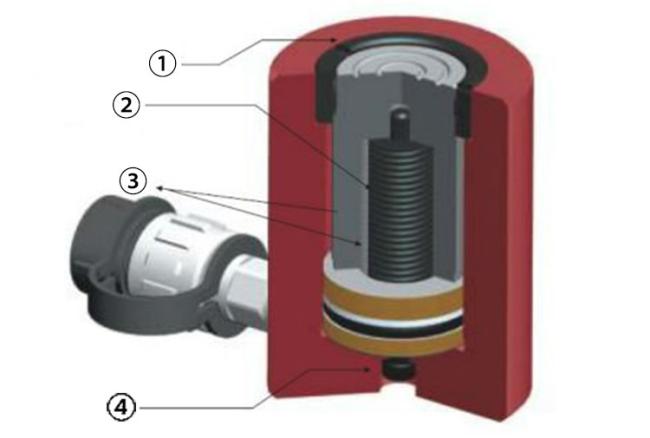

- Shopping ring(to protect the cylinder when the stroke get to top, absorb heaviness on the other side.)
- Spring(provide the capability of quick flexing)
- Cylinder wall and plunger(they can avoid eroding and less friction by chrome plate)
- Brass ring(use high quality of brass to joint, to protect the status of overloading and absorb heaviness on the other side.)
