China US Type Turnbuckle Forged Jaw Steel 3/8

US Type Turnbuckle Forged Jaw Steel 3/8" 1040lbs Capacity

Price Negotiable

Price: Negotiable

MOQ: 100pieces

Delivery Time: 15-35days

Brand: HANYU

Product Description

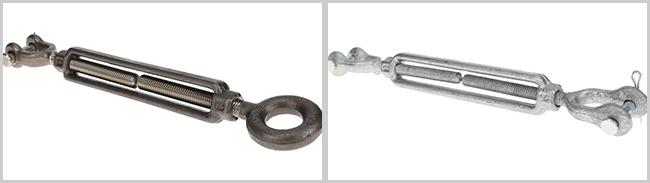

Powerline Tools US Type Turnbuckle Forged Jaw Steel Plain Finish

Take up slack with a Crosby HG228 jaw/jaw Turnbuckles are manufactured with the end fittings quenched and tempered. The jaw allows connection to rigging hardware that can not be opened, an eye bolt for instance.
Product details
Model	P-US-T
Units	US Type Turnbuckle
Category	Turnbuckles An internally threaded sleeve intended for assembly with a threaded stud, eye, hook or jaw at each end used for applying and regulating tension.
Overall length	11-7/8"
Subcategory	Forged jaw & eye Jaw end fittings consist of a jaw, clevis pin, and cotter pin to attach to connecting components that cannot be opened and eye end fittings are used with connecting components that can be opened and attached to the eye.
Thread count	16
Finish	Plain Unplated finish.
Domestically produced	Yes
Material	Steel A low carbon steel for general use.
Diameter	3/8"
Take-up	6"
Jaw opening width	1/2"
Eye inside diameter	51/64"
Eye outside diameter	1-17/32"
Jaw inside length	7/8"
Pin diameter min	5/16"
Rated Capacity	1,040lbs

Crosby products meet or exceed all requirements of ASME B30.26
Hot Dip galvanized steel
Used to apply tension to wire ropes such as guy lines, median barriers, architectural wire ropes or adjust the length of sling legs in multiple leg lifting applications.
The bodies are heat treated by normalizing, the finish is then hot dip galvanized for long term corrosion resistance and long service life.
Turnbuckles recommended for straight or in-line pull only
We don't know when or if this item will be back in stock.
Used for for Lifting, Holding And Tensioning the HG228 range meets or exceeds all requirements of ASME B30.26.Recommended for a straight or in-line pull only.
