1x120KN Cable Tension Machine Electrical Hydraulic Cable Laying Tensioner
Price:
USD74,500.00-79,000.00/Set
MOQ:
1set
Delivery Time:
15-35days
Brand:
HANYU
Product Description

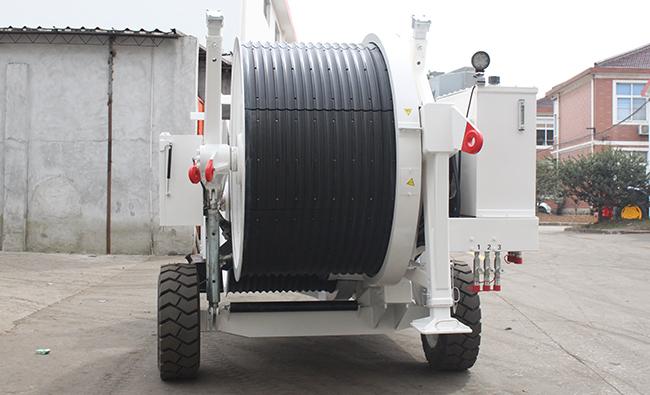

1x120KN Cable Tension Machine Electrical Hydraulic Cable Laying Tensioner
|
TY1X120III Hydraulic Tensioner |
|
|
|
||
| Characteristics | Max conductor diameter | 40mm |
| Total weight | 8500kg | |
| Groove number | 12 | |
| Bull-wheel diameter | 1500mm | |
| Overall dimension (length*width*height) | 5200×2300×2700mm |
| Performance | Max intermittent tension | 1x130kN |
| Max continuous tension | 1x120kN | |
| Max speed | 5km/h | |
| Speed at max tension | 2.5km/h | |
| Max reverse pulling force | 1x90kN | |
| Pull at max speed | 1x50kN |
| Engine | Diesel | 77kw(103hp) |
| Cooling system | water | |
| Electrical system | 24V |
| Main configuration | Hydraulic pump | German Rexroth/Dnish Danfoss |
| Speed reducer | German Rexroth / Italy Bonfiglioli | |
| Main motor | German Rexroth/French Leduc | |
| Engine | Cummins | |
| Main hydraulic valves | USA Sun / Italy ATOS |
| Configuration | Digital speed meters | |
| Hydraulic dynamometers | ||
| Hydraulic oil cooling system | ||
| Hydraulic front stabilizer | ||
| Grounding connection point | ||
| Hydraulic power pack to control up to 3 separated drum stands with hydraulic motor. | ||
| Control instruments for hydraulic system and diesel engine | ||
| Digital meter counters | ||
| Additional Devices | 3 hydraulic conductor clamps for drum change operations (extra charge) | |
| Lighting system for the trailer | ||
| Digital speed and meter counter | ||
| Air brake system for the trailer(extra charge) | ||
| Hydraulic Transmission |
The machine can realize step less speed. |
|
| The machine is provided with tension presetting system. | ||
