Particulate Removal Compressed Air Filter Pacticle Filte
HIGH EFFICIENCY REMOVAL OF POLLUTANT

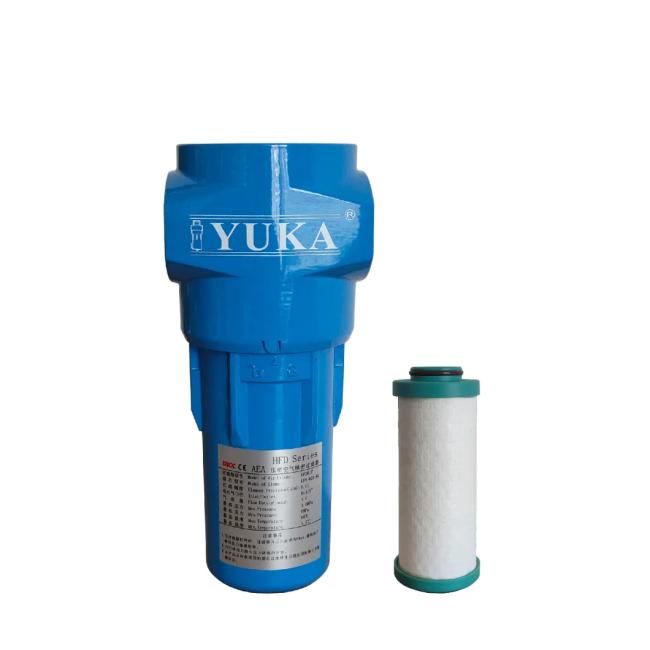

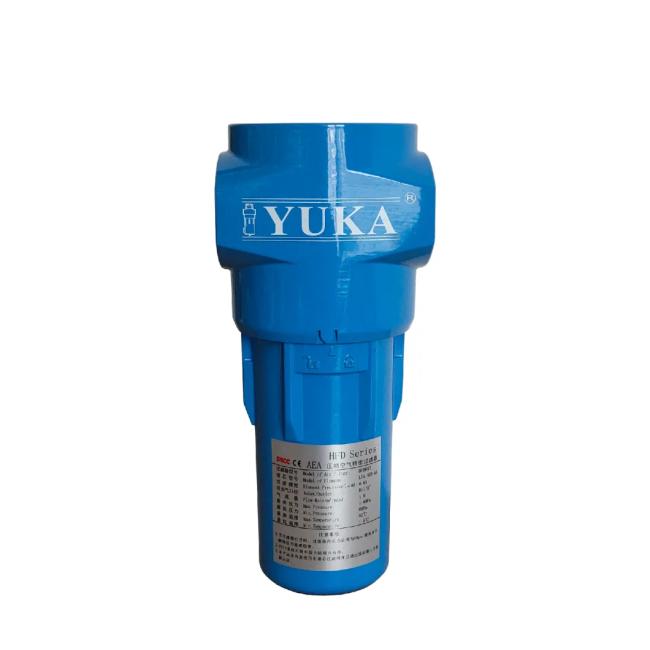

Our Medium & high pressure filter features efficiency fiber glass and felt media to maximize the filtration of dry and wet dust, particulates, oil suspended solids and water droplets. Minimize pressured drop and maintain economical operation costs.
* Validated performance data according to ISO12500; achieves reliable compressed air quality according to ISO8573-1
* Coalescing/particulate filters for the retention of oil and water aerosols and particles from compressed air or gases in industrial applications
* Has a special deep encapsulation (oleophobic/hydrophobic) for reliable high retention at low differential pressure
* Flow-optimized design for minimal pressure loss in compressed air purification (maximum energy cost savings)
ADVANTAGE
SUPERIOR AIR TIGHTNESSUnique lock design,easy to replace and maintenance
AVOID SECOND POLLUTION
Inside and outside with anti-corrosion, with stainless steel manual ball valve.
LOW DIFFERENTIAL PRESSURE
The optimized flow design and the use of filter materials serve to keep differential pressure at a constant low level during the entire service life of the element without compromising it's dirt holding capacity.
HIGH-TECH DESIGN
It is clearly visible due to the edges at the filter head of the compressed air inlet to ensure reliable connection between the left and right filter housings and the left and right filter housing parts during the assembly process.
Compressed air provides a smooth, non-turbulent air velocity when entering the Filter Element.
FEATURE & BENEFIT
- Operating pressure: 1.6 Mpa
- Flow rate: 1.0m³/min to 7.2m³/min (till now)
- Filtration Rate: 5μm/1μm/0.1μm/0.01μm
- Material: Aluminum alloy
- Unique lock design, to ensure easy for maintenance and air tightness.
- Parallel and wall connection kit available.
| PF | AO | AA | AX | ACS | AR | AAR |
| As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible | High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w). | High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w) | Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w) | Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w) | Dust particles whose diameter more than 1μm can be removed | Dust particles whose diameter more than 0.01μm can be removed |
TECHNICAL SPECIFICATION
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g). For the application in other working pressure, please refer to the correction factors.
| Model | Connection | Flow Rate | Dimension | ||||||
| L/S | m³/min | cfm | Width | Depth | Height | A | B | ||
| HFD010 | RC1/2" | 16.7 | 1.0 | 35.3 | 90 | 82 | 255 | 37 | 179 |
| HFD020 | RC3/4" | 25.0 | 1.5 | 53.0 | 90 | 82 | 255 | 37 | 179 |
| HFD030 | RC3/4" | 30.0 | 1.8 | 63.6 | 90 | 82 | 286 | 37 | 212 |
| HFD040 | RC1" | 33.3 | 2.0 | 70.6 | 90 | 82 | 286 | 37 | 212 |
| HFD050 | RC3/4" | 46.7 | 2.8 | 98.9 | 120 | 113 | 359 | 53 | 269 |
| HFD060 | RC1" | 60.0 | 3.6 | 127.1 | 120 | 113 | 359 | 53 | 269 |
| HFD070 | RC1 | 80.0 | 4.8 | 169.5 | 120 | 113 | 459 | 53 | 369 |
| HFD080 | RC1-1/2" | 120.0 | 7.2 | 254.2 | 120 | 113 | 459 | 53 | 369 |
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |
