High Pressure Compressed Air Filter for Laser Cutting
Price:
Negotiable
MOQ:
10 pieces
Delivery Time:
3-7working days
Brand:
Yuka
Product Description
Product Description
Air Filter Feature
1. Aluminum Alloy material, 15 years serve life for filter housing under working condition from temperature 1.5ºC to 80ºC;
2. Maxi. Pressure is 3.0Mpa;
7 Grades Filter Element: PF/AO/AA/AX/ACS/AR/AAR
Technical Specification
1. Aluminum Alloy material, 15 years serve life for filter housing under working condition from temperature 1.5ºC to 80ºC;
2. Maxi. Pressure is 3.0Mpa;
3. 6000 to 8000 hours serve life for Filter Element, filtering performance up to 99%;

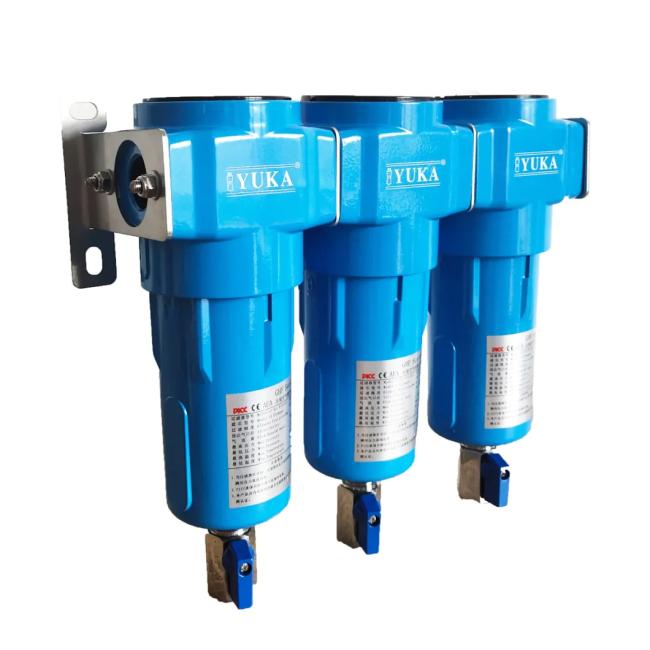

4. With Parallel and wall connection kit, easy for replace and maintenance;
5. With Stainless steel manual ball valve.
![connection kit air filter]()
4. With Parallel and wall connection kit, easy for replace and maintenance;
5. With Stainless steel manual ball valve.
GHF series Air Filter is recommended for the industries in laser, Nitrogen Generator industry.
7 Grades Filter Element: PF/AO/AA/AX/ACS/AR/AAR
| PF | AO | AA | AX | ACS | AR | AAR |
| As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible | High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w). | High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w) | Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w) | Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w) | Dust particles whose diameter more than 1μm can be removed | Dust particles whose diameter more than 0.01μm can be removed |
Technical Specification
| Model | Connection | Flow Rate | Dimension | ||||||
| L/S | m³/min | cfm | Width | Depth | Height | A | B | ||
| GHF017 | RC1/2" | 16.7 | 1.0 | 35.3 | 90 | 82 | 253 | 39 | 173 |
| GHF025 | RC3/4" | 25.0 | 1.5 | 53.0 | 90 | 82 | 253 | 39 | 173 |
| GHF030 | RC1/2" | 30.0 | 1.8 | 63.6 | 90 | 82 | 289 | 39 | 207 |
| GHF035 | RC3/4" | 33.3 | 2.0 | 70.6 | 90 | 82 | 289 | 39 | 207 |
| GHF058 | RC3/4" | 46.7 | 2.8 | 98.9 | 120 | 113 | 369 | 52 | 273 |
| GHF068 | RC1" | 60.0 | 3.6 | 127.1 | 120 | 113 | 369 | 52 | 273 |
| GHF080 | RC1 | 80.0 | 4.8 | 169.5 | 120 | 113 | 469 | 52 | 373 |
| GHF145 | RC1-1/2" | 120.0 | 7.2 | 254.2 | 120 | 113 | 469 | 52 | 373 |
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |
