Competitive Air Dryer Filters
Your compressed air is contaminaed! Airborne water vapour and dust are drawn into your compressor intake. The compressor adds oil aerosols, vapours and worn-out materials. Pipeing can add rust and scale.
YUKA YF-B series Compressed Air Filter was designed with special considenration allotted to energy savings, being built to perform and last as a top priority. They utilise the lates in compressed air technology and are therefore designed to have a lower pressure drop in comparison to most older.
Feature & Benefit
1. Aluminum Alloy material, 15 years serve life for filter housing under working condition from temperature 1.5ºC~80ºC. Maxi. Pressure is 1.6Mpa.
3. Integrated die-casting filter up to 4 inch, flow rate up to 48m³/min.
4. Low pressure loss. Top cap of filter element with diversion fins, which will let the air come inside the filter more smooth.

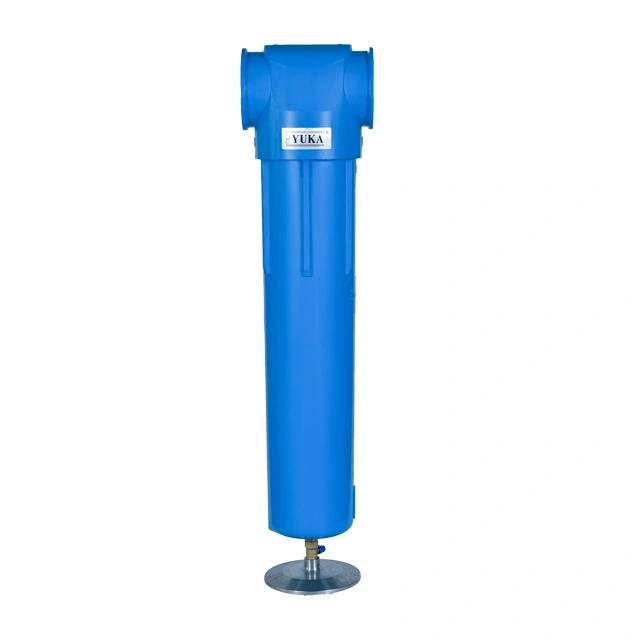

Product Picture
Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g).
For application in other working pressure, please refer to the correction factors.

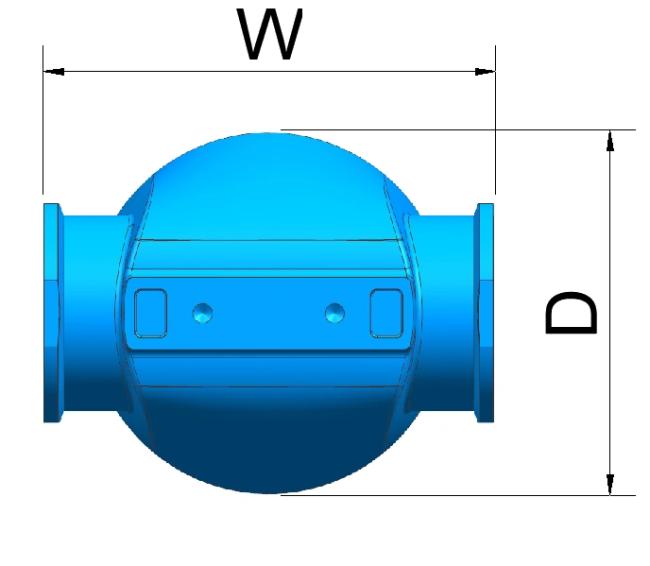

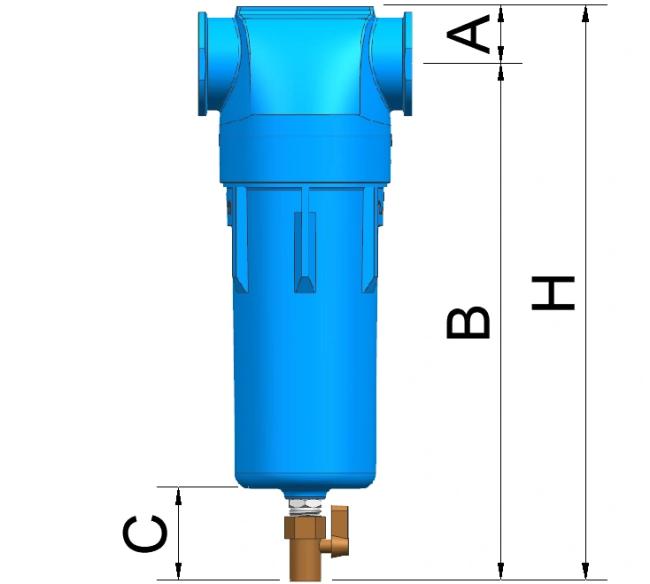

| Model | Pipe size | Flow rates | Dimension (mm) | ||||
| L/S | m³/min | scfm | W(Width) | D(Depth) | H(Height) | ||
| YF-B010 | RC1/2" | 16.7 | 1.0 | 35.5 | 96 | 79 | 245 |
| YF-B020 | RC3/4" | 25.0 | 1.5 | 53.0 | 96 | 79 | 245 |
| YF-B030 | RC3/4" | 30.0 | 1.8 | 63.6 | 96 | 79 | 274 |
| YF-B040 | RC1" | 33.3 | 2.0 | 71.0 | 96 | 79 | 274 |
| YF-B060 | RC1" | 60.0 | 3.6 | 127.0 | 138 | 111 | 349 |
| YF-B070 | RC1" | 83.3 | 5.0 | 177.0 | 138 | 111 | 450 |
| YF-B080 | RC1-1/2" | 125.0 | 7.5 | 265.0 | 138 | 111 | 450 |
| YF-B090 | RC2" | 166.7 | 10.0 | 353.1 | 174 | 142 | 558 |
| YF-B100 | RC2-1/2" | 216.7 | 13.0 | 459.0 | 174 | 142 | 558 |
| YF-B110 | RC2" | 283.3 | 17.0 | 600.0 | 174 | 142 | 838 |
| YF-B120 | RC2-1/2" | 316.7 | 19.0 | 671.0 | 174 | 142 | 838 |
| YF-B130 | RC3" | 416.7 | 25.0 | 883.0 | 220 | 184 | 616 |
| YF-B140 | RC4" | 466.7 | 28.0 | 989.0 | 220 | 184 | 616 |
| YF-B150 | RC3" | 683.3 | 41.0 | 1448.0 | 220 | 184 | 892 |
| YF-B160 | RC4" | 800.0 | 48.0 | 1695.0 | 220 | 184 | 892 |
| Technical requirements | Maxi. operating pressure: 16 barg Operating temperature: 1.5°C~80°C | ||||||
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |

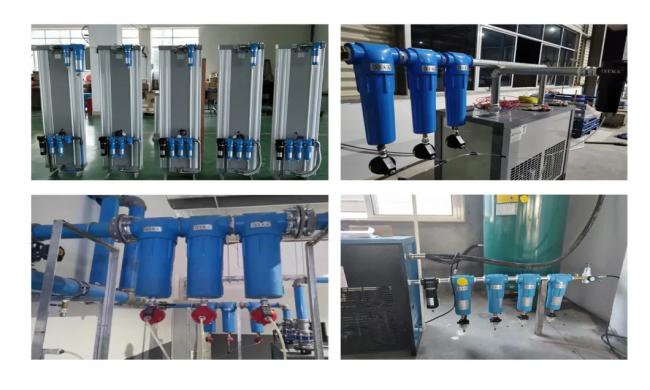

Product Application
YUKA service
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.
Frequently Asked Questions
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.
Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
