5V Desktop Barcode Scanner 2D QR Scanner Box Wired For Supermarket
2D Payment Box Wired Scanner for Supermarket Wechat Pay Alipay Paytm Online
Product Description
product description

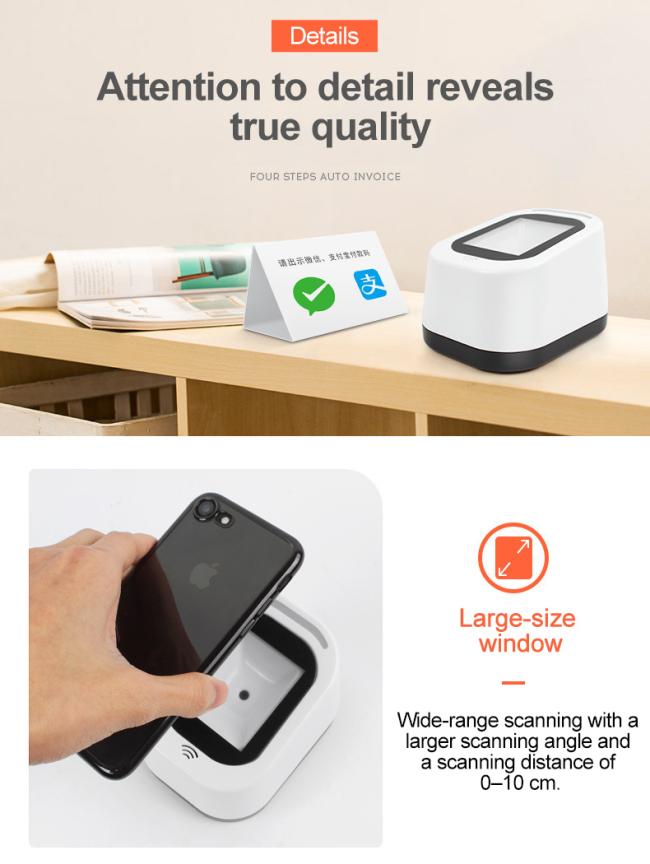

The Desktop Barcode Scanner is a professional 2D scanning platform, Voice broadcasting can be
supported. It can read various screen brightness of the phones 1D 2D barcodes. Large window design,
large viewing angle, support all kinds of screen size mobile phones. Excellent performance provides users
with very comfortable using experience.
product features
☆Smart scanning
☆Fast and stable
☆Quick reading
☆plug and play
☆Responsive
product application
The desktop barcode scanner is commonly used in retail stores for quickly scanning product barcodes during checkout,
speeding up the payment process. In warehouses, it helps in inventory management by scanning item barcodes for stock -
taking, incoming and outgoing goods recording. It's also applied in logistics centers to track and manage parcels through
barcode scanning for sorting and delivery.
Parameter
| Scan Type | CMOS |
| Light Source | Red Light LED 625±10nm(aim), 5600K LEDs( Lighting) |
| CPU | 32-bit |
| Field of view | 60°(H)x48°(V) |
| Resolution | 640*480 |
| Resolution | ≥5mil/0.127mm(PCS90%,Code 39) |
| Decoding speed | 25CM/S |
| Depth of field | 10mm-200mm |
| Scan Mode | Auto Sense |
| Scan angle | Roll±360°, Pitch±65°, Skew±60°(PCS90%, Code 39, 10mil/0.25mm) |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | 1D: UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 32, Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,GS1-Databar(RSS),Itf-14,etc. 2D: QR Code, Data Matrix, PDF 417, Aztec Code, Maxicode, Hanxin. etc. |
| Weight | ≈156g (no Cable) |
| Dimension | (L)120mm * (W)90mm *(H)76mm |
| Interface Type | Type B |
| Communication Mode | USB,RS232 |
| Power Supply | DC 5V@120mA(Max),100ma(work) |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.2m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport vibration Test | 10H@125RPM |
