OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet

Price Negotiable

Price: 1 - 100 pieces $16 100 -500 pieces $15.5 500 -1000 pieces $15

MOQ: 1Pcs

Delivery Time: 3-7 work days

Brand: YJFIRST

Product Description

OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent

Cabinet

parameter

Model		YJ-ES110
Scan Code Performance	Sensor	640X480 CMOS
	Light Source	Fill Light:White 6500K LED/Aiming Light:Red LED
	View Angle	Horizontal 32°,Vertical 24°

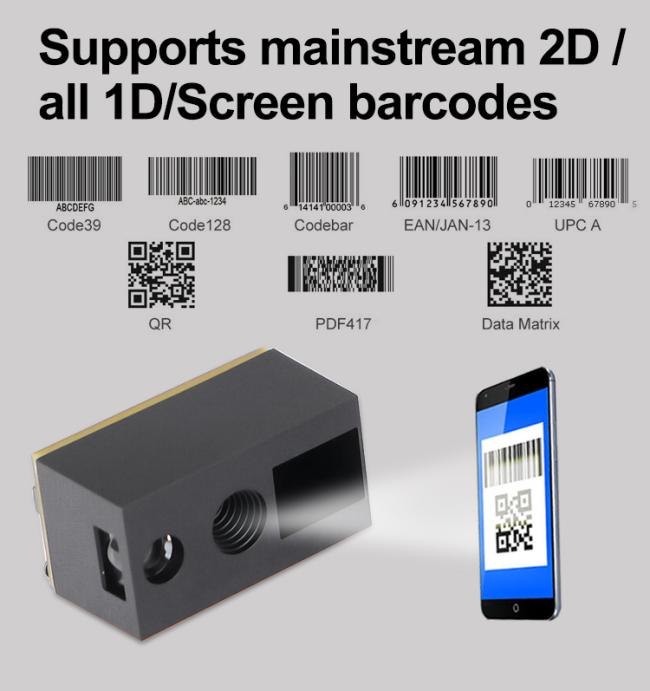

	Decoding Capability	2D:QRCode (Mode1,Mode2),MicroQR,Data Matrix,PDF417,MicroPDF417,Aztec,HanXin,M axicode
		ID:Code128,Code39,Code93,EAN13,EAN8,UPC_E(E0,E1),ISBN13,Interleaved 2of5,Industrial 2 of5,Matrix 2 of5,RSS14(GSI Databar),RSS Limited(GSI Dat abar Limited),RSS Expanded(GSI Databar Expanded),RSS14 Stack(GSI Databar s tack),RSS Expanded (GSI Databar Expanded Stack),Codebar,MSIPlessey,Code 11,Standard 2 of5,Ple ssey,ChinaPost 2 of 5,Code 16K
		Cmpound Code:GSI Composite
	Depth of Field	EAN-13:60~250 mm(13mil) Code128:50~340mm(15mil) QR Code:40~200 mm(15mil)
	Scan Angle	Rotation:360°,Pitch;±60°,Deflection;±60°
	Precisions	ID≥4mil/2D≥10mil
	Symbol Contrast	≥10%
Physical Parameters	Weight	<10g

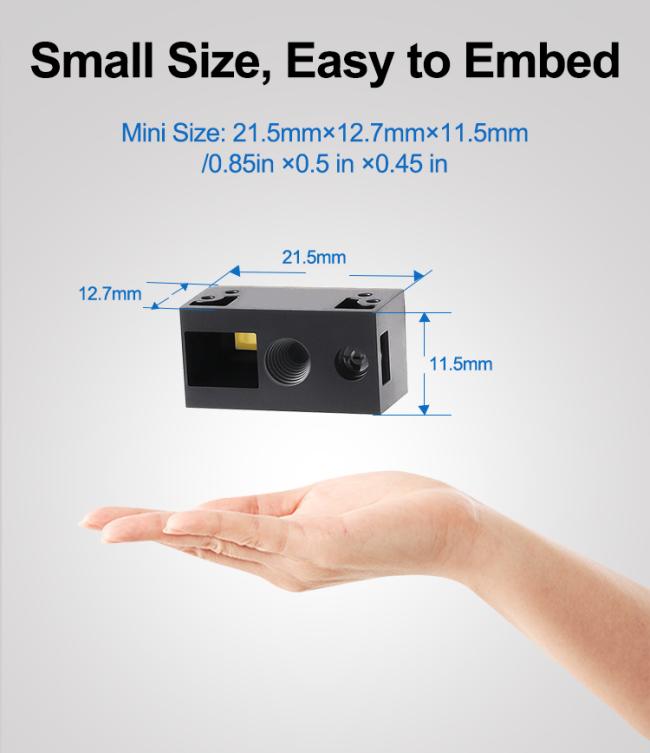

	Dimensions	21.5mmx 11.00mmx 12.20mm
	Interface	TTL-UART,USB-KBW/POS/VCP
	Voltage	+3.3VDC±5%
	Current	Working≤165mA;Sleeping≤1mA

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us

for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents

you provide.

Q: What's the payment method?
A: We accept  online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,

shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
