DC 1.5V-24V Small DC Geared Motor 050 Brush Motor For Door Lock / Robot
Price:
Negotiable
MOQ:
1000
Delivery Time:
3-5 work weeks
Brand:
Masing Motor
Product Description
DC 1.5V-24V Small DC Geared Motor 050 Brush Motor For Door Lock / Robot
Product Overview
DC Gear Motor 050 Brush Motor with 13mm gear box, designed for door lock systems and robotics applications.
- Rated Voltage: DC 1.5V-24V (Customized)
- Speed Range: 2rpm-3000rpm (Customized)
- Power Output: 0.1W-5W (Customized)
- Gearbox: 13×12mm, Copper and stainless steel materials
- Compatible Motors: FF-030, FF-050, micro brushed DC motor
- Gear Ratio: 1:10 to 1:1000 (Customizable)
- Torque Range: 0.01kgf.cm-2kgf.cm
- Output Bearing: Ball bearing / Sleeve bearing
- Applications: Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME
Technical Specifications
| Specification | Details |
|---|---|
| Speed (RPM) | 2rpm-3000rpm |
| Continuous Current | 10mA-300mA |
| Efficiency | 65% |
| Warranty | 3 Months / 1 Year |
| Place of Origin | Guangdong, China |
| Brand Name | Masing Motor |
| Model Number | MS13GM050 |
| Gearbox Material | Steel or Copper Alloy |
| Gear Ratio | 1:10-1:1000 ratio |
| Construction | Permanent Magnet |
| Rotation Direction | CW or CCW |
| Noise Level | ≤55DB |
| Weight | 20g |
| MOQ | 1000Pcs |
| Certifications | CE, Rohs, EU, ISO |
Shaft Types
- Round Type: DIA 3mm, 4mm, 5mm
- D-cut Type: DIA3-D2.5, DIA4-D3, etc.
- Screw Type: M3, M4, M5 Serial
- Trape/I-cut Type: DIA3-I2, DIA4-I3
- Other Types: Shaft with hole, etc.
All shaft types can be customized according to user drawings.

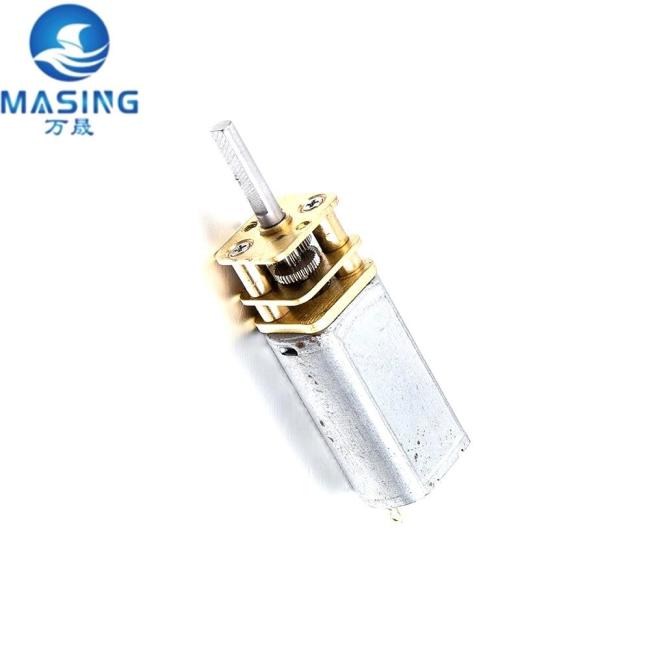

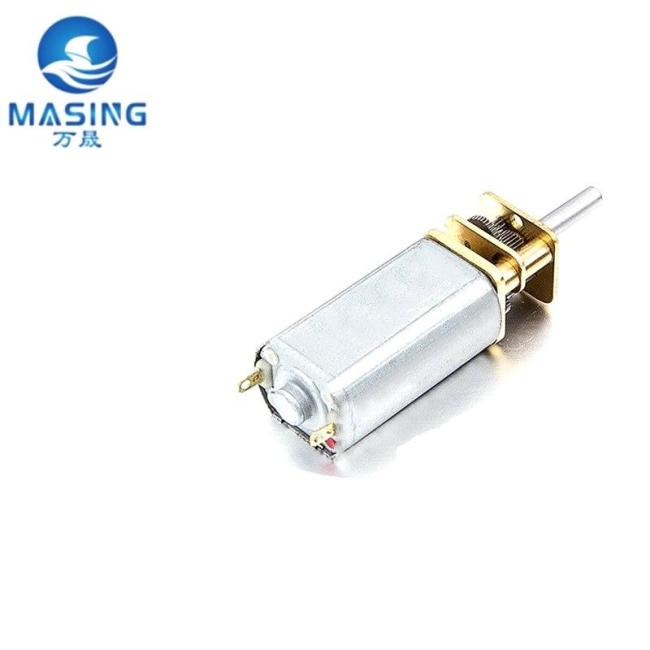

Product Images
Packaging & Delivery
- Packaging: Strong Carton 1000pcs/box, or customized
- Port: Shenzhen/Guangzhou/Shanghai
- Selling Units: Single item
- Package Size: 12×10×24mm
- Gross Weight: 0.02kg
- Supply Ability: 100,000 pieces per month
Lead Time
| Quantity (pieces) | Lead Time (days) |
|---|---|
| 1 - 100 | 10 |
| 101 - 1000 | 15 |
| > 1000 | To be negotiated |
Samples
- Maximum Order Quantity: 1 piece
- Sample Price: $5/piece
Applications
| Industry | Applications |
|---|---|
| Medical Equipment | Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen |
| Electric Powered Equipment | Electric toothbrush, Electric tool, Adult products, Electric toy car, Electric curtain |
| Smart Home | Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair dryer, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot |
Factory & Certifications
Frequently Asked Questions
Q1: Are you a factory?
A1: Yes, we are a factory. Our main products include micro geared motors, brushless DC motors, DC motors, and planetary gear boxes.
Q2: Can you provide OEM or ODM service?
A2: Yes, OEM and ODM services are both welcomed.
Q3: Do you offer discounts?
A3: We are a factory and offer competitive pricing. For large quantities, we can negotiate pricing.
Q4: How about the quality of your products?
A4: We maintain high-quality standards and receive positive feedback from clients worldwide. Under guarantee, we provide immediate assistance and maintain product complaint records below 1%.
Q5: What data do I need to provide for ordering?
A5: Please provide your rated voltage, no load speed, load speed, load torque, and overall dimension requirements.
Q6: What certifications do you have?
A6: We currently hold CE, ISO, and RoHS certifications.
