N20 N30 Micro Motor With Gearbox Mini Dc Gear Motor Low Noise And Long Life For E-Lock
Title:
N20 N30 Micro Motor With Gearbox Mini Dc Gear Motor Low Noise And Long Life For E-Lock
Description:
-
High Efficiency and Performance: 1.5V- 12V DC Spur Geared Motor offers an efficiency of 70%
- Motor diameter :φ12mm Gear DC Motor
- Voltage :DC1.2V-12V
- Speed :10rpm-3000rpm
- Gearbox diameter :12mm
- Gear Material :Steel ,Copper or others customized
- Gear processing methods:CNC or imported gear hobbing machine
- Gearbox Material :Steel ,Copper or others customized
- Shaft Material:Steel ,Carbon steel shaft or others customized
- Shaft Types:Round ,D-cult ,Flat ,with a hole ,M3,M4,Threaded shaft,Threaded hole or others customized
- Customizable Options: We offer various diameter options (12mm, 13mm, 14mm, etc.) and a color that can be customized according to the user's request, allowing for flexibility in design and integration.
- Match Motor type :N10,N20,N30 Mini DC Motor
- Brush Type :Metal Brush or Carton Brush
-
Low Noise and High Torque: With a torque of 0.1-2kg.cm, this motor operates at a low noise level, making it suitable for applications requiring minimal noise pollution, such as fan and cosmetic instrument use.
- Life time :300,000 cycles or others customized
-
Durable and Long-Lasting: The motor's totally enclosed design provides protection from external factors, while the permanent magnet construction ensures a long lifespan and reliable operation.
- Sample testing is available free of charge
Key attributes:

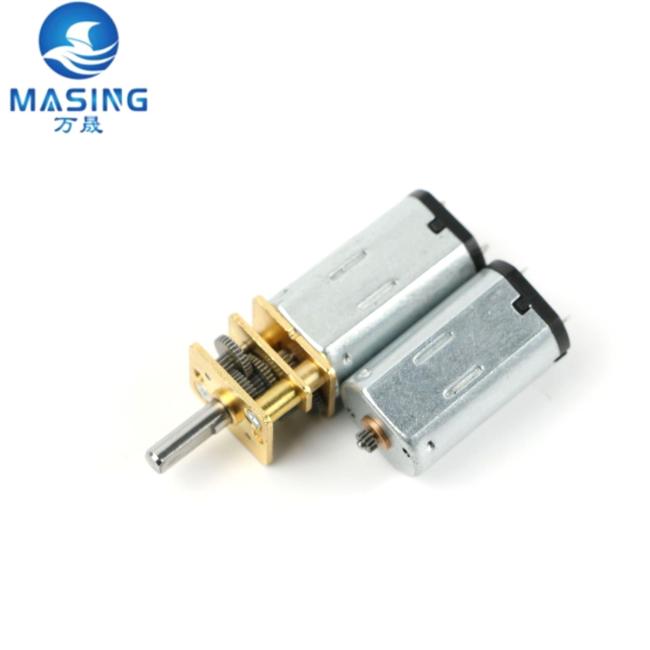

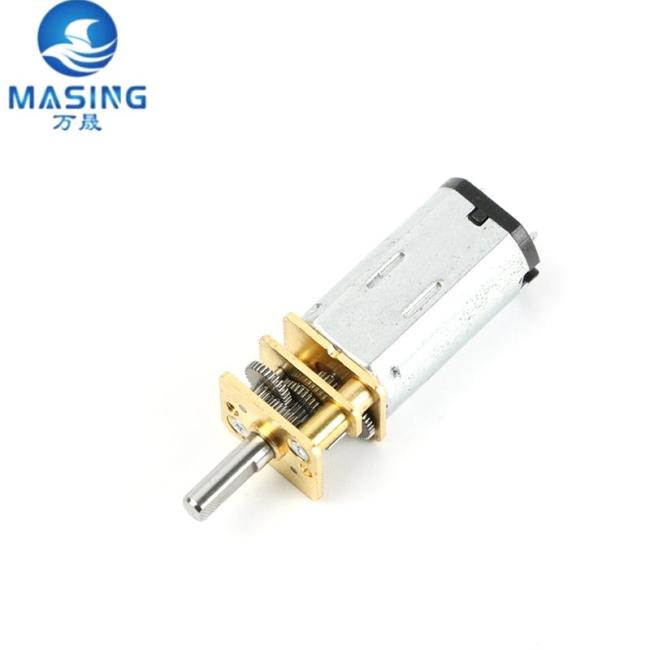

Product Photo:

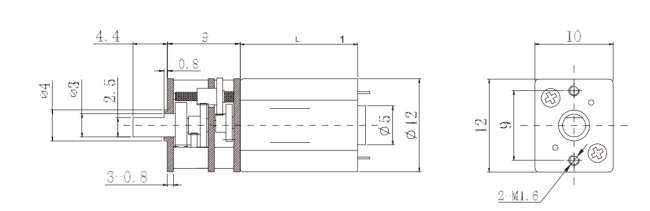

Product Spec:
N20 Gear Motor Typical Applications:
Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, lock,Electronic Door Lock,Smart Home ,Appliance Smart Robot ,Electric Toys,3D printing,Smart cabinet locks
Voltage,rated torque,speed,curent,power and shaft size can be customized as requirement.
| Model | Voltage | No-load | On-load | Stall | Gear Ratio |
Gearbox Length(L) | Motor Type | Motor Length(L1) | |||||||
| Speed | Current | Speed | Current | Torque | Torque | Current | |||||||||
| V | r/min | A | r/min | A | mN.m | Kg.cm | mN.m | Kg.cm | A | mm | mm | ||||
| MS-12FN30-11 | 6 | 2018 | 0.060 | 1576 | 0.30 | 5.9 | 0.06 | 11.9 | 0.12 | 0.90 | 11 | 9 | N30 | 15 | |
| MS-12FN30-37 | 6 | 600 | 0.067 | 469 | 0.33 | 20.0 | 0.20 | 40.0 | 0.85 | 0.90 | 37 | 9 | N30 | 15 | |
| MS-12FN30-50 | 6 | 444 | 0.067 | 347 | 0.33 | 27.0 | 0.28 | 54.0 | 0.55 | 0.90 | 50 | 9 | N30 | 15 | |
| MS-12FN30-70 | 6 | 300 | 0.067 | 232 | 0.33 | 30.0 | 0.30 | 60.0 | 0.61 | 0.90 | 70 | 9 | N30 | 15 | |
| MS-12FN30-97 | 6 | 229 | 0.067 | 179 | 0.33 | 52.4 | 0.53 | 78.6 | 0.80 | 0.90 | 97 | 9 | N30 | 15 | |
| MS-12FN30-117 | 6 | 190 | 0.075 | 148 | 0.38 | 63.2 | 0.64 | 94.8 | 0.97 | 0.90 | 117 | 9 | N30 | 15 | |
| MS-12FN30-150 | 6 | 148 | 0.075 | 116 | 0.38 | 81.1 | 0.83 | 121.7 | 1.24 | 0.90 | 150 | 9 | N30 | 15 | |
| MS-12FN30-168 | 6 | 132 | 0.075 | 103 | 0.38 | 85.2 | 0.87 | 127.8 | 1.30 | 0.90 | 168 | 9 | N30 | 15 | |
| MS-12FN30-210 | 6 | 106 | 0.075 | 83 | 0.38 | 95.3 | 0.97 | 142.9 | 1.46 | 0.90 | 210 | 9 | N30 | 15 | |
| MS-12FN30-226 | 6 | 98 | 0.075 | 77 | 0.38 | 95.3 | 0.97 | 142.9 | 1.46 | 0.90 | 226 | 9 | N30 | 15 | |
| MS-12FN30-286 | 6 | 78 | 0.075 | 61 | 0.38 | 100.5 | 1.02 | 150.8 | 1.54 | 0.90 | 286 | 9 | N30 | 15 | |
| MS-12FN30-380 | 6 | 58 | 0.075 | 46 | 0.38 | 115.6 | 1.18 | 173.3 | 1.77 | 0.90 | 380 | 9 | N30 | 15 | |
| MS-12FN30-1006 | 6 | 22 | 0.086 | 17 | 125.5 | 1.28 | 188.3 | 1.92 | 0.90 | 1006 | 12.5 | N30 | 15 | ||
Packaging and delivery:
Supply Ability:
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$5/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home,Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, lock
A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production→Cargo ready → Balance/delivery → Further cooperation.
Q2: Can you make the gearbox with custom specifications?
A2: Yes. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
Q3: Do you provide the samples?
A3:Yes. Our company can provide the samples to you, and the delivery time is about 5-15 days according to the specification of
gearbox you need. We charge the sample but it will be refunded once you place formal order.
Q4: What is your MOQ?
A4: Our MOQ is 1000pcs. But at the beginning of our business, we accept small order.
Q5:Do you accept customize?
A5: Sure,as we have a strong design team,any problems will get our technical answer.
Q6:Do you have the item in stock?
A6:We don't have the item in stock, All products are made as customer's requirement.
Q7:How can I know the product is suitable for me?
A7: Firstly , you need to provide us the more details information including voltage, no-load speed, load speed, load torque and shaft length. Then, we will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
