12v Low Rpm DC Gear Motor , High Torque Gearbox Motor With 20mm Planetary Gearbox
Price:
Negotiable
MOQ:
1000
Delivery Time:
3-5 work weeks
Brand:
Masing Motor
Product Description
12V Low RPM DC Gear Motor with 20mm Planetary Gearbox
Product Overview
Mini FF-130 Motor with 20mm Planetary Gearbox - a 12V DC gear motor offering low RPM and high torque performance for precision applications.
Key Features
- High Efficiency: 90%-65% efficiency range
- Motor Model: FF-130 or FF-180 with 20mm Brushed Planetary Geared DC Motor
- Rated Speed: 5RPM - 4000RPM (customizable)
- Constant rotating speed with custom specifications available
- Compact Size: 20mm diameter planetary gear DC motor
- Certifications: CE, RoHS, IOS9001, REACH, 16949
- Ideal for small diameter, low noise, and high torque applications
- Brush Motor with Metal or Carton brush options
- Default Direction: CW & CCW available
- Working Temperature: -40°C to +60°C
- Rated Power: 1W-5W with Maximum torque: 5KG.cm
Technical Specifications
- Speed (RPM): 5rpm-4000rpm
- Continuous Current: Customized
- Efficiency: 90%-65%
- Warranty: 3 Months - 1 Year
- Place of Origin: Guangdong, China
- Brand Name: Masing Motor
- Model Number: MSPG20F130
- Motor Type: Brushed Motor
- Rated Torque: 0.01-5kg.cm
- Construction: Permanent Magnet
- Commutation: Brush
- Protect Feature: Totally Enclosed
- Shaft diameter: φ4mm, D-cut
- Gearbox Diameter: φ20mm
- Direction: CW & CCW
- Noise: ≤55DB
- MOQ: 1000Pcs
- Shaft type: Round, Flat, D-cut or Customized
- Gearbox Material: Metal Gearbox Rohs

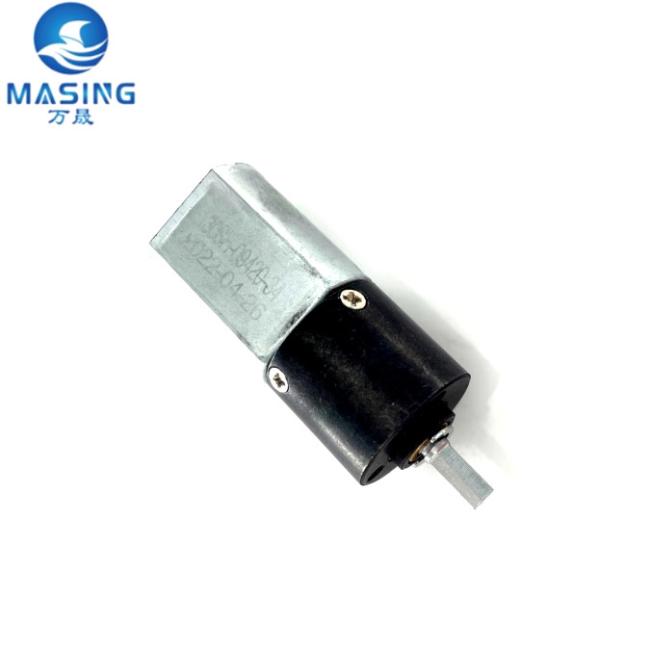

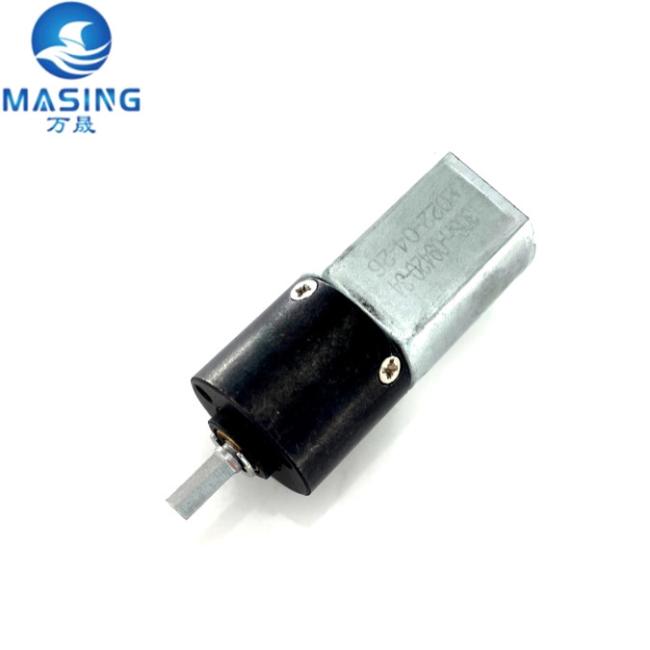

Product Images
Applications
Intelligent household appliances, office automation, automotive, medical, personal care, robot, electronic lock, industrial automation, door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument.

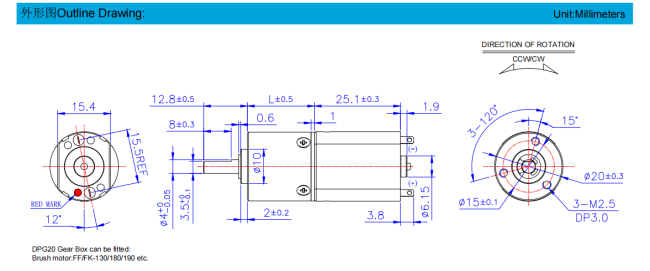

Gearbox Technical Data
| Number of Stages | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Reduction Ratio(K) | 4.38/5.4 | 19/24/29 | 84/104/128/157 | 370/455/560/690/850 |
| Length of Gear box L(mm) | 15.3 | 19.5 | 23.7 | 27.9 |
| Rated Torque(kg-cm) | 2 | 3 | 4 | 5 |
| Transient Torque(kg-cm) | 4 | 6 | 8 | 10 |
| Efficiency(%) | 90% | 81% | 73% | 65% |
Calculation Notes:
Output torque = motor torque × reduction ratio × gear box efficiency
Output speed = motor speed ÷ reduction ratio
Output torque = motor torque × reduction ratio × gear box efficiency
Output speed = motor speed ÷ reduction ratio
Motor Data
| Motor Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Range | Rated | Current | Speed | Torque | Power | Efficiency | Current | Torque | |||
| FF130*** | 3~5V | 4.0V | 0.11 | 7500 | 0.40 | 5885 | 14 | 0.86 | 53.4 | 1.46 | 65 |
| FF180*** | 5~7V | 6.0V | 0.08 | 8500 | 0.38 | 7030 | 19 | 1.37 | 59.4 | 1.84 | 109 |
Packaging & Delivery
- Packaging: Strong Carton 200pcs/box, or customized
- Port: Shenzhen/Guangzhou/Shanghai
- Selling Units: Single item
- Package Size: 37×27×24cm
- Gross Weight: 85G
- Supply Ability: 100,000 Piece/Pieces per Month
Lead Time
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
|---|---|---|---|
| Lead time (days) | 10 | 15 | To be negotiated |
Samples
- Maximum order quantity: 1 piece
- Sample price: $15/piece
Certifications & Factory
Frequently Asked Questions
Q1: Are you factory or trading company?
A1: Yes, we are factory. Main products include micro geared motors, brushless DC motors, DC motors and DC planetary gear boxes.
Q2: What's the price?
A2: We're a professional manufacturer. The exact price is based on clients' specifications, such as speed and voltage requirements.
Q3: What's the MOQ?
A3: We try to meet every client's requests. MOQ is flexible depending on product complexity and production season. Please contact our sales team for confirmation.
Q4: What is the quality of the planetary reducer?
A4: Our gear motors are exported to Japan, Germany, USA, UK, Indonesia, Singapore and other countries. Customers report excellent operation, low noise and high torque performance.
Q5: What's the delivery time?
A5: In slack season: delivery within one month. In busy season: over one month for large quantities. We provide free overtime production for urgent orders.
Q6: How can you guarantee the quality?
A6: We conduct 100% finished product inspection before delivery with zero defective products returned.
