16mm Micro DC Motor PG16-050SH 6v 12v With Gear Reducer Planetary Gearbox
Title:
Good Price Micro Dc 16mm Motor PG16-050SH 6v 12v Motor With Gear Reducer Dc Motor Planetary Gearbox
Description:
-
High Efficiency and Performance: 1.2v-24v DC Planetary Geared Motor offers an efficiency of 90%-65%,
-
Motor Model: FF-030 or FF-050 Product Name:16mm Brushed Planetary Geared DC Motor
-
Rated Speed:5rpm -4000RPM or customized
-
Rotating speed is constant and can be made as you required.
-
Gearbox Size: 16mm diameter planetary gear dc motor
-
Certification:CE,RoHS,IOS9001,REACH,16949
-
Suitable to small diameter, low noise and big torque application
-
Motor type :Brush Motor
-
Brush type :Metal brush or Carton brush
-
Motor default direction:CW&CCW available
-
Working temperature:-40~+60°c
-
Rated Power :1W-5W Maximum torque: 5KG. cm
-
Motor type: carbon brush/Metal Brush
-
Applications:Intelligent household appliances, office automation, automotive, medical, personal care, robot, electronic lock, industrial automation
-
We can provide samples for your test.
-
With stable quality,every product will pass 100% quality inspection before shipping
Key attributes:

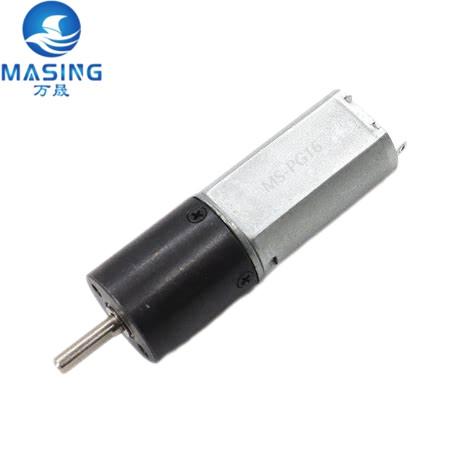

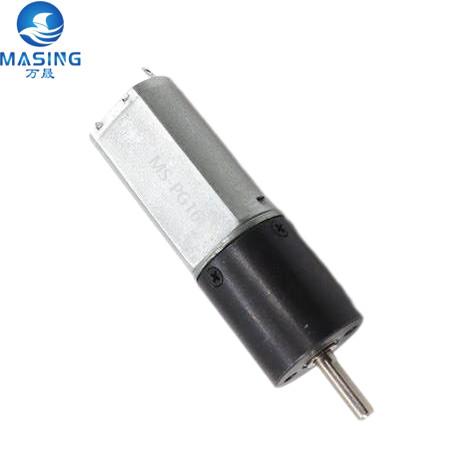

Product Photo:

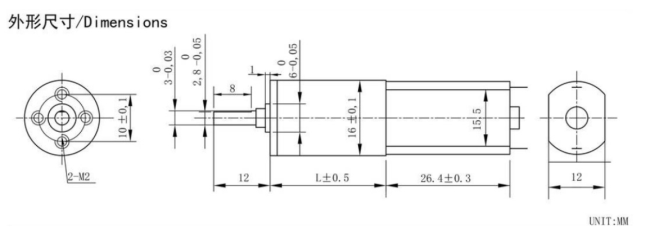

Product Spec:
Micro 16mm DC Planetary Gear Motor Typical Applications:
Intelligent household appliances, office automation, automotive, medical, personal care, robot, electronic lock, industrial automation ,door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
| Performance parameters of the motor | |||||||||||||||
| Model | Voltage | No-load | On-load | Stall | Gear Ratio | Gearbox Length(L) | Motor | Motor Length(L1) | |||||||
| Speed | Current | Speed | Current | Torque | Power | Torque | Current | ||||||||
| V | r/min | A | r/min | A | mN.m | kg.cm | W | mN.m | kg.cm | A | mm | mm | |||
| MS-16P050-4 | 6V | 1400 | 0.09 | 1130 | 0,13 | 1.6 | 0.02 | 0.45 | 5.6 | 0.07 | 0.65 | 4 | 38.4 | JFF/K-050 | 26.9 |
| MS-16P050-16 | 6V | 350 | 0.09 | 285 | 0,13 | 5.1 | 0.05 | 0.45 | 17.9 | 0.18 | 0.65 | 16 | 41.7 | JFF/K-050 | 26.9 |
| MS-16P050-24 | 6V | 235 | 0.09 | 190 | 0.13 | 7.5 | 0.2 | 0.45 | 26.3 | 0.7 | 0.65 | 24 | 41.7 | JFF/K-050 | 26.9 |
| MS-16P050-64 | 6V | 90 | 0.1 | 75 | 0.14 | 13.2 | 0.14 | 0.45 | 46.2 | 0.49 | 0.65 | 64 | 45 | JFF/K-050 | 26.9 |
| MS-16P050-96 | 6V | 55 | 0.1 | 50 | 0.14 | 19.9 | 0.2 | 0.45 | 69.7 | 0.7 | 0.65 | 96 | 45 | JFF/K-050 | 26.9 |
| MS-16P050-256 | 6V | 22 | 0.1 | 18 | 0.14 | 39.7 | 0.41 | 0.45 | 139 | 1.44 | 0.65 | 256 | 48.3 | JFF/K-050 | 26.9 |
| MS-16P050-384 | 6V | 15 | 0.1 | 12 | 0.14 | 60 | 0.61 | 0.45 | 210 | 2.14 | 0.65 | 384 | 48.3 | JFF/K-050 | 26.9 |
| MS-16P050-576 | 6V | 9 | 0.1 | 8 | 0.14 | 89 | 0.91 | 0.45 | 311.5 | 0.46 | 0.65 | 576 | 48.3 | JFF/K-050 | 26.9 |
| MS-16P050-864 | 6V | 6 | 0.12 | 5 | 0.15 | 134 | 1.37 | 0.45 | 469 | 4.8 | 0.65 | 864 | 48.3 | JFF/K-050 | 26.9 |
| MS-16P050-1296 | 6V | 4 | 0.12 | 3 | 0.15 | 196 | 2 | 0.45 | 686 | 7 | 0.65 | 1296 | 48.3 | JFF/K-050 | 26.9 |
Packaging and delivery:
Supply Ability:
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$15/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Smart home, smart door locks, personal care, artificial intelligence, automobiles, model airplanes, adult products, security, small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment and other products.
Q1:How can i get the price?
A1:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q2: Can I buy samples placing orders?
A2:Yes.Please feel free to contact us.
Q3:What is your lead time?
A3: It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q4: Do you accept customize?
A4:Sure,as we have a strong design team,any problems will get our technical answer.
Q5:What kind of data do i neet to provide if i want to order?
A5:Please kindly tell us your voltage,speed,torque and overall dimension.
Q6: What if i don't know the above data?
A6:Please contact our saleman to handle,we'll answer your questions patiently.
