Electric Dc Motor Manufacturer M20 10mm*15mm For Medical Equipment
Electric Dc Motor Manufacturer M20 Title:
Electric Dc Motor Manufacturer M20 10mm*15mm Dc Motor For Medical Equipment
Electric Dc Motor Manufacturer M20 Description:
-
Widely used in robot,lock. toy, gun magazine, eye brush,power tools,Model Airplanes Eyelash Curlers Electric Toothbrushes Model Airplanes Eyelash Curlers Electric Toothbrushes Car, Electric Bicycle Lock, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot
-
Rated Voltage range:DC1.2V-12V
-
Rated Speed:5000rpm-30000RPM
-
Motor Type Size: φ10*12.5mm,Diamter:10mm, Length;12.5mm mini brushed dc motor
-
Suitable to small diameter, low noise and big toque application
-
Shaft diameter :φ1.0mm
-
Shaft type :Ronud ,with hole ,with gear ect
-
Motor type :Brush Motor
-
Brush type :Metal- brush
-
Rated torque :1gf.cm-8gf.cm
-
Direction of motor :CW&CCW
-
Rotating speed is constant and can be made as you required.
-
Can be match with wheel, One shaft one wheel or one motor, one wheel
-
Working temperature:-40~+60°c
-
We can provide samples for your test.
Key attributes:

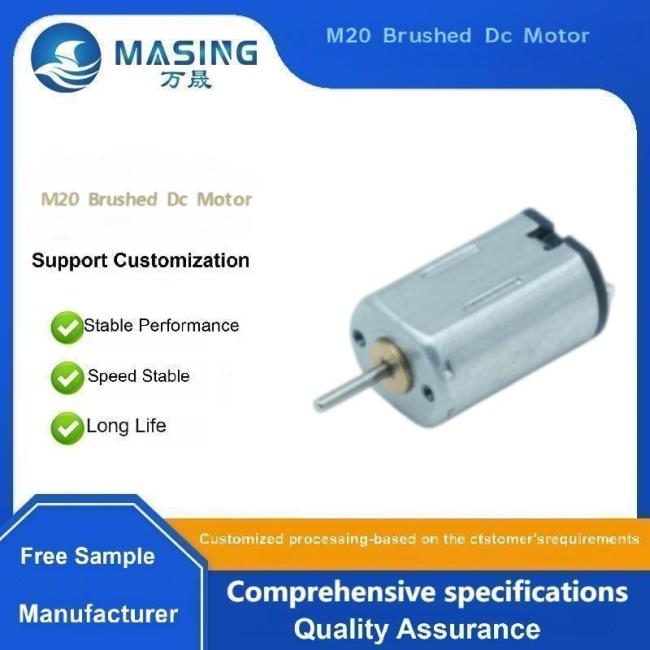

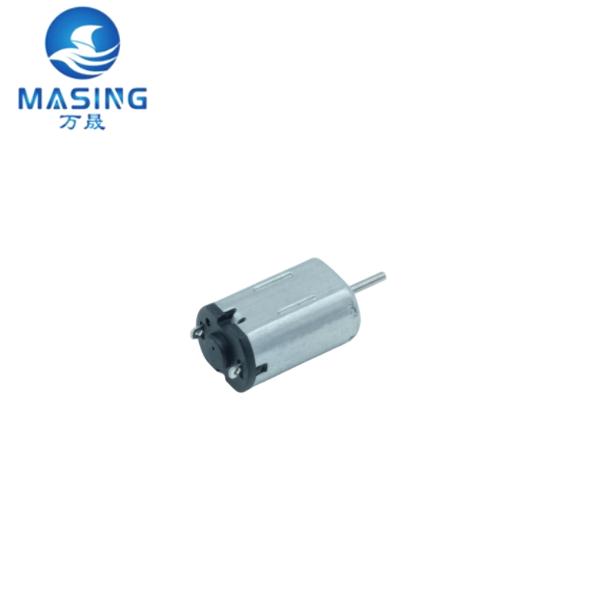

Electric Dc Motor Manufacturer M20 Product Photo:

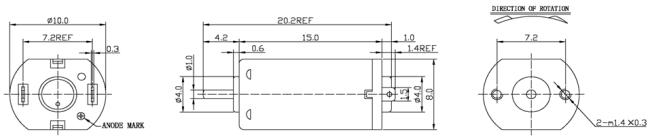

Electric Dc Motor Manufacturer M20 Product Spec:
FF-M20 Micro Brush DC Motor Typical Applications
●Household AppliancesCD/DVD player,Camera,Bloodpresure meter,Camera,Ricecooker.
●Har Cae:Electricshaver.,Model Airplanes Eyelash Curlers Electric Toothbrushes
●Office Equipment:Printer,Projector,Counting Machine.
Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.
| MODEL | WLIACE | NO LOAD | AT MAXIYUV EFICIENCY | STALL | |||||||||
| NORMAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | Out-put | EFF | TORQUE | CURRENT | ||||
| V | r/min | A | r/rin | A | mN.m | g.cm | W | % | mN.m | g.cm | A | ||
| FF-M20PA-1552 | 1.5 | 16460 | 0.15 | 12485 | 0.48 | 0.38 | 3.86 | 0.50 | 46.50 | 1.57 | 16 | 1.50 | |
| FF-M20PA-08160 | 3.5 | 34960 | 0.23 | 27727 | 0.87 | 0.60 | 6.10 | 1.74 | 55.10 | 2.94 | 30 | 3.40 | |
| FF-M2CFA-09135 | 7.2 | 26683 | 0.06 | 20704 | 020 | 0.53 | 5.37 | 1.14 | 50.58 | 2.35 | 24 | 0.72 | |
| FF-M20WA-1551 | 6.0 | 27100 | 0.06 | 21640 | 024 | 0.41 | 4.22 | 094 | 56.05 | 2.06 | 21 | 0.95 | |
| FF-M20WA-1738 | 1.85 | 24000 | 0.22 | 18900 | 0.81 | 0.43 | 4.40 | 0.87 | 53.00 | 2.06 | 21 | 3.00 | |
Packaging and delivery:
Supply Ability:
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$1.5/piece
Certifications:

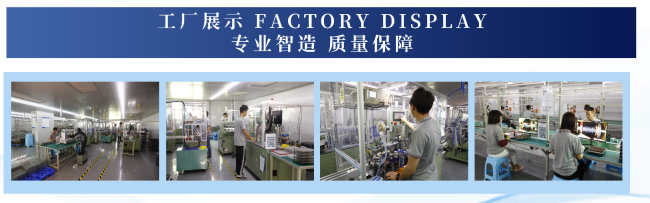

Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,
Security monitoring,5G communication,Smart home
A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q2: What's the MOQ?
A2: We try to meet every client's requests and don't want to disappoint our clients.
So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
Q3:What's the delivery time?
A3:At the first we have an schedule,the earlier you place order,the fater we finish the production.
In the slack season,we can make sure the delivery time is by one month.
In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.
Q4: Can you send some samples before the order?
A4:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.
Q5: Can you make our logo on the products?
A5: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
A6: For small amount,we accept 100% payment via paypal.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit.And the rest must be paid before shipping.
