36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine
Price:
Negotiable
MOQ:
1000
Delivery Time:
3-5 work weeks
Brand:
Masing Motor
Product Description
36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine
Product Overview
DC Reduction Planetary Motor 36MM is a high-performance brushed motor designed for various industrial and commercial applications, featuring metal planetary gearbox construction and customizable specifications.
Technical Specifications
- Rated Voltage: 6V-30V DC Brushed Motor
- Rated Speed: 2rpm - 1000rpm
- Rated Torque: 0.1NM - 10NM
- Motor Type: Brushless motor or Brushed motor
- Motor Models: RS-545/RS-540/RS-550/RS-555
- Motor Size: Diameter 35.7mm, Length: 40mm/50mm/57mm
- Direction: CW/CCW available
- Motor Power: 1W-100W High Power
- Gearbox Diameter: φ36mm
- Gearbox Type: Metal Planetary gearbox and Plastic gearbox
- Gears Material: Plastic, Copper, Steel, Powder metallurgy or customized
- Working Temperature: -40°C to +60°C
- Life Time: 500H-3000H
- Certification: 16949, CE, Rohs, ISO
- Efficiency: 90% to 65%
Key Attributes
- Speed (RPM): 2rpm-1000rpm or customized
- Voltage: DC 6.0-30V
- Efficiency: 90%-65%
- Place of Origin: Guangdong, China
- Brand Name: Masing Motor
- Model Number: MS-PG36-550
- Shaft Diameter: φ8mm or φ10mm or customized
- Torque: 0.1NM-10NM
- Construction: Permanent Magnet
- Commutation: Brushed
- Shaft Type: Round, Flat, D-cut, with a hole, Threaded shaft, Threaded hole or customized
- Direction: CW/CCW available
- Feature: High Efficiency 90%-65%
- Keywords: 12V DC planetary gear motor
- Diameter Size: Brush Motor φ36mm×L40mm, φ36mm×L50mm, φ36mm×L57mm
- Weight: 400g/450g
- Noise: Low Noise Level, ≤55DB
- MOQ: 1000Pcs
- Customized Support: OEM, ODM, OBM
- Dimension Box: φ36mm
- Life Expectancy: 500H-3000H

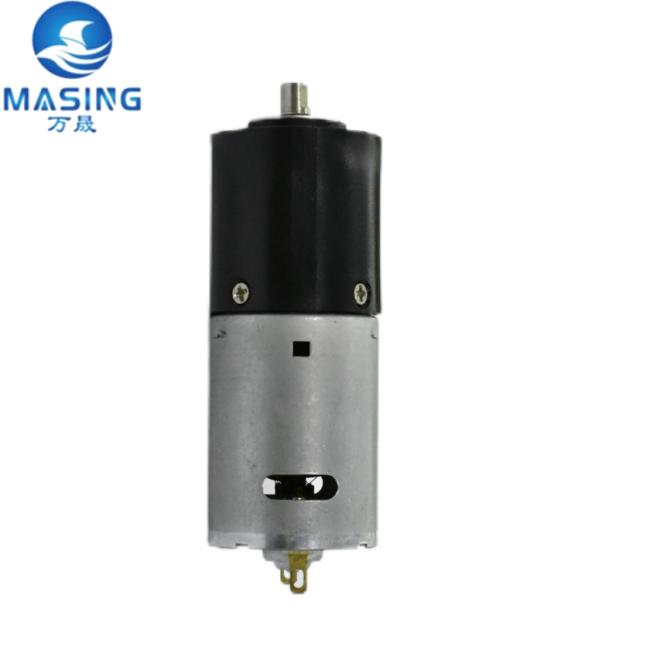

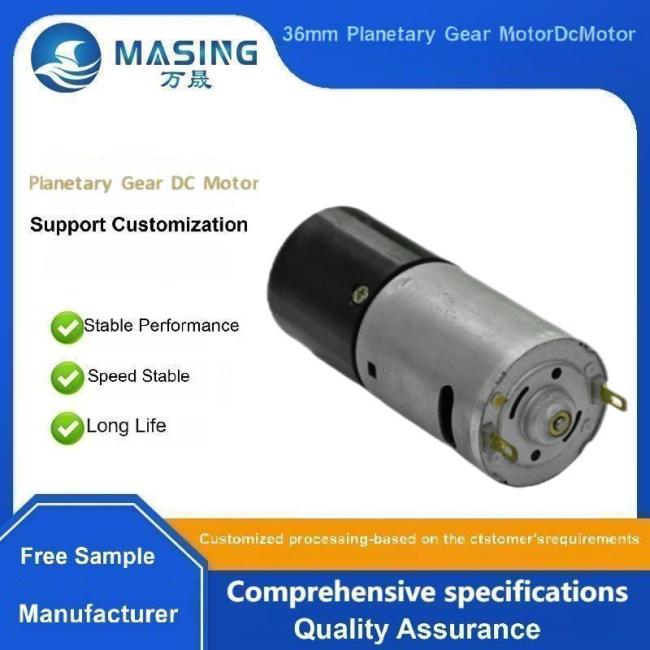

Product Images
Technical Specifications Table
| Gear grade | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Gear ratio of the reducer(K) | 3.7,5.2 | 14,19,27 | 54,71,100,139 | 189,264,369,515,721 |
| Gearbox Length(mm) | 27.5 | 35.5 | 43.5 | 51.5 |
| Rated Torque(kg.cm) | 3 | 6 | 9 | 17 |
| Stall Torque(kg.cm) | 6 | 10 | 20 | 35 |
| Efficiency(%) | 90% | 81% | 73% | 65% |
Performance Data
| Model number | Rated volt. | No load Speed | No load Current | Load Speed | Load Current | Stall Torque | Power | Current | Torque |
|---|---|---|---|---|---|---|---|---|---|
| MS-36PGM5550126000-5.2K | 12V | 1153 | 650 | 960 | 3000 | 1.2 | 11.8 | 10620 | 6.3 |
| MS-36PGM5550128000-4K | 12V | 571 | 900 | 465 | 3500 | 4 | 19.1 | 11550 | 19 |
| MS-36PGM5550126000-27K | 12V | 223 | 400 | 175 | 1600 | 4.2 | 7.5 | 5350 | 20 |
| MS-36PGM5550126000-51K | 12V | 117 | 680 | 85 | 2680 | 13 | 11.3 | 8350 | 60 |
| MS-36PGM5550126000-71K | 12V | 84 | 500 | 70 | 2400 | 14 | 10.1 | 8380 | 71 |
| MS-36PGM5550126000-99.5K | 12V | 60 | 450 | 48 | 2000 | 16 | 7.9 | 6300 | 78 |
| MS-36PGM5550124500-264K | 12V | 17 | 400 | 12 | 1500 | 28 | 3.4 | 2800 | 104 |
| MS-36PGM5550126000-721K | 12V | 8 | 400 | 6 | 3200 | 160 | 9.9 | 9000 | 630 |
| MS-36PGM5550246000-3.7K | 24V | 1621 | 500 | 1216 | 2000 | 1.5 | 18.7 | 8000 | 7.5 |
| MS-36PGM5550246000-5.2K | 24V | 1153 | 400 | 1016 | 1600 | 1.25 | 13 | 5380 | 8 |
Packaging and Delivery
- Packaging Details: Strong Carton 100pcs/box, or as you wish
- Port: Shenzhen/Guangzhou/Shanghai
- Selling Units: Single item
- Single Package Size: 37×27×24cm
- Single Gross Weight: 400g/450g
- Supply Ability: 100,000 Piece/Pieces per Month
Lead Time
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 5000 |
|---|---|---|---|
| Lead time (days) | 10 | 15 | To be negotiated |
Samples
- Maximum Order Quantity: 1 piece
- Sample Price: $20/piece or Negotiable
Applications
| Industry | Applications |
|---|---|
| Medical Equipment | Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer |
| Business Machines | Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen |
| Electric Powered Equipment | Electric toothbrush, Electric tool, Electric toy car, Electric curtain |
| Smart Home | Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock |
| Food and Beverage | Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers |
| Robotics | Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot |
Frequently Asked Questions
Q1: What's the price?
A1: We're a professional manufacturer. The exact price is based on clients' specifications, such as the speed, voltage etc.
Q2: What's the MOQ?
A2: We try to meet every client's requests. The MOQ is flexible if the product is not complicated to produce and we are not in a busy season. Kindly chat with our sales team to confirm it.
Q3: What's the delivery time?
A3: In the slack season, we can ensure delivery within one month. In the busy season, we need more than one month for large quantities. We can provide free overtime production for urgent orders.
Q4: Can you send some samples before the order?
A4: Yes, we must send the sample to confirm the quality with you first. UPS, TNT, FEDEX or DHL are all available.
Q5: Can you make our logo on the products?
A5: Certainly, logo customization is available as most of our products are customizable. It can be labeled on the motors.
Quality Assurance: Every product must pass quality inspection before shipment. We can provide samples for your testing requirements.
