12V Electric DC Motor RK-520 Carbon Brush For Toy Cars Automatic Machines And Small Appliances
12V Electric DC Motor Title:
12V Electric DC Motor RK-520 Carbon Brush For Toy Cars Automatic Machines And Small Appliances
12V Electric DC Motor Description:
-
Voltage range:DC 1.5V-24V
-
Rated Speed:1500-10000RPM
-
Rotating speed is constant and can be made as you required.
-
Size: 33*23mm,just 33mm,diamter 23mm length DC Micro motor
-
Suitable to small diameter, low noise and big toque application
-
Working temperature:-40~+60°c
-
Motor default direction:CW&CCW
-
Shaft diameter :2.0mm
-
Shaft Material:Stainless steel and carbon steel shafts
-
Shaft Type :Round ,D-Cut ,Flat ,a hole ,Knurled ect
-
Can be match with wheel, One shaft one wheel or one motor, one wheel
-
Brush type :Metal brush or carbon brush
-
Widely used in Soap Dispenser,Vacuum Cleaner Intelligent Robot Coffee Maker Air Purifier Micro DC Motor DIY Toy Science Project,robot,toy, Electric Razor, Medical Devices,pump ,Smart trash can,Fan,Cosmetic instrument, SMART HOME, Bell Fragrance Mixer Cd Dvd Vcr Player
-
We can provide samples for your test.
12V Electric DC Motor Key attributes:
12V Electric DC Motor Product Photo:
12V Electric DC Motor Product Spec:
RF-520C DC Brushed Motor Typical Applications
Soap Dispenser,Vacuum Cleaner Intelligent Robot Coffee Maker Air Purifier,DIY Toy Science Project,Fan, Electric Bicycle Lock, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot
Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.
| MODEL | VOLTAGE | NOLOAD | AT MAXIMUMEFFICIENCY | STALL | ||||||||
| OPERATING RANGE |
NOMNAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
| MS520CA-20214 | 4.0-7.0 | 6.0V | 5500 | 0.054 | 4730 | 0.326 | 2.20 | 22.4 | 1.087 | 15.7 | 160.0 | 2.0 |
| MS520CA-18262 | 9.0-13.0 | 12.0V | 9100 | 0.061 | 7917 | 0.404 | 3.19 | 32.5 | 2.639 | 24.5 | 250.0 | 2.7 |
Packaging and delivery:
Supply Ability:
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$1.5/piece
Certifications:

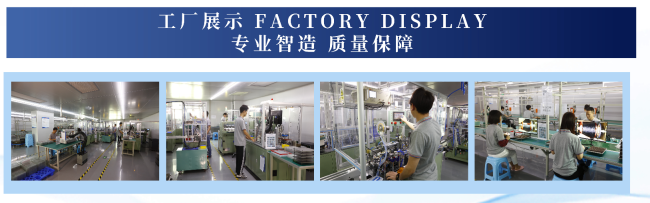

Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,
Security monitoring,5G communication,Smart home,Soap Dispenser,Vacuum Cleaner Intelligent Robot Coffee Maker Air Purifier
Q1:What's the price?
A1: We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q2:Can you send some samples before the order?
A2:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.
A3: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
Q4: What's the payment term?
A4: For small amount,we accept 100% payment via paypal.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit.And the rest must be paid before shipping
Q5: How to select a suitable motor?
A5: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q6: Do you have a customized service for your standard motors?
A6: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
