12 Volt Dc Motor High Torque Low Speed Electric Lock Motor For New Energy Vehicles
12 Volt Dc Motor High Torque Title:
High Speed Micro Dc Motor 12v 6v FF-180 Brush Dc Motor For Tattoo Machine Electric Shaver Appliances
12 Volt Dc Motor High Torque Description:
-
Rated Voltage range:DC1.2V-24V
-
Rated speed:2000RPM-25000RPM
-
Rotating speed is constant and can be made as you required.
-
Shaft size :φ2.0mm ,or C-cut
-
Motor Size: φ20.4mm*32.1mm, 20.4mm diamter ,32.1mm length DC mini motor
-
Motor of direction:CW&CCW
-
Shaft Type:D-cut ,Round ,doule -D-cut ,Knurling,with a hole ect
-
Working temperature:-40~+60°c
-
Brush type :Metal -brush /Carton-brush
-
Suitable to small diameter, low noise and big toque application
-
Can be match with wheel, One shaft one wheel or one motor, one wheel
-
Widely used in robot,toy, Electric Razor, Medical Devices,pump ,Smart trash can,Fan ,Automotive headlight regulator, electric pencil sharpener ,teeth cleaner
-
Energy Efficiency: This motor boasts an efficiency of 1 IE, indicating high energy conversion rates and reduced energy waste.
-
We can provide samples for your test.
12 Volt Dc Motor High Torque Key attributes:

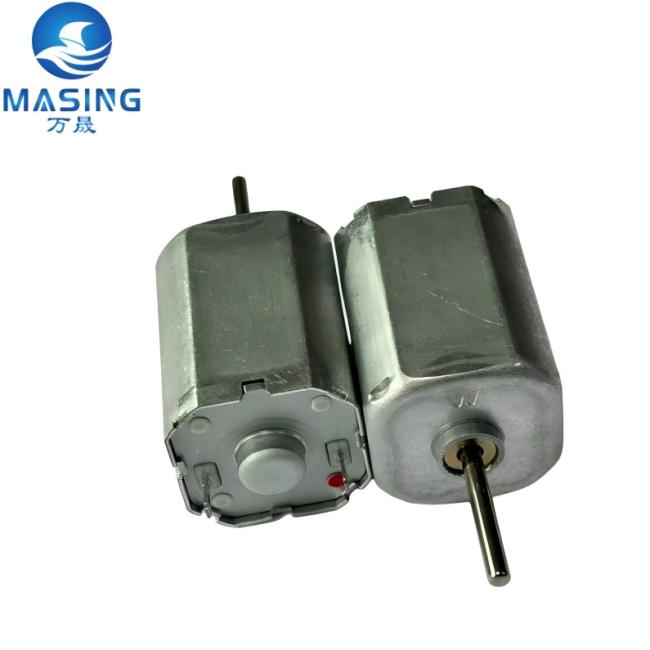

ff-180 Toothbrush Shaver Motor Product Photo:

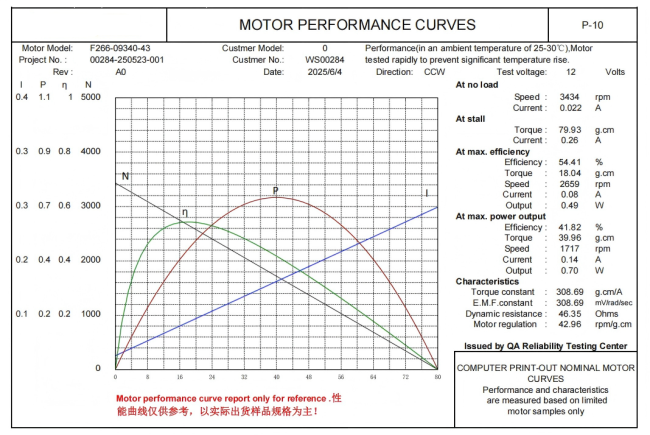

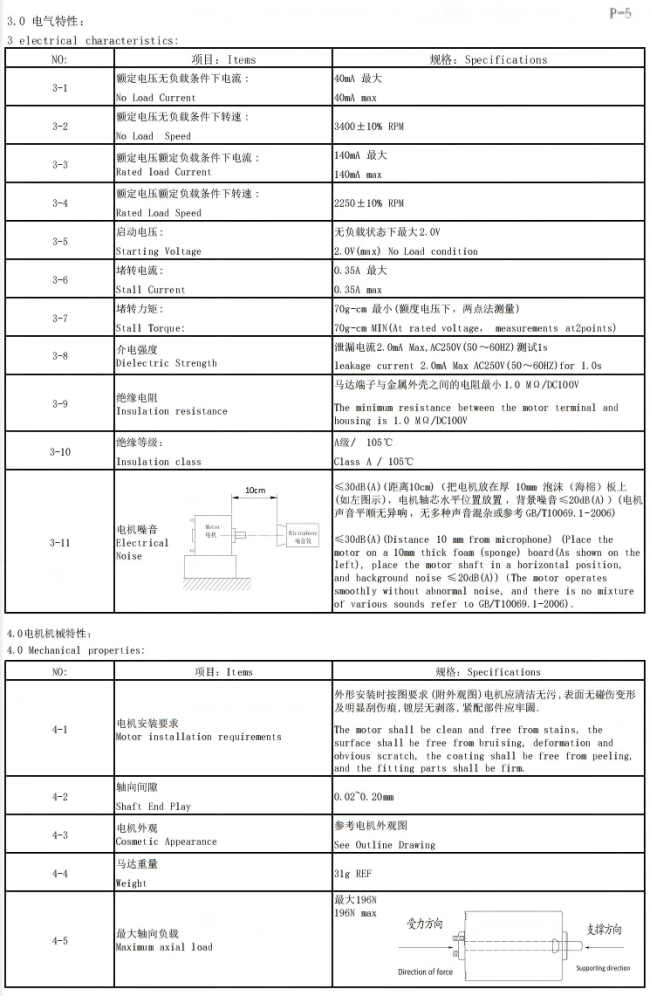

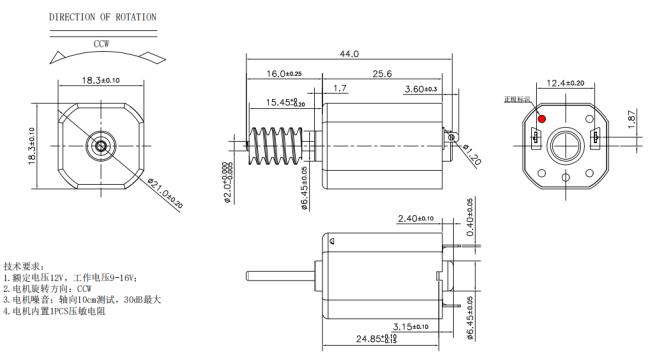

ff-180 Toothbrush Shaver Motor Product Spec:
FF-180 DC Motor Typical Applications
●Household AppliancesCD/DVD player,Camera,Bloodpresure meter,Camera,Ricecooker.
●Har Cae:Electricshaver.Tattoo Machine Electric Shaver Appliances
●Toy, Electric Razor, Medical Devices,pump ,Smart trash can,Fan
Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.
Packaging and delivery:
Supply Ability:
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$5/piece
Certifications:

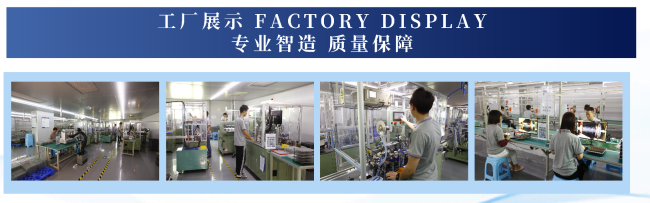

Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,
Security monitoring,5G communication,Smart home
A1: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
A2: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q3: Do you have an individual design service for motors?
A3: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q4:Can I have samples for testing first?
A4: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q5:How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
