Motor Manufacturer 40mm Geared 12v 24v Customized Speed Torque 520 Dc Gear Motor For For Smart Machines
Price:
Negotiable
MOQ:
1000
Delivery Time:
3-5 work weeks
Brand:
Masing Motor
Product Description
Motor Manufacturer 40mm Geared 12v 24v Customized Speed Torque 520 Dc Gear Motor For Smart Machines
Product Overview
High-performance 40mm DC geared motor offering customizable speed and torque for various smart machine applications.
- Rated Voltage: DC 3V-24V
- Rated Speed: 2rpm to 500rpm (Customizable)
- High Efficiency: 85%-55%
- Direction of Rotation: CW/CCW available
- Gearbox Shaft Diameter: φ6mm or Customized
- Gearbox Shaft Type: M5/M6/Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Customizable)
- Brush Type: Metal brush or Carbon brush
- Gearbox Diameter: φ40mm
- Gearbox Material: Plastic gearbox
- Accessories: Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)
- Gear Material: Metal, Plastic, Powder metallurgy, Copper etc
- Rated Torque: 0.1kgf.cm-10kgf.cm
- Free samples available for testing
- Every product passes quality inspection
Technical Specifications
| Speed (RPM) | 3rpm-500rpm |
| Rated Voltage | DC 3V-24V |
| Efficiency | 55%-85% |
| Warranty | Others |
| Place of Origin | Guangdong, China |
| Brand Name | Masing Motor |
| Model Number | MS-GM40B520 |
| Use | Smart home, Smart toilet seat, Home Appliance, robot, vending machine, medical device |
| Type | Geared DC motor 24V |
| Torque | 0.1kgf.cm-10kgf.cm |
| Construction | Permanent Magnet |
| Commutation | Brush |
| Protect Feature | Totally Enclosed |
| Direction of Rotation | CW & CCW available |
| Gearbox Material | Plastic |
| Keywords | High Torque 60 Rpm 12V DC Geared Motor |
| Gearbox Length | 10.4mm |
| Gearbox Diameter | 40mm |
| Gearbox Ratio | 1:5 to 1:390 |
| MOQ | 1000 Pcs |
| Shaft | M5/M6/D-cut or Round or Flat or with a hole (Customer's Request) |
| Shaft Material | Carbon Steel or Stainless Steel |
| Certification | CE, ROHS, ISO, 16949 |

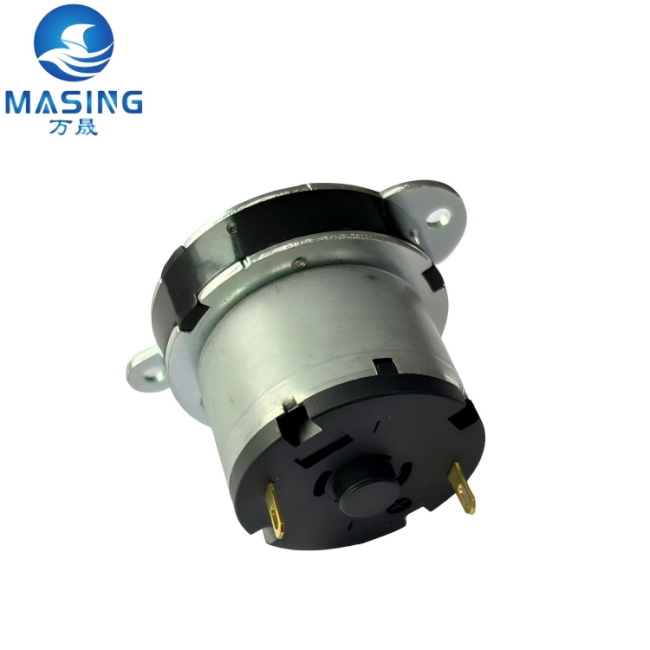

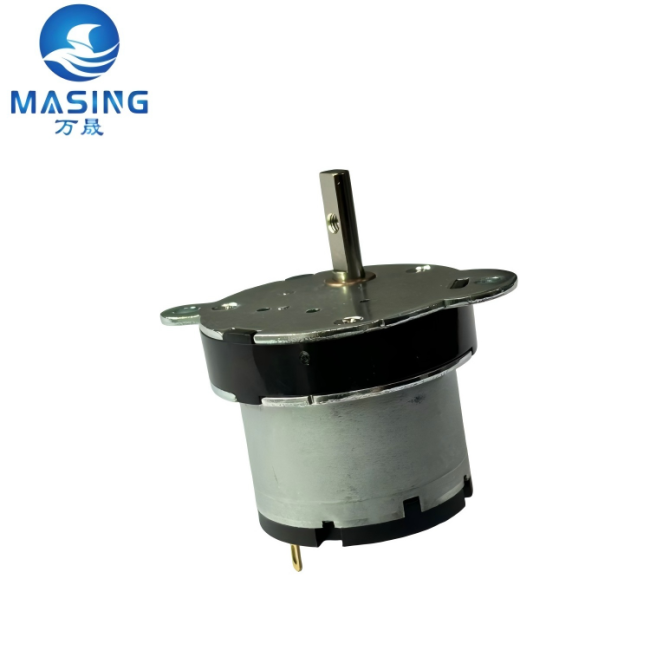

Product Images

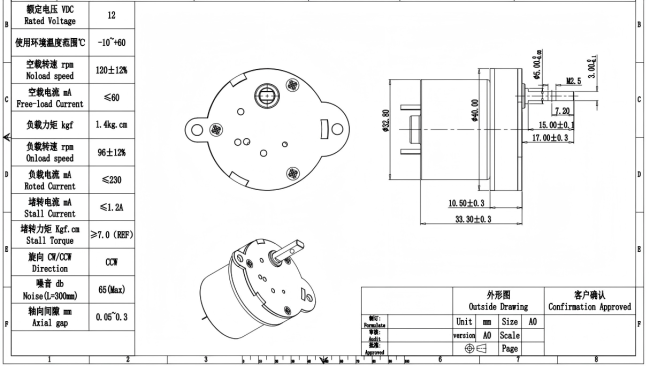

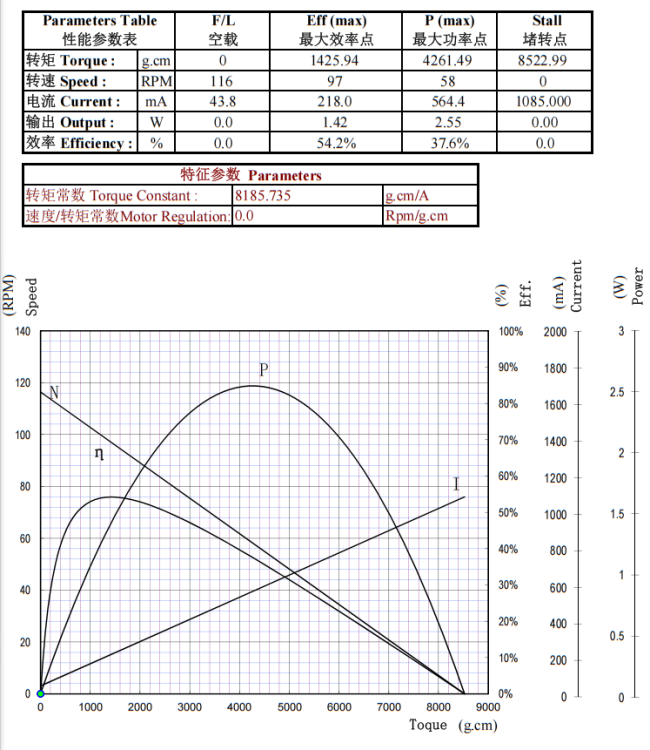

Product Specifications
MS-GM40B520 12V/24V DC Spur Gear Motor Typical Applications: Smart home, Smart toilet seat, Home Appliance, robot, vending machine, medical device
Voltage, rated torque, speed, current, power and shaft size can be customized as requirement.
Packaging & Delivery
| Packaging Details | Strong Carton 80pcs/box, or as you wish |
| Port | Shenzhen/Guangzhou/Shanghai |
| Selling Units | Single item |
| Single Package Size | 37×27×24cm |
| Single Gross Weight | About 80-100g |
Supply Capacity
Supply Ability: 100,000 Piece/Pieces per Month
Lead Time
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
|---|---|---|---|
| Lead Time (days) | 10 | 15 | To be negotiated |
Samples
| Maximum Order Quantity | 1 piece |
| Sample Price | $10/piece |
Certifications
Factory Overview
Product Classification
Applications
Driverless, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home, Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Frequently Asked Questions
Q1: How to select a suitable motor?
A1: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q2: Do you have a customized service for your standard motors?
A2: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q3: Do you have an individual design service for motors?
A3: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.
Q4: Can I have samples for testing first?
A4: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q5: How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
