1024 N20 Flipped Gear Micro DC Motor 5V/6V/12V Brushed M3 Shaft Home Appliance Smart-Door-Lock & Medical Robot
N20 Gear Motor M3 M4 Shaft Title:
1024 N20 Flipped Gear Micro DC Motor 5V/6V/12V Brushed M3 Shaft Home Appliance Smart-Door-Lock and Medical Robot and Mechanical Arm
N20 Gear Motor M3 M4 Shaft Description:
-
Operating voltage range:9.0V-16.0V DC Ratedd voltage:12.0V
-
Operating Temperature Range:-40℃-+85℃
-
Storage temperature Range:-40℃-+105℃
-
Insulation Resistance:B CLASS
-
Gearbox materials :Copper or steel or customized
-
Gearbox size :φ12mm*24mm
-
Shaft diameter :φ3mm
-
Shaft type:D-cut ,Flat ,round ,M3,M4 or customized
-
Gear Ratio:1:165 or customized
-
Life test:Life expectancy is more than 100000 cycles
-
Noise :50DB Max ,Rated voltage & no load operation. Measured with following condition.Background noise: 32db max.
-
High Efficiency and Performance: 1.5V- 12V DC Spur Geared Motor offers an efficiency of 70%
-
Low Noise and High Torque: With a torque of 0.1-2kg.cm, this motor operates at a low noise level, making it suitable for applications requiring minimal noise pollution, such as fan and cosmetic instrument use.
-
Customizable Options: We offer various diameter options (12mm, 13mm, 14mm, etc.) and a color that can be customized according to the user's request, allowing for flexibility in design and integration.
-
We can provide samples for testing
-
Every product before shipped is 100% inspected for quality
N20 Gear Motor M3 M4 Shaft Key attributes:
Temperature Range

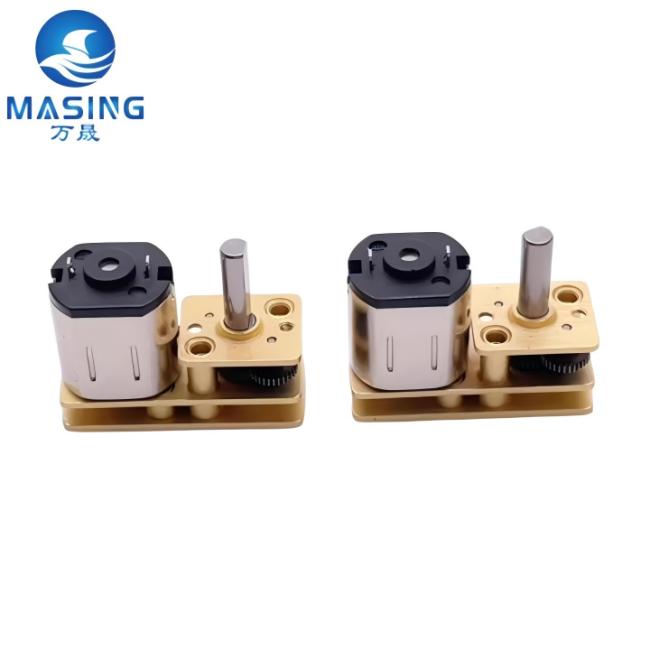

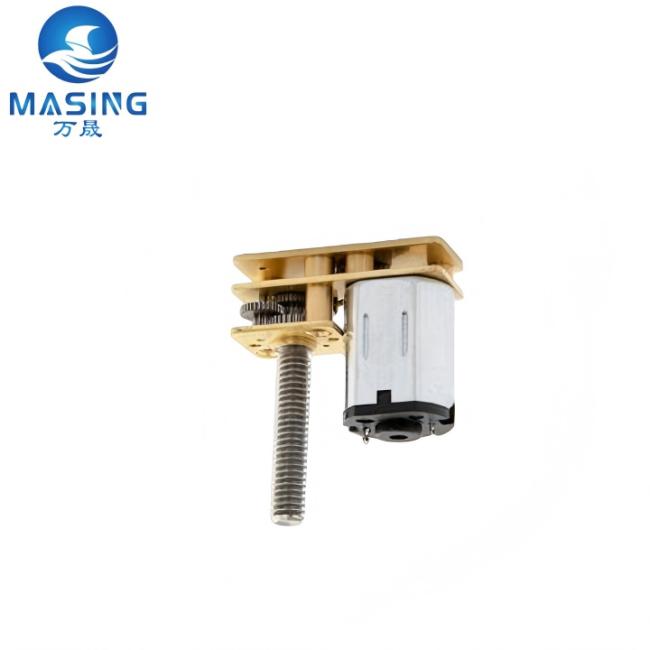

N20 Gear Motor M3 M4 Shaft Product Photo:
N20 Gear Motor M3 M4 Shaft Product Spec:
N20 DC Gear Motor Typical Applications:
Home Appliance, robot,door lock,camera,medcial device,Electronic Door Lock,Smart Home ,Appliance Smart Robot ,Electric Toys,3D printing,Smart cabinet locks
Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.
GM1224-N20-3.0V
Packaging and delivery:
Supply Ability:
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$10/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home,Locks,Car, Electric Bicycle, Home Appliance, Cosmetic instrument
A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production→Cargo ready → Balance/delivery → Further cooperation.
Q2: Do you manufacture products yourself ?
A2: Yes,we manufacture products by ourself.we have our own R&D team and industral park,we control all the design and producing procedures ourselves,so just send us inquiry,and we will do allthe rest things for you.
Q3: Do you own patents ?
A3: Yes,we own patents on all our products,so don't worry,you won't infringe any patents if you sell our products
Q4: Do you accept private label?What's the MOQ?
A4: Yes,we accept private label,MOQ is depends on which model,some is 1000pcs,some is 500pcs.
Q5:What testing certificates do you have?
A5: We have CE,ROHS,ISO9001,ISO14000,IATF16949 certificates,we will also help
to make any other testings if you need.
