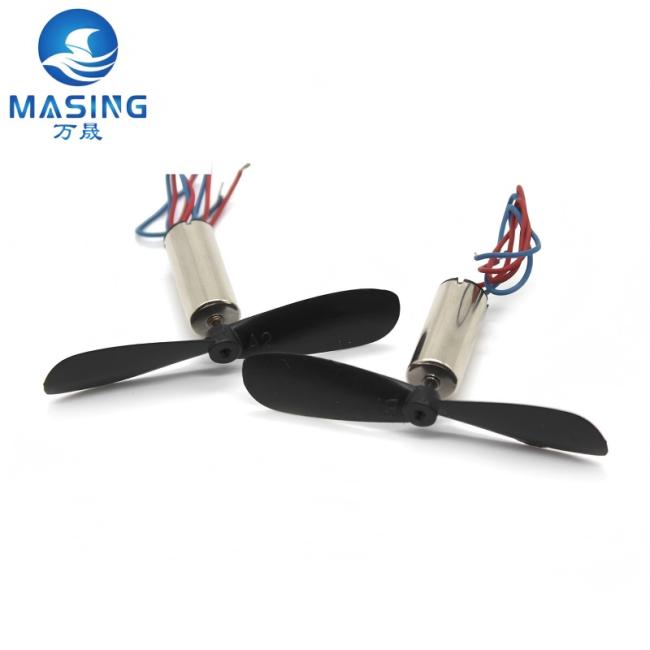

DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys
0720 Micro Coreless Motor Title:
DC 3.7V-4.2V 0720 Micro Coreless Motor With Propeller Torque High Speed Motor Small DC Motor For RC Drone And Toys
0720 Micro Coreless Motor Description:
-
Motor model :MS0720 Micro DC Coreless Motor 3.7v
-
Voltage range:DC1.5V-5V
-
Speed:Customized 5000-40000RPM
-
Rotating speed is constant and can be made as you required.
-
Motor default direction:CW&CCW
-
Motor Size: φ07*20mm,7mm,diameter, 20mm length mini motor
-
Motor shaft size :φ1.0mm
-
Brush type :Metal Brush
-
Number ofpolepairs:1
-
Number of commutator segments:5
Weight of motor:6.9g
-
The vibrating wheel attached can provide additional functions.
-
Suitable to small diameter, low noise and big toque application
-
Widely used in Electric:Racing Drone ,toys ,DIY Drone toothbrush, massager, children's toys,Space model robot,lock. toy,Model trains ,Robots ,toy ,Vibration Instrument,Adult products
-
We can provide samples for your test.
0720 Micro Coreless Motor Key attributes:

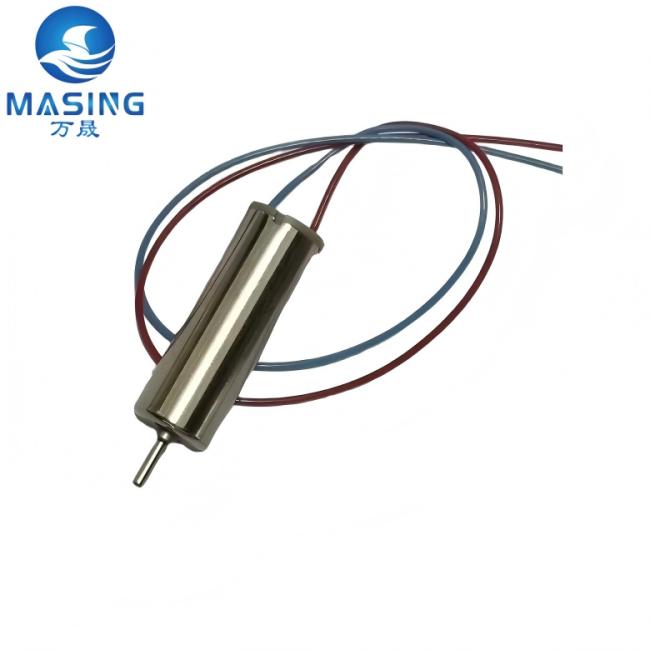

0720 Micro Coreless Motor Product Photo:

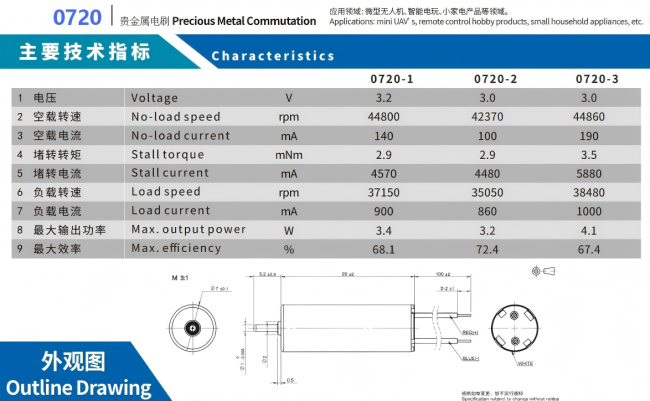

0720 Micro Coreless Motor Product Spec:
0720 Mini Coreless DC Motor Typical Applications
●Toys,Massager,Beauty apparatus,Home Appliance, Cosmetic Instrument, SMART HOME, Robot,Home Appliance,
Cosmetic Instrument, SMART HOME, Robot,Racing Drone ,toys ,DIY Drone,mini UAVs,remote control hobby products,smallhousehold appliances,etc
Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.
| Model of Motor | 037180 | 060250 | 050100 | 120100 | |
| Motor Data at nominal voltage | |||||
| Nominal voltage | V | 3.7 | 6 | 5 | 12 |
| No load speed | rpm | 18000 | 25000 | 10000 | 10000 |
| No load current | mA | 50 | 40 | 30 | 10 |
| Nominal speed | rpm | 16800 | 23700 | 7700 | 7500 |
| Nominal torque/max.continuous torque | g.cm | 5 | 4 | 8 | 10 |
| Nominal current/max.continuous current | A | 0.3 | 0.23 | 0.2 | 0.1 |
| Stall torque | g.cm | 32.14 | 76.92 | 34.78 | 40 |
| Stall current | A | 3.1 | 2.95 | 0.7 | 0.326 |
| Max.efficiency | % | 65 | 85 | 70 | 75 |
| Terminal resistance | Ω | 1.2 | 2.03 | 7.16 | 36.8 |
| Terminal inductance | Mh | 32.6 | 28.8 | 58.9 | 113.6 |
| Torque constant | g.cm/A | 10.36 | 26.07 | 49.68 | 122.7 |
| Speed constant | rpmN | 4864 | 4166 | 2000 | 833 |
| Speed/torque gradient | rpm/g.cm | ||||
| Mechanical time constant | ms | 15.46 | 4.03 | 4.01 | 3.38 |
| Rotor inertia | gcm² | 0.144 | 0.144 | 0.144 | 0.144 |
| Other specifications | |||||
| Number of pole pairs | 1 | ||||
| Number of commutator segments | 5 | ||||
| Weight of motor | g | 6.9 | |||
Packaging and delivery:
Supply Ability:
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
$1.5/piece
Certifications:

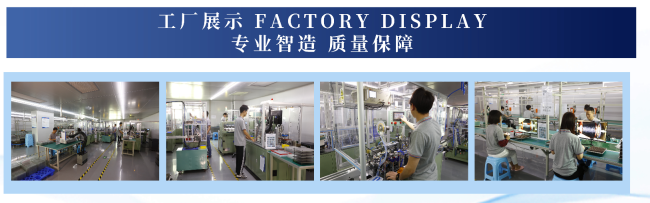

Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,
Security monitoring,5G communication,Smart home
Q1:What's the price?
A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q2:What's the MOQ?
A2:We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
A3: At the first we have an schedule,the earlier you place order,the fater we finish the production.
In the slack season,we can make sure the delivery time is by one month.
In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.
A4:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.
Q5: Can you make our logo on the products?
A5:Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
A6: For small amount,we accept 100% payment via paypal.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit.And the rest must be paid before shipping.
