China factory price bearing Motorcycle Spare Parts & Accessories bearings for TVS,HONDA,SUZUKI,KAWASAKI & scooter 6201 6202 6203 6204 6205 6206 6207 6208 6209 6210 6211 6212 6213 6214 6215 6216/2RS
Ningbo Kent bearing factory is specialized in producing high-quality steel bearing and advanced processing technology. Our bearings are high precision, low friction, low noise, and strong wear resistance. Suitable for motors, automobiles, motorcycles, machinery, reducers, and other equipment. We provide a full range of models with stable quality, timely delivery.
Our bearing advantages suitable for motorcycle:
· Double-sided 2RSH contact seals
· Premium NBR rubber for superior oil & water resistance
· Excellent dust/moisture exclusion, ideal for motor wheel/engine
· Lifetime lubricated, maintenance-free for harsh riding conditions.
Bearing parameter
Bearing specification 62 Series
| Basic Load Rating KN | Maximum Run Out Speed | ||||||||
| Bearing NO. | ID(mm)(inch) | OD(mm)(inch) | Width(mm)(inch) | Radius(mm)(inch) | Dynamic(C) | Static(C0) | Grease r/min | Oil r/min | Weight Kg/pc |
| 627 | 7 .2756 | 22 .8661 | 7 .2756 |
0.3 .012 |
3.35 | 1.4 | 26000 | 34000 | 0.013 |
| 628 | 8 .3149 | 24 .9448 | 8 .3149 | 0.3 .012 | 4 | 1.59 | 24000 | 32000 | 0.017 |
| 629 | 9 .3543 | 26 1.0236 | 8 .3149 | 0.3 .012 | 4.55 | 1.96 | 22000 | 30000 | 0.02 |
| 6200 | 10 .3937 | 30 1.1811 | 9 .3543 | 0.6 .024 | 5.1 | 2.39 | 19000 | 26000 | 0.032 |
| 6201 | 12 .4724 | 32 1.2598 | 10 .3937 | 0.6 .024 | 6.1 | 2.75 | 18000 | 24000 | 0.037 |
| 6202 | 15 .5906 | 35 1.3780 | 11 .4331 | 0.6 .024 | 7.75 | 3.6 | 17000 | 22000 | 0.045 |
| 6203 | 17 .6693 | 40 1.5748 | 12 .4724 | 0.6 .024 | 9.6 | 4.6 | 16000 | 20000 | 0.066 |
| 6204 | 20 .7874 | 47 1.8504 | 14 .5512 | 1.0 .039 | 12.8 | 6.65 | 14000 | 18000 | 0.106 |
| 6205 | 25 .9843 | 52 2.0470 | 15 .5906 | 1.0 .039 | 14 | 7.85 | 12000 | 16000 | 0.128 |
| 6206 | 30 1.1811 | 62 2.4409 | 16 .6299 | 1.0 .039 | 19.5 | 11.3 | 10000 | 13000 | 0.199 |
| 6207 | 35 1.3780 | 72 2.8346 | 17 .6693 | 1.1 .043 | 25.7 | 15.3 | 8800 | 10000 | 0.287 |
| 6208 | 40 1.5748 | 80 3.1496 | 18 .7087 | 1.1 .043 | 29.1 | 17.8 | 7700 | 9200 | 0.367 |
| 6209 | 45 1.7717 | 85 3.3465 | 19 .7480 | 1.1 .043 | 32.5 | 20.4 | 6800 | 8200 | 0.416 |
| 6210 | 50 1.9685 | 90 3.5433 | 20 .7874 | 1.1 .043 | 35 | 23.2 | 6100 | 7300 | 0.462 |
| 6211 | 55 2.1654 | 100 3.9370 | 21 .8268 | 1.5 .059 | 43.5 | 29.2 | 5500 | 6600 | 0.602 |
| 6212 | 60 2.3622 | 110 4.3307 | 22 .8661 | 1.5 .059 | 52.5 | 36 | 5000 | 6000 | 0.789 |
| 6213 | 65 2.5591 | 120 4.7244 | 23 .9055 | 1.5 .059 | 58.5 | 40.5 | 4800 | 5800 | 0.99 |
| 6214 | 70 2.7559 | 125 4.9213 | 24 .9449 | 1.5 .059 | 63.7 | 45 | 4600 | 5600 | 1.1 |
| 6215 | 75 2.9528 | 130 5.1181 | 25 .9843 | 1.5 .059 | 68.9 | 49 | 4400 | 5400 | 1.2 |
| 6216 | 80 3.1496 | 140 5.5118 | 26 1.0236 | 2.0 .078 | 72.5 | 53 | 4200 | 5300 | 1.4 |

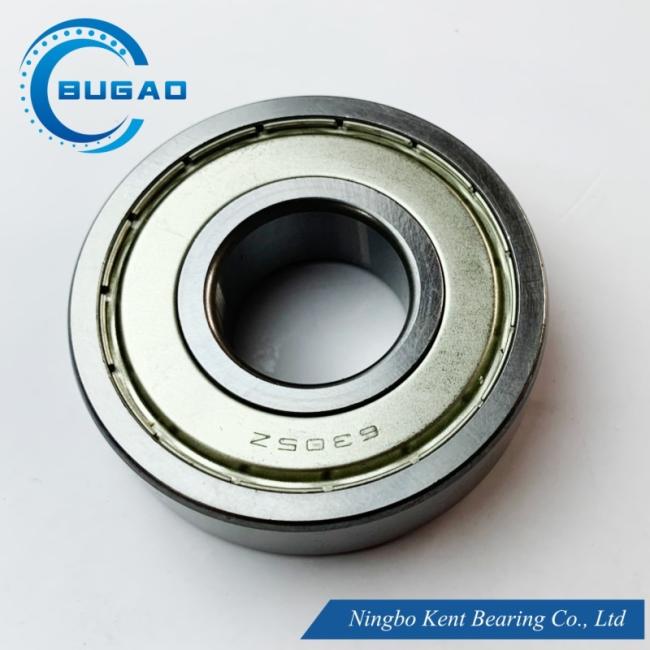

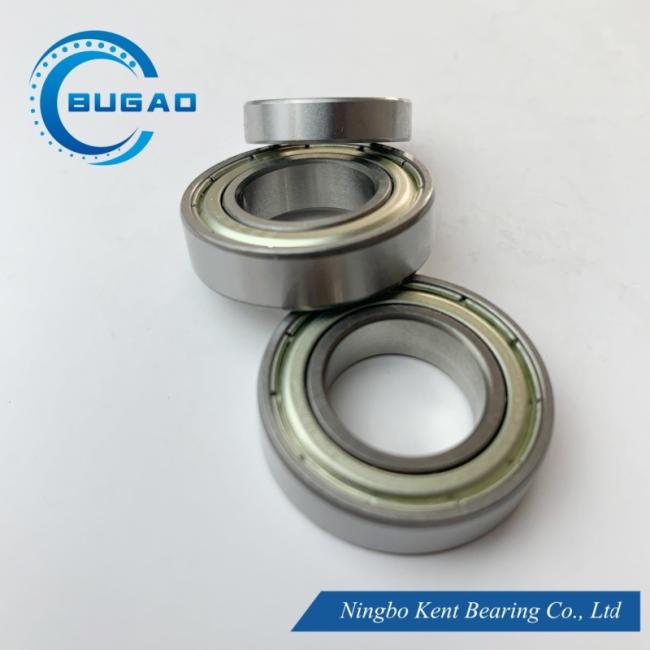

product picture

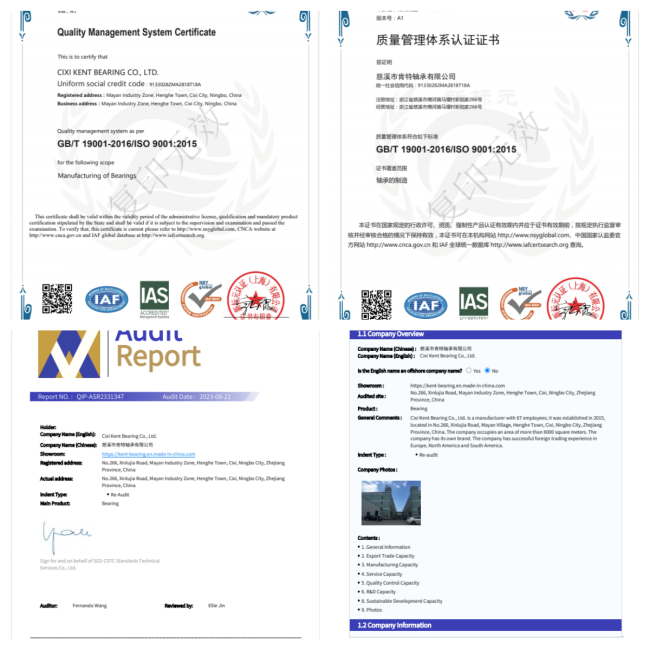

Certificate
Packing
Small white/color box-carton-pallet
Industrial packing/ bulk per carton-pallet
Suitable application:
motorcycle/ electric vehicle
small motor/ fan/ pump/ household
agricultural machinery/ tractor/ harvester
automotive aftermarket/ replacement part
Infrastructure/ construction machinery
Toys/ fitness equipment/ hardware tools
FAQ
Are your bearings high quality?
A: Yes. All bearings adopt high-quality bearing steel, high hardness, wear resistance, long service life, stable performance and strict quality inspection.
What seal types are available?
A: We provide open type, Z metal shield, 2Z double metal shield, RS rubber seal, 2RS double rubber seal for options.
Is this bearing low noise?
A: Adopts fine grinding process, low noise, low vibration, suitable for motors, fans and high-speed running equipment.
