ISO9001 certificate factory provide good price ball bearings for Fans, pumps, drills, grinders, compressors P0 P6 C3 clearance customized packing
Price:
0.1~0.2
MOQ:
1000
Delivery Time:
about 2~3weeks
Brand:
BUGAO
Product Description
Ningbo KENT bearing Co.,Ltd is located in Cixi Ningbo, Zhejiang China. We are ball bearings factory manufacturer and wholesaler specialized in producing bearings for more than 20 years.
Deep groove ball bearings are the most widely used rolling bearings, featuring simple structure, high versatility and reliable performance. They are mainly designed to bear radial loads, and can also withstand moderate axial loads in both directions.
With low friction coefficient, high limiting speed and excellent running stability, these bearings support high-speed rotation with low noise and vibration. The open, sealed and shielded types are available to adapt to dusty, humid and ordinary working environments.
Widely applied in motors, motorcycles, automobiles, general machinery, agricultural equipment and transmission parts, our deep groove ball bearings adopt high-quality steel materials, precise machining and strict quality inspection to ensure long service life and stable operation.
A ball bearing is a type of rolling-element bearing equipped with precision steel balls between the inner ring and outer ring.
By adopting rolling friction instead of sliding friction, it effectively lowers operating resistance, heat generation and mechanical wear. It can bear combined radial and light axial loads, ensuring stable rotation and high running accuracy.
Various types are available, including deep groove ball bearings, angular contact ball bearings and miniature ball bearings, serving automotive, motorcycle, automation, electric tools, medical equipement, industrial, agriculture and mechanical transmission fields.
Ball bearing specifications as below:
| Basic Load Rating KN | Maximum Run Out Speed | ||||||||
| Bearing NO. | ID(mm)(inch) | OD(mm)(inch) | Width(mm)(inch) | Radius(mm)(inch) | Dynamic(C) | Static(C0) | Grease r/min | Oil r/min | Weight Kg/pc |
| 604 | 4 .1575 | 12 .4724 | 4 .1575 | 0.2 .008 | 0.97 | 0.36 | 43000 | 51000 | 0.002 |
| 605 | 5 .1969 | 14 .5512 | 5 .1969 | 0.2 .008 | 1.33 | 0.505 | 39000 | 46000 | 0.0035 |
| 606 | 6 .2362 | 17 .6693 | 6 .2362 | 0.3 .012 | 2.19 | 0.865 | 30000 | 38000 |
0.006 |
| 607 | 7 .2756 | 19 .7480 | 6 .2362 | 0.3 .012 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
| 608 | 8 .3149 | 22 .8661 | 7 .2756 | 0.3 .012 | 3.35 | 1.4 | 26000 | 34000 |
0.012 |
| 609 | 9 .3543 | 24 .9449 | 7 .2756 | 0.3 .012 | 3.4 | 1.45 | 22000 | 30000 | 0.014 |
| 6000 | 10 .3937 | 26 1.0236 | 8 .3150 | 0.3 .012 | 4.55 | 1.96 | 20000 | 28000 |
0.019 |
| 6001 | 12 .4724 | 28 1.1024 | 8 .3150 | 0.3 .012 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
| 6002 | 15 .5906 | 32 1.2598 | 9 .3543 | 0.3 .012 | 5.6 | 2.84 | 18000 | 24000 |
0.03 |
| 6003 | 17 .6693 | 35 1.3780 | 10 .3937 | 0.3 .012 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
| 6004 | 20 .7874 | 42 1.6535 | 12 .4724 | 0.6 .024 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
| 6005 | 25 .9843 | 47 1.8504 | 12 .4724 | 0.6 .024 | 10.1 | 5.85 | 13000 | 17000 | 0.08 |
| 6006 | 30 1.1811 | 55 2.1654 | 13 .5118 | 1.0 .039 | 13.2 |
8.3 |
12000 | 15000 | 0.116 |
| 6007 | 35 1.3780 | 62 2.4409 | 14 .5512 | 1.0 .039 | 16 | 10.3 | 10000 | 13000 | 0.155 |
| 6008 | 40 1.5748 | 68 2.6772 | 15 .5906 | 1.0 .039 | 16.8 | 11.5 | 8000 | 11000 | 0.185 |
| 6009 | 45 1.7717 | 75 2.9528 | 16 .6299 | 1.0 .039 | 21 | 15.1 | 7200 | 9000 | 0.231 |
| 6010 | 50 1.9685 | 80 3.1496 | 16 .6299 | 1.0 .039 | 218 | 16.6 | 6400 | 7800 | 0.25 |
| 6011 | 55 2.1654 | 90 3.5433 | 18 .7087 | 1.1 .043 | 28.3 | 21.2 | 5700 | 7000 | 0.362 |
| 6012 | 60 2.3622 | 95 3.7402 | 18 .7087 | 1.1 .043 | 29.5 | 23.2 | 5000 | 6300 | 0.385 |
| 6013 | 65 2.9551 | 100 3.9370 | 18 .7087 | 1.1 .043 | 31.9 | 25 | 4800 | 6100 | 0.44 |
| 6014 | 70 2.7559 | 110 4.3307 | 20 .7874 | 1.1 .043 | 39.7 | 31 | 4600 | 5800 | 0.6 |
| 6015 | 75 2.9528 | 115 4.5276 | 20 .7874 | 1.1 .043 | 416 | 33.5 | 4400 | 5600 | 0.64 |
| 6016 | 80 3.1496 | 125 4.9213 | 22 .8681 | 1.1 .043 | 47.5 | 10 | 4300 | 5500 | 0.854 |
| 6017 | 85 3.3465 | 130 5.1181 | 22 .8681 | 1.1 .043 | 49.5 | 43 | 4200 | 5300 | 0.89 |
| 6018 | 90 3.5433 | 140 5.5118 | 24 .9449 | 1.5 .059 | 58 | 49.5 | 4000 | 5100 | 1.02 |
The advantage of deep ball bearing:
Smooth operation
Stable rotation
Optimized clearance
Tightly sealed
Shock-proof & bufferable
Long-cycle service
Low vibration
Heavy-load adaptive
Cold & heat resistan
Oil-retaining design

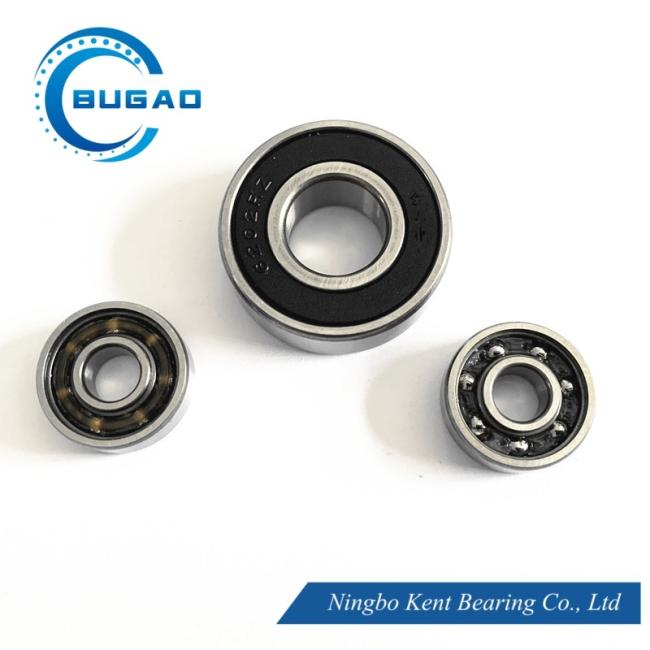

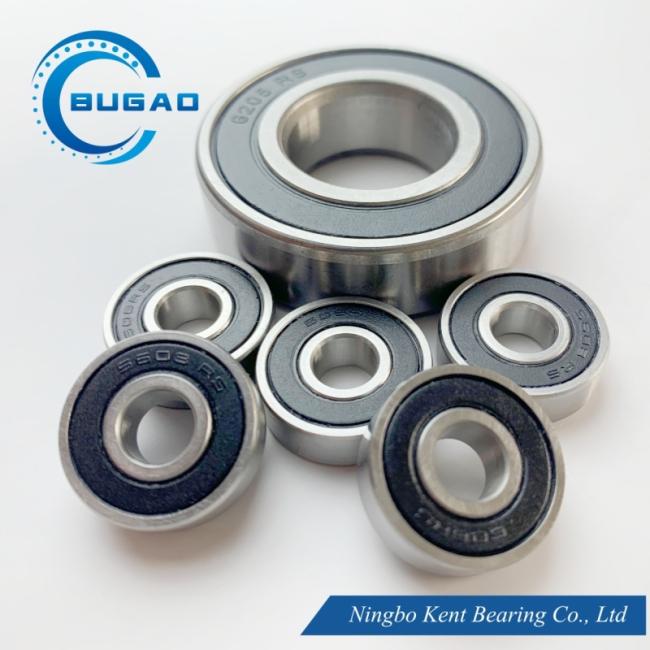

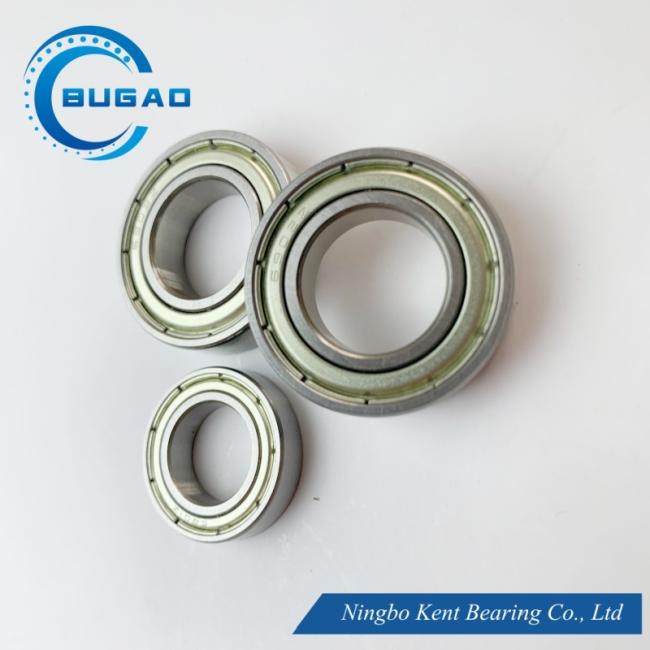

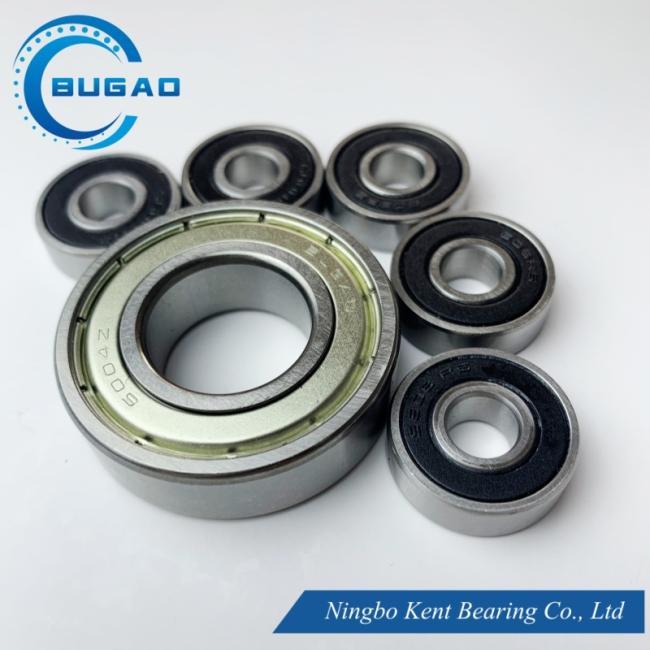

Product Picture

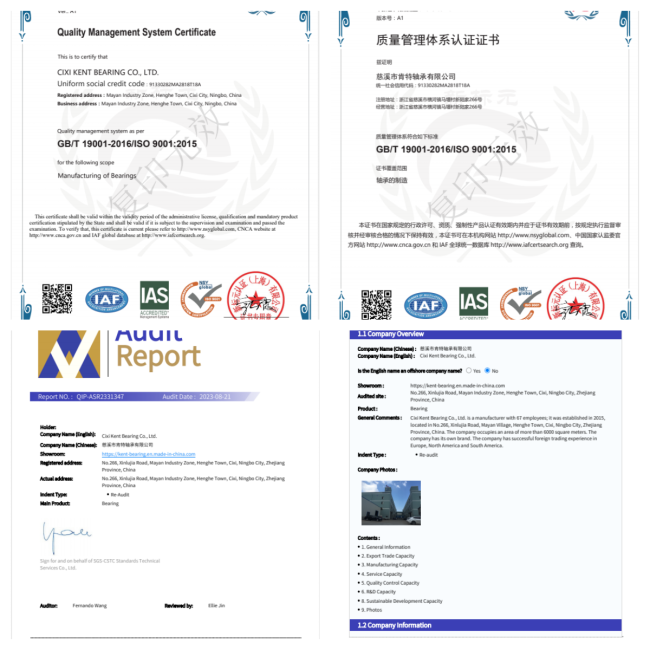

Company Certificate
Packing Information
Small white box/ color box-carton-pallet
Industrial packing-pallet
Precision of the deep ball bearing: P0 P6 P5 P4, for different equipment and machine choose.
Clearance of the deep ball bearing: C2 C0 C3 C4, for different equipment and machine choose.
Vibration & noise: ZV1 ZV2 ZV3 ZV4, for different equipment and machine choose.
Designed with reasonable internal structure, this bearing features low vibration and flexible operation. Excellent load capacity fits various mechanical equipment, motorcycle and automotive assembly scenarios. Strict production control guarantees stable quality and reliable performance.
FAQ
What seal types are available?
A: We provide open type, Z metal shield, 2Z double metal shield, RS rubber seal, 2RS double rubber seal for options
Do you have C3 C4 clearance bearings?
A: Yes, standard clearance, C3, C4 high temperature and high speed clearance are all available.
Is your company a trading company or a factory?
A: We are bearing factory located in Yuyao, Ningbo, Zhejiang China, our factory specialized in manufacturing motor bearings more than 20 years.
What types of seals are available?
A: Available seal types include Open, Z, ZZ, RZ, 2RZ, RS, and 2RS.
What are the available precision ratings?
A: Available precision ratings include P0, P6, P5, and P4.
Do you provide samples ? it is free charge?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Where is your product used?
Our bearing are widely used for: farm machines, pumps, fan motors. motorcycles, auto parts, knitting machines, wheels...
