Perforated acoustic panels have excellent noise reduction and sound absorption performance

through the synergistic effect of multiple sound absorption methods.

The sound absorption coefficient is not affected by the environment and time,

and the sound absorption performance is stable in the long term.

It is widely used in places with high requirements for acoustic environment ,

such as cinemas , studios , classroom , office and conference rooms.

Features

1. Excellent sound absorption performance

2. Strong decorative property

3. Easy to install

4. The tried and tested form for everything

5. Deal for all materials and surfaces

6. Eco-friendly and fireproof

Product Introduction

Edge Treatment


Hole Option

1.  Square hole  2.  Rhombic hole

Finish Option

Available in 16 solid colors and 32 wood grain laminate color .

The specific color selection is selected from the Brotex color card .

NOTE : veneered elements made of natural wood which are naturally grown wood and

are inherently subject-related variations in color and structure even veneers within a tribe may be have some differences ,

therefore these elements have to be sorted harmoniously on their structure and color before the site job wall or ceiling mounting .

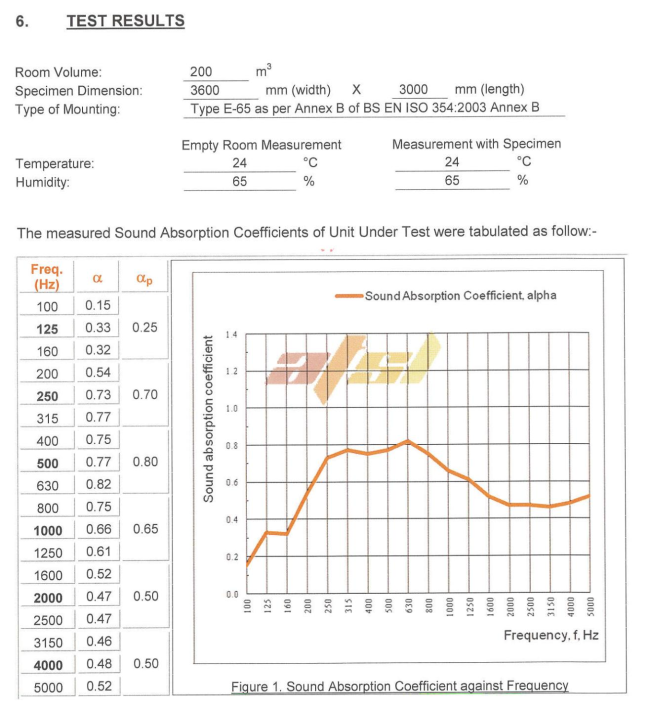

NRC Test Report

The measurements were carried out according to BS EN ISO 354 : 2003 Acoustics Measurement of Sound Absorption in a reverberation room

(equivalent to GB/T 20247-2006) in the Acoustic Testing Services Limited .

Eco-Friendly Test

Eco-Friendly Test = E1 with reference to EN 717-1:2004 , analysis was performed by UV-Vis .

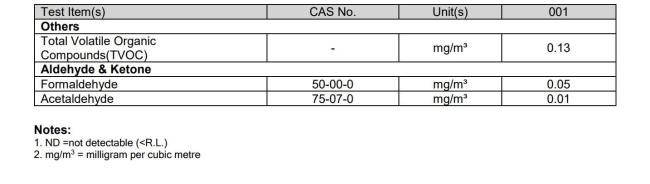

TVOC Test with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022

Fireproof Test

Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .

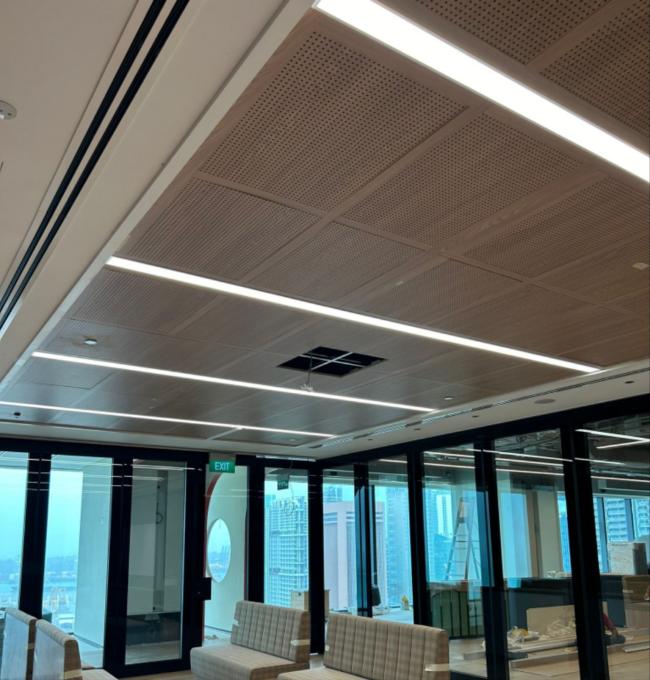

Project Case
