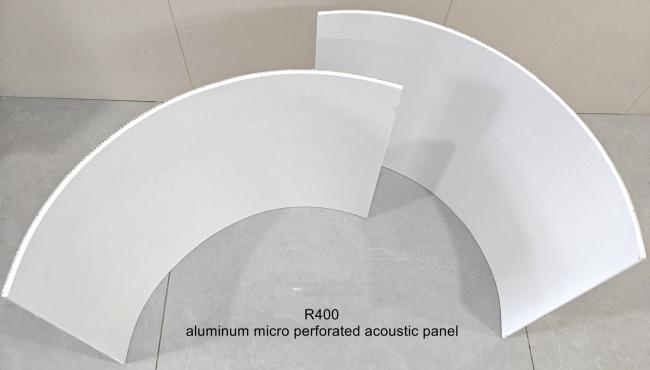

Curved Aluminium Acoustic Panels Micro Composite Acoustical Ceiling Panels Tile 2x6
Curved Suspended Aluminum Micro Composite Panels Ceiling Tile 2'x6' Acoustic Perforated Board
Metal Baffle Ceilings offer an abstract , open sequential design that enhances the ambiance of any space.
It create an appealing aesthetic by providing visibility of the surrounding area and the concrete ceiling above .
These ceilings are ideal for upgrading a space's design or for remedial installations beneath existing concrete ceilings .
Aluminum baffle ceilings are particulary popular due to their elegant look , cost effectiveness and sustainable design .
They conbine cutting-edge technology with timeless style , ensuring longevity .
When made from aluminum or galvanized steel , the ceilings offfer a unique , personalized aesthetic .
Additionally , it provide excellent tensile strength , withstanding extreme temperatures and warm air , making them both functional and versatile .
And the metal baffle ceilings can be tailored to meet any design or functional requirement , providing both beauty and durability
| Product | Aluminum micro perforated acoustic panel |
| Hole | Standard micro-hole |
| Pattern | Curve / Square / Rectangle |
| Finish | RAL color / Woodgrain / Stone color / Brass / TBD |
| Coating | PVDF |
| Coating brand | PPG / AKZO / NIPPON / DNT / TBD |
| Core | Non-combustible aluminum |
| Panel size | Standard 1200*600mm / 2400*1200mm / TBD |
| Panel thickness | 25mm / 50mm / TBD |
| Hole options | Standard micro hole |
| Edge options | For wall / ceiling |
| Woodgrain | Along length / width |
| Border |
Standard / non-perforated / TBD |
Features :
| Smooth surface finish |
| Excellent NRC rating 1 when used as a lay-in ceiling tile , no acoustical liner needed |
| Cost - effective Tegular of flat lay-in ceiling tiles easily installa standard grid |
| Tested and proven to achieve are avaliable after delivery |
| Woodgrain Available in anodized or custom printing finish |
Sound Absorption Coefficient :
Based on ISO 354:2003 Acoustics - Measurement of Sound Absorption in a Reverberation Room the NRC = 1
Fireproof performance :
Available Test based on EN13501-1:2018
Fire classification of construction products and building elements -
Part 1 : Classification using data from reaction to fire tests result fire classification A1
Color finish options :
Ceiling installation info :
Aluminum micro perforated acoustic panel job reference :
FAQ :
Q: How do you clean aluminum perforated panels?
Cleaning aluminum perforated panels is a simple process. You can use a mild detergent solution and a soft-bristled brush or a soft cloth to remove dirt and stains. Avoid using abrasive cleaners or wire brushes as they can scratch the surface of the panel.
Q: Can aluminum perforated panels be recycled?
Yes, aluminum perforated panels are recyclable. Aluminum is a highly recyclable material, and it can be melted down and used to make new products.
More acoustic panel project inspire ideas please kindly contact Brotex Acoustic for details , thank you !
