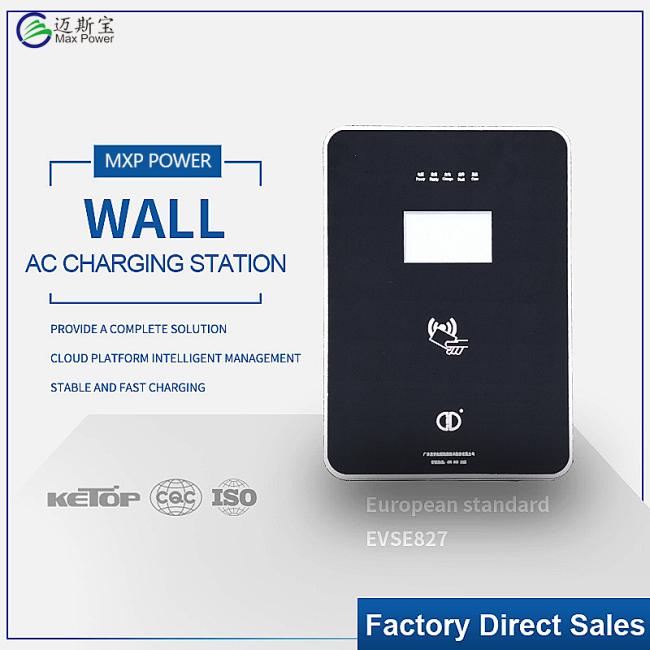

Wall-Mounted 7KW AC Vehicle EV Charging Pile AC EV Charger For Home Of Energy
Price:
CN¥4,647.26/sets 1-9 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
MAXPOWER
Product Description
CONTACT US NOW!!!
Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.
Product Description
EV CHARGER 7KW
The Charging pile produced by MXPower with European standard has different types to meet the charging needs of different vehicles,
It can provide intelligent charging services based on different charging scenarios.
It can provide intelligent charging services based on different charging scenarios.
Note:All product outward appearance, the color take the material object as, the picture only supply the reference
Specification
|
Model
|
EVSE828-EU
|
EVSE828S-EU
|
||
|
Input&Output
|
|
|
||
|
Input voltage(AC)
|
AC220V(L+N+PE)
|
AC220V(L+N+PE)
|
||
|
Input frequency
|
50Hz
|
50Hz
|
||
|
Output voltage
|
220V AC
|
220V AC
|
||
|
Max.output power
|
7KW
|
7KW
|
||
|
Max.output current
|
32A
|
32A
|
||
|
Charger interface type
|
IEC62196-2, type 2
|
IEC62196-2, type 2
|
||
|
Protection
|
|
|
||
|
Overvoltage protection
|
Yes
|
Yes
|
||
|
Undervoltage protection
|
Yes
|
Yes
|
||
|
Overload protection
|
Yes
|
Yes
|
||
|
Shortcircuit protection
|
Yes
|
Yes
|
||
|
Earthleakage protection
|
Yes
|
Yes
|
||
|
Over-temperation protection
|
Yes
|
Yes
|
||
|
Lightning protection
|
Yes
|
Yes
|
||
|
Function and accessory
|
|
|
||
|
Ethernet/WIFI/4G
|
Yes/Yes/Opt
|
Yes/Yes/Opt
|
||
|
Connection
|
IEC62196-2
|
IEC62196-2
|
||
|
RCD
|
Type B faultcurrent protection
|
Type B faultcurrent protection
|
||
|
LED Indicator light
|
Yes
|
Yes
|
||
|
Emergency stop button
|
Opt
|
Opt
|
||
|
Charging Mode
|
RFID swipe card(Opt)
|
RFID swipe card(Opt)
|
||
|
Communication interface
|
RS-232/485 Opt
|
RS-232/485 Opt
|
||
|
Background agreement
|
Support OCPP 1.6 protocol
|
Support OCPP 1.6 protocol
|
||
|
Mean Time to Failure
|
MTBF=8796h
|
MTBF=8796h
|
||
|
Display Screen
|
7 Inches
|
7 Inches
|
||
|
With charging socket/cable
|
Opt
|
Opt
|
||
|
Working evironment
|
|
|
||
|
Protection degree
|
IP65
|
IP65
|
||
|
Evironment temperature
|
-20℃+55℃
|
-20℃+55℃
|
||
|
Relative humidity
|
5%-95% non-condensing
|
5%-95% non-condensing
|
||
|
Storage temperature
|
-40℃+70℃
|
-40℃+70℃
|
||
|
Maximum altitude
|
<2000m
|
<2000m
|
||
|
Cooling
|
Natural air cooling
|
Natural air cooling
|
||
|
Standby power consumption
|
<3W
|
<3W
|
||
|
Mechnical
|
|
|
||
|
Dimension(W/H/D)
|
400/280/120mm
|
400/280/120mm
|
||
|
Weight
|
<8KG
|
<8KG
|
||
|
Mounting
|
|
|
||
|
Mounting mode
|
Wall hanging
|
Upright
|
||
|
Moutiong accessories
|
Wall-mounting bracket
|
Ground-mounting pole
|
||
SUPPORT CAR:
Please feel free and click here for more information.
Company Profie
Please feel free and click here for more information.
Exhibition
Packaging and shipping
Customer Reviews
Please feel free and click here for more information.
FAQ
Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
