Fast Charger Electric Vehicles Car Charger Station by E-mingze Portable Movable 7kw with Undervoltage protection
Price:
CN¥8,833.79/pieces 2-99 pieces
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
e-mingze
Product Description
| Product Specification Sheet | |

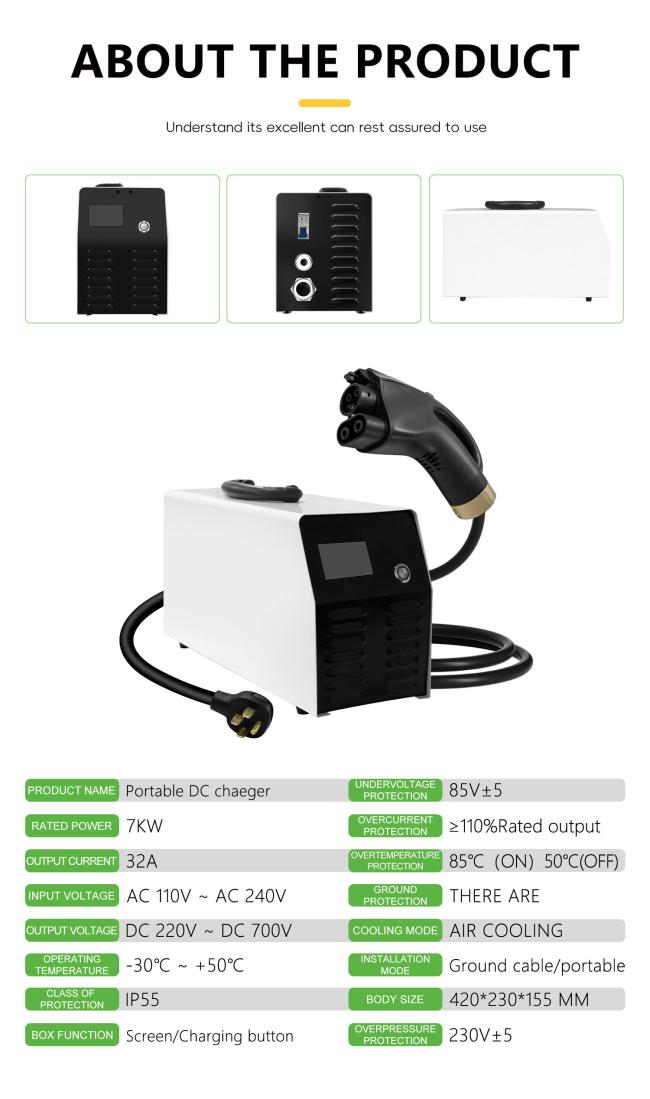

| 7KW DC PORTABLE CHARGING GUN Basic Parameters | |
| Product name | MZDC-078032 |
| Charging Parameters | |
| Output power | 7KW |
| Output current | 22A |
| Car plug | CCS1 |
| Input plug | customizable |
| Input Voltage | 175-265V,mains 220V |
| Output Voltage | Dc 200-750V.22Amax, 7KWmax |
| Class protection | IP32(fuselage),IP55(head - coupling state) |
| Cable length | 5/10/15/20 meters |
| Box Function | Screen/Charging button |
| Storage bag | None |
| Cooling method | air cooling |
| Working voltage | AC90-275V |
| Input cable length | 50cm |
| Output cable length | 250cm |
| Switch | Switch button on the front (for decoration)(Switch on the back) Screen on the left side of the main picture |
| Leakage protection type | CP abnormal protection, leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Machine parameters | |
| Dimension L*W*H/mm | 555*410*310mm |
| Net weight | 14KG |
| Gross weight | 16kg |
| Operating temperature | ‘-30°C~+50 °C |
| PRODUCTCHARACTERISTICS | |
| 1. inteligent display, real-time monitoring of charging status. | |
| 2. Can schedule charging, record charging time and electricity consumption. | |
| 3. supports charging most electric and hybrid vehicles on the market. | |
| 4. High quality pure copper COc certified cable. | |
| 5. Adjustable current size . | |
| 6.Supports vehicle charging lock gun function. | |
| 7. Self stop when fully charged. | |
FAQ
1. Are you a factory or trading company?

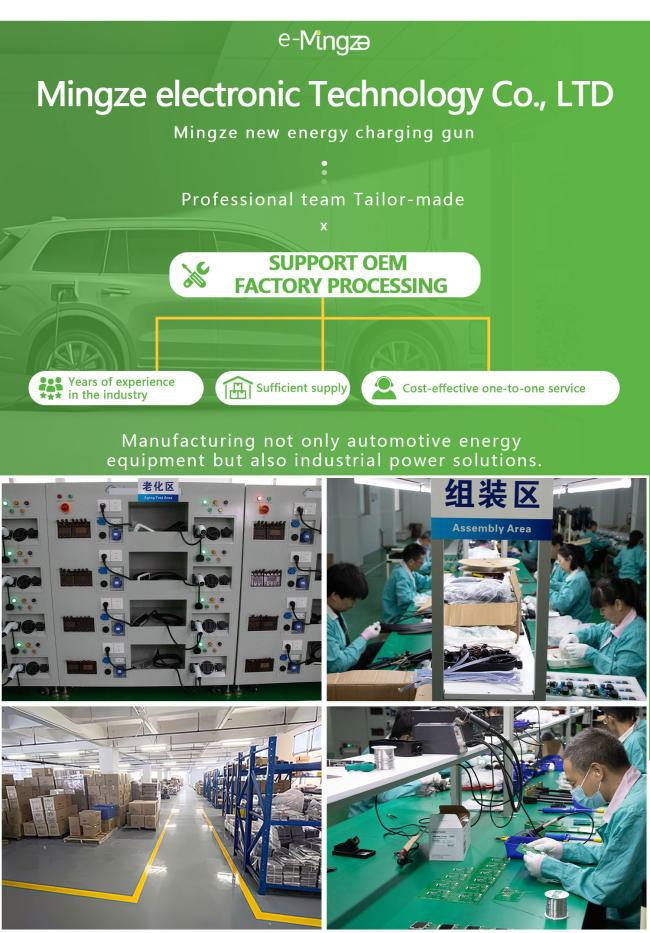

We are a factory. Located in Guangzhou city, Guangdong Province. Factory established on 2008.
2. What’s the MOQ?
MOQ for standard model is 1 piece, and MOQ is 100pcs if custom-made.
3. What’s your main market?
Our main market is US and EU, but our cargoes are sold all over the world.
4. What’s your advantage?
We have our own cable production line so that we can control quality, price and leading time better.
5. Can I custom my LOGO?
Yes. You can not only custom LOGO, but also color, cable, enclosure box and carton. Just contact us if you have special needs.
