Forging Process 5inch DTH Hammer for Cop54 / Atlas / Sadvik DHD350 / CD55 Rock Drilling / Waterwell Drilling / Mining / Quarrying Compatible
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
Super Diamond
Product Description
5inch High Air Pressure DTH Hammer with foot valve
Advantages:
1. Valve air distribution. More reliable.
2. Simple design of the piston, long life.
3. More efficient energy transfer, faster drilling speed, low air consumption and low oil consumption.
4. Fewer internal parts, simple structure, longer life,less failure and easier to maintain because all the parts are heat treated.
5. Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-sted thread.
Technical Data:
Hammers | Bit Shank | Connection Thread | Suitable bit | Working pressure | Air consumption | |
| 1-3" Middle-low pressure DTH hammers | BR1 BR2 BR3 | RD40 box RD50 box API 2 3/8" Reg | ¢64-¢76mm ¢70-¢90mm ¢90-¢110mm | 0.7-1.75Mpa 0.7-1.75Mpa 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
| 1.0Mpa | 4m3/min | |||||
| 1.4Mpa | 5m3/min | |||||
| 3" hammers | DHD3.5 COP32/COP34 M30 | API 2 3/8"Reg | ¢90-¢110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| 1.5Mpa | 9m3/min | |||||
| 4" hammers | DHD340 COP44 QL40 SD4 M40 | API 2 3/8"Reg | ¢105-¢130mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| 1.8Mpa | 10m3/min | |||||
| 2.4Mpa | 15m3/min | |||||
| 5" hammers | DHD350 COP54 QL50 SD5 M50 | API 2 3/8"Reg/API 3 1/2"Reg | ¢130-¢156mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| 1.8Mpa | 15m3/min | |||||
| 2.4Mpa | 23m3/min | |||||
| 6" hammers | DHD360 COP64 QL60 SD6 M60 | API 3 1/2"Reg | ¢152-¢203mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| 1.8Mpa | 20m3/min | |||||
| 2.4Mpa | 28.5m3/min | |||||
| 8" hammers | DHD380 COP84 QL80 SD8 | API 4 1/2"Reg | ¢200-¢279mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| 1.8Mpa | 26m3/min | |||||
| 2.4Mpa | 34m3/min | |||||
| 10" hammers | SD10 NUMA100 | API 6 5/8"Reg | ¢254-¢330mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| 1.8Mpa | 40m3/min | |||||
| 2.4Mpa | 55m3/min | |||||
| 12" hammers | DHD1120 SD12 NUMA120 NUMA125 | API 6 5/8"Reg | ¢305-¢381mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| 1.8Mpa | 56m3/min | |||||
| 2.4Mpa | 78m3/min | |||||
Detailed Technicial Parameters:

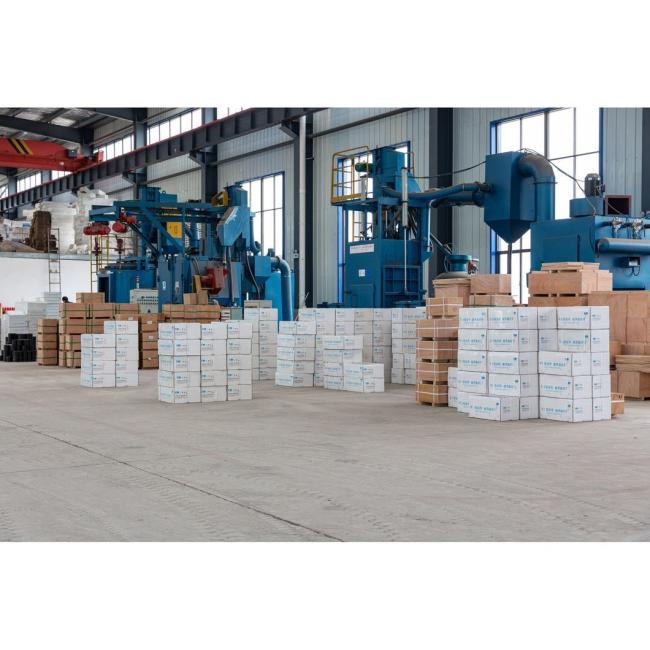

Production Cornor:
