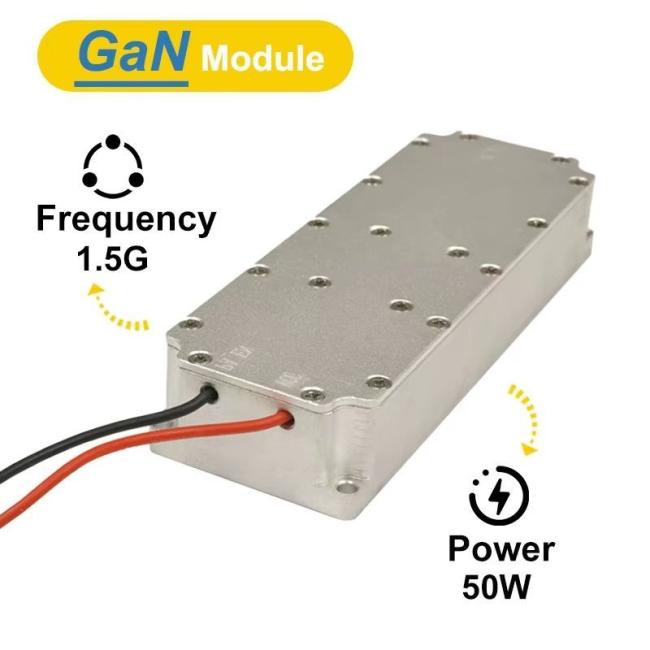

Compact 47dBm RF PA Module Drone Jammer Module 1164-1250MHz 24V-28V
Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.
RF Module Anti Drone Jammer Module
Specification
2.This document stipulates the radio frequency and monitoring technical indicators of the 1.2G 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
3.This document applies to all aspects of product design, verification, production and quality inspection of the 1.2G 50W power amplifier module.
|
Test Item
|
indicator
|
Remark
|
|
|
Frequency Range
|
1.5Ghz
|
Built-in interference source
|
|
|
Working Voltage
|
30V
|
24-32V
|
|
|
Max Output Power
|
47dBm
|
1.5G 50W
|
|
|
Working Efficiency
|
≥60%
|
|
|
|
Gain
|
47dbi
|
peak-to-peak value
|
|
|
Passband Riplpe
|
≤2dB
|
peak-to-peak value
|
|
|
High-Low Temperature Test
|
Working Temperature(ºC)
|
-10~+55ºC
|
It can start at low temperatures
|
|
Gain Stability
|
±1.5 @-40ºC~+55ºC
|
|
|
|
Power Stability
|
±1.5 @-40ºC~+55ºC
|
|
|
|
Power supply requirements
|
≥3.7A
|
Continuous wave output 50W
|
|
|

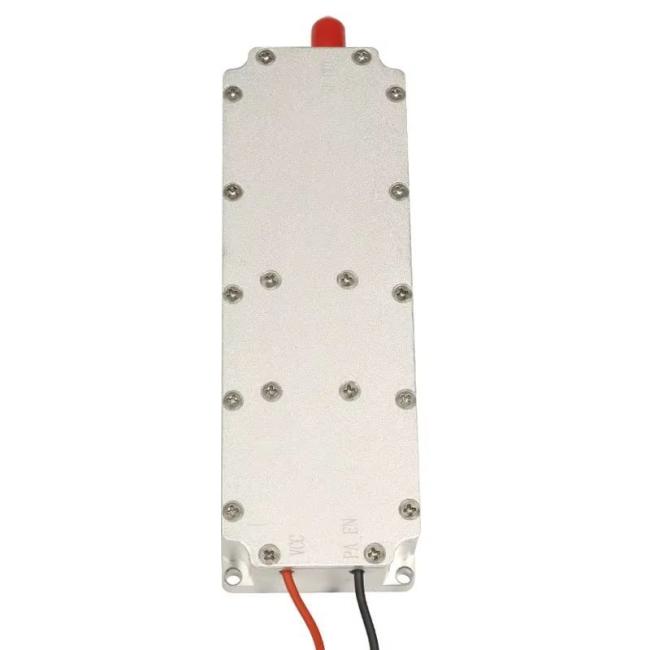

Power supply interface
|
|
Red + and black -
|
|
|
Enable
|
|
White line high level on, low level off
|
|
|

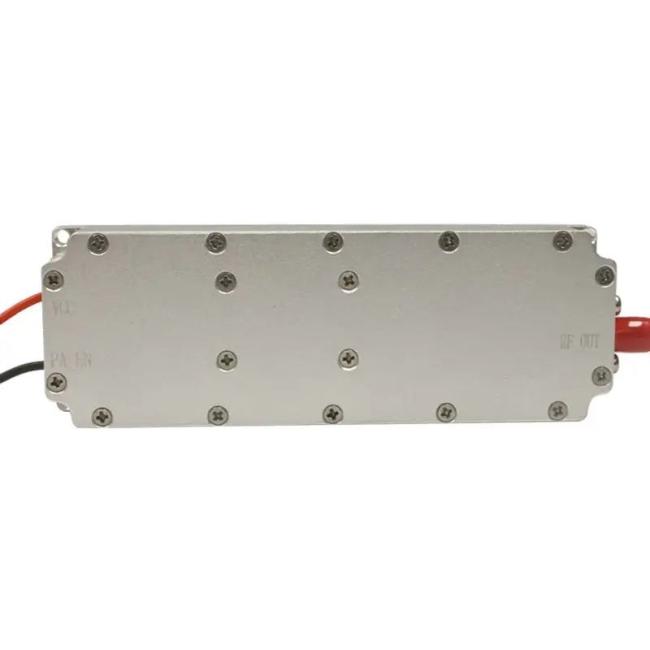

RF Connector
|
SMA
|
SMA external screw base
|
|
|
Size
|
37.3*112*19.5mm
|
Excluding SMA
|
|
|
Weight
|
160g
|
||
