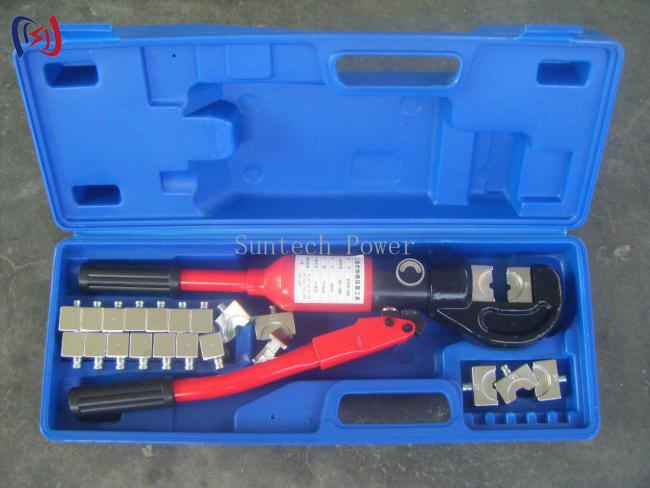

KYQ Quick Hydraulic Pliers 100KN 120KN Hydraulic Wire Crimper
KYQ Integral Hydraulic Crimping Pliers Hydraulic Crimping Tool
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Pre-Operation Set-Up
2. Rotate the yoke fully counter clockwise to bottom out the adapter seat.
Hydraulic Crimping Pliers Specification
| Item number | 16185 | 16186 | 16186A |
| Model | KYQ-400 | KYQ-300 | KYQ-300C |
|
Crimping force |
120KN | 100KN | 100KN |
|
Crimping range |
16-400mm² | 16-300mm² | 16-300mm² |
| type | hexagon crimping | hexagon crimping | hexagon crimping |
| Dies |
50,70,95,120,150, 185,240,300,400mm² |
16,25,35,50, 70,95,120,150, 185,240,300mm² |
16,25,35,50, 70,95,120,150, 185,240,300mm² |
| Stroke | 32mm | 17mm | 17mm |
| Length | approx.540mm | approx.500mm | approx.500mm |
| Weight(KG) |
approx.N.W6.7KG G.W9.5KG |
approx.N.W4.9KG G.W7.7KG |
approx.N.W4.9KG G.W7.7KG |
| Package | plastic box | plastic box | plastic box |
