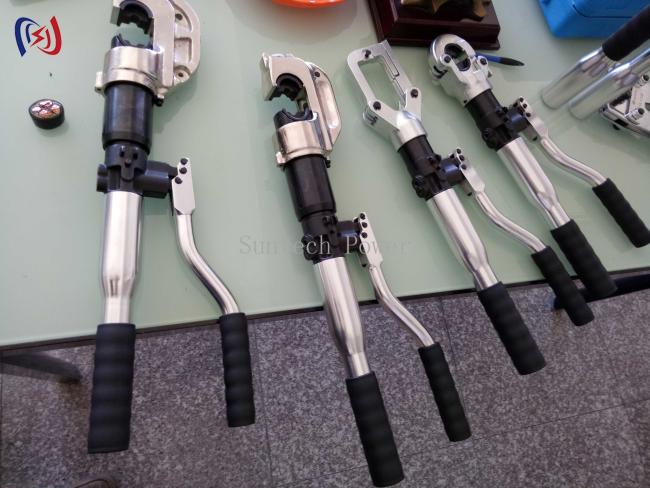

HT Integral Hydraulic Crimping Pliers 16mm2 - 400mm2 Hydraulic Wire Crimping Tool
HT Integral Hydraulic Crimping Pliers Hydraulic Crimping Tool
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
crimping range:50-400mm2
crimping force:20t
crimping type:hexagon crimping
stroke:25mm
length:approx.540mm
weight:approx.8.30kg
package:plastic box or steel case
weight of case :approx.4.00kg
accessories:
crimping dies:50,70,95,120,150,185,240,300,400mm2
Hydraulic Crimping Pliers Specification
| Item number | 16210 | 16210A |
| Model | HT-300 | HT-400 |
|
Crimping force |
60KN | 120KN |
|
Crimping range |
16-300mm² | 16-400mm² |
| type | hexagon crimping | hexagon crimping |
| Dies |
50 16,25,35,50,70,95,120, 150,185,240,300mm² |
50,70,95,120,150, 185,240,300,400mm² |
| Stroke | 17mm | 32mm |
| Length | approx.460mm | approx.552mm |
| Weight(KG) |
approx.N.W3.7KG G.W7.1KG |
approx.N.W6.8KG G.W10.2KG |
| Package | aluminum alloy box | aluminum alloy box |
