220V 50HZ Hydraulic Bus Bar Machine Hydraulic Crimping Tool
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
7-15days
Brand:
Suntech
Product Description

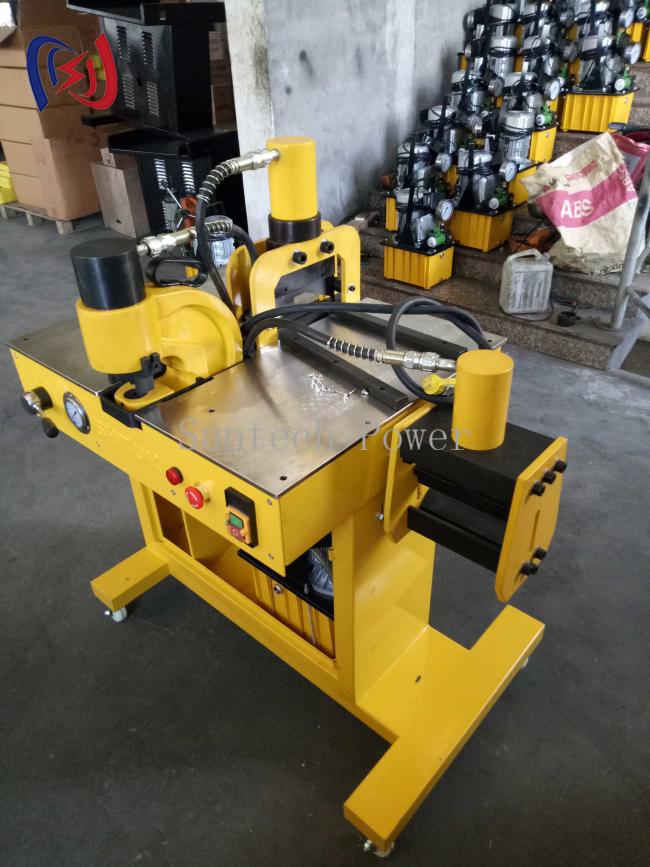

Hydraulic Bus-Bar Machine Hydraulic Crimping Tool
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
| Item No. | 06232 | 06231 |
| Model | EPCB-301 | EPCB-401 |
| Function | with three functions,cutting,punching and bending | with four functions,cutting,punching and bending(horizontal and erective) |
| Dimension of work table | approx.690*690*730mm | approx.690*690*730mm |
| Voltage single phase | 220V50HZ | 220V50HZ |
| Rating oil pressure | 700kg/cm2 | 700kg/cm2 |
| Bending force | 170kn/200kn | 270kn |
| Bending range | 150*10mm max/200*12mm max | 125*12.5mm max |
| Cutting force | 200kn/300kn | 200kn/300kn |
| Cutting range | 150*10mm max/200*12mm max | 150*10mm max/200*12mm max |
| Punching force | 300kn/350kn | 300kn/350kn |
| Distance from hole to sheet side | 95*110mm max | 95*110mm |
| Punch range |
Φ10.5mmΦ13.8mm Φ17mmΦ20.5mm |
3/8"(Φ10.5mm),1/2"(Φ13.8mm) 5/8"(Φ17mm),3/4"(Φ20.5mm) |
| Package | wooden case | wooden case |
