EDL Equipment Casters 3Inch Plate E-coated Casters 500Kg Road Rigid/Swivel/with Brake M433P-86A
The EDL Equipment Caster M433-86AP is a 3-inch plate-mounted industrial caster designed for heavy-duty applications that demand both strength and refined appearance. This model features an aluminum core wheel coated with high-quality polyurethane (PU), offering an ideal balance between durability, quiet operation, and floor protection.
Each caster supports up to 500 kg, delivering exceptional stability and performance for industrial machinery, factory systems, and precision instruments. The polyurethane tread ensures smooth and silent movement while minimizing vibration and noise, making it perfect for environments where comfort and cleanliness matter.
With its E-coated steel bracket, the M433-86AP boasts superior corrosion resistance and a sleek industrial finish. Operating reliably between -30°C and 80°C, it performs consistently in both cold and hot conditions. Available in rigid, swivel, and brake types, this caster offers versatile installation and control options.
- 3-inch plate-mounted industrial caster for heavy-duty applications
- Aluminum core wheel with high-quality polyurethane (PU) coating
- 500 kg load capacity per caster
- E-coated steel bracket for superior corrosion resistance
- Operates reliably between -30°C and 80°C
- Available in rigid, swivel, and brake configurations
- Smooth, silent movement with minimal vibration
- Protects floors while providing excellent durability
| Wheel Item No. | Size | Wheel Diameter | Wheel Width | Bracket Width | Load Capacity | Core | Tread | Bearing | Applicable Temperature | Hardness |
|---|---|---|---|---|---|---|---|---|---|---|

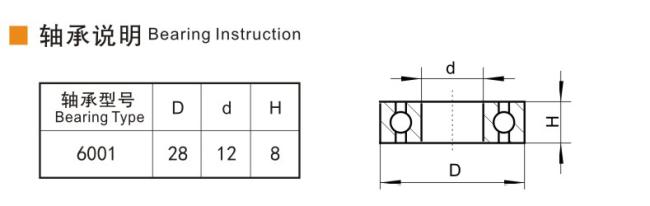

| M433-86A | 3" | 75mm | 40mm | 46mm | 500Kg | Aluminum | TPU | Double ball bearing 6001 | -30℃～80℃ | 92A |
