1×16 Fiber Optic Coupler 1×16 Polarization Maintaining Fiber Coupler / Fiber Optic Splitter

This 1*16 Fiber Coupler is a high-performance passive optical splitting device capable of uniformly distributing a single input optical signal across 16 output ports.

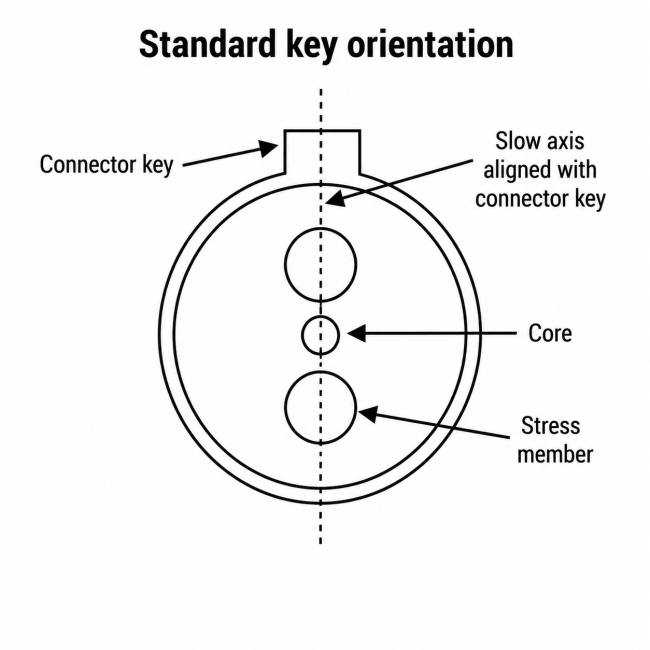

The default connector key is aligned to slow axis.

• 1*16 Multi-channel uniform optical splitting structure
• Utilizes PM (Polarization-Maintaining) Fiber technology
• Based on PLC (Planar Lightwave Circuit) design
• Typical Insertion Loss: ≤8.2 dB
• Extinction Ratio: ≥20 dB
• Return Loss: ≥50 dB
• Directionality: ≥50 dB
• Operating Wavelength Range: 420–456 nm
• Maximum Input Optical Power: 300 mW
• Operating Temperature: -5°C to +65°C
• Storage Temperature: -40°C to +80°C

• EDFA (Erbium-Doped Fiber Amplifiers)
• Fiber Optic Instrumentation and Test Systems
• Coherent Communication Systems
• Fiber Optic Sensing Systems
• Optical Power Monitoring Systems
• Fiber Laser Systems

FAQ

Q1: What is the operating wavelength range of this product?

A: According to the specifications, the operating wavelength range of this 1×16 PM Fiber Coupler is 420–456nm, suitable for short-wavelength polarization-maintaining optical systems, optical test platforms, sensing systems, and special light source applications.

Q2: Does this product support customization?

A: Yes, it supports customization. Customers can customize the fiber length, connector type, packaging, and pigtail structure according to their actual system requirements.
