PM V Groove Fiber Array 8 Degree Quartz Silicon 1 To 64 Channel For PM Collimator Photonic Waveguide / Laser

PM Fiber Array

Material

Quartz& Silicon

V-groove core pitch

μm

127/250/500(±0.5)or customer specified

Polishing angle

degree

8°(±0.3°)

Fiber type

250um Panda PM fiber

Number of channels

1

2

4

8

16

32

64

Channel spacing

μm

250

250

250

127

127

127

Package
(L)X(W)X(H)

mm

6x2.5x2.5

10x2.5x2.5

10x2.5x2.5

10x2.5x2.5/
10x3.5x2.5

12x3.5x2.5

12x5.7x2.5

12X9.7X2.5

Extinction ratio

dB

≥25

≥25

≥23

≥21

≥18

≥16

≥15

Connector

FC/SC/LC or Customized

Operating Temperature (℃)

-5～65

Storage Temperature (℃)

-40～85

PMSFA-

XX-

X-

XX-

X-

X-

X

PM=Polarization

Maintaining

Channel Count

Materials

Fiber Length

Fiber Type

Fiber Color

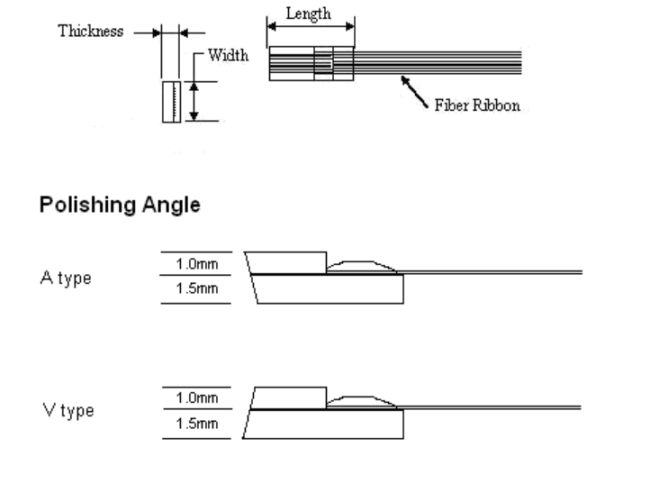

Polishing Angle

S=Single

01=D type capillary

Q=Quartz

12=1.2m

B=250μm Bare Fiber

C=Clear

A= +8°

F=Fiber

02=Quadrate capillary

S= Silicon

15=1.5m

L=900μm Loose Tube

W=White

V= -8°

A=Array

03=V groove

X=Customized

T=900μm Tight Buffer

B=Blue

N=0°

X=Customized

X=Customized

PMGFA-

XX-

X-

XX-

XX-

X-

X

PM=Polarization

Maintaining

Channel Count

Materials

Core Pitch

Ribbon Fiber Length

Ribbon Fiber Color

Polishing Angle

G=Gracyfiber

02=2 channels

Q= Quartz

25= 250μm

12=minimum 1.2m

S=Gigalight Standard

A= +8°

F=Fiber

04=4 channels

S= Silicon

12= 127μm

15=minimum 1.5m

X=Customized

V= -8°

A=Array

08=8 channels

..........

N=0°

..........

X= Customized

64=64 channels
