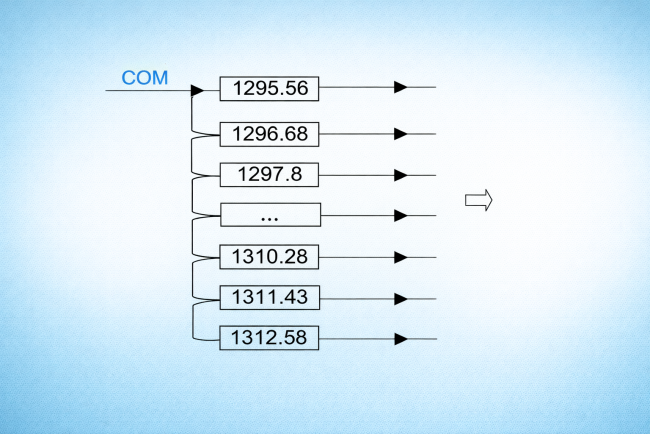

This 16-channel, 200 GHz O-Band PM DWDM Module is a polarization-maintaining (PM) Dense Wavelength Division Multiplexing/Demultiplexing module designed for operation within the O-band. It covers the 1260–1380 nm wavelength range and utilizes a 200 GHz channel spacing to enable high-density transmission across 16 distinct wavelength channels. According to product specifications, the module primarily covers a channel range spanning approximately 1295.56 nm to 1312.58 nm, with a passband precisely controlled within ±0.2 nm of the center wavelength; this makes it ideally suited for carrying Gigabit and higher-speed data services.

• Supports 16-channel O-band multiplexing/demultiplexing with 200 GHz channel spacing
• Operating wavelength range: 1260–1380 nm
• Utilizes Corning PM-1310-U25D Polarization-Maintaining (PM) fiber
• Standard configuration features 0.9 mm blue loose-tube cabling and LC/UPC connectors
• Connector key aligned to the slow axis for more stable polarization control
• Total link loss: approximately 5.5 dB
• Adjacent channel isolation: ≥ 25 dB; Non-adjacent channel isolation: ≥ 35 dB
• Extinction Ratio (ER): > 16 dB; Return Loss: > 45 dB; Directivity: > 50 dB
• Compact metal package with dimensions of approximately 120 × 80 × 18 mm
• Suitable for long-term stable operation; compliant with Telcordia and RoHS requirements

• Broadband Access Networks
• PON / FTTx Systems
• CATV Optical Transmission Systems
• O-band DWDM Transmission Platforms
• Multi-service Aggregation Transmission Systems
• Optical Communication Experiment and Test Platforms
• Polarization-Maintaining Multi-wavelength Optical Layer Subsystems
