PM Fiber Patch Cord FC APC FC UPC SC LC 1310nm 1480nm 1550nm 980nm 1064nm 850nm
Price:
Negotiable
MOQ:
1pieces
Delivery Time:
5-8 work days
Brand:
Gracyfiber
Product Description

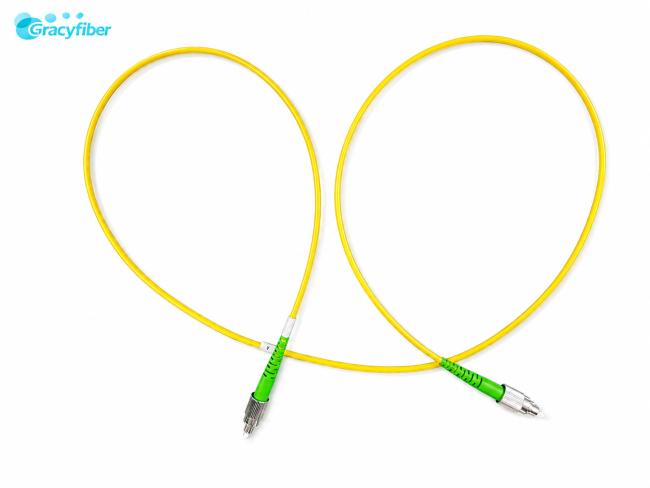

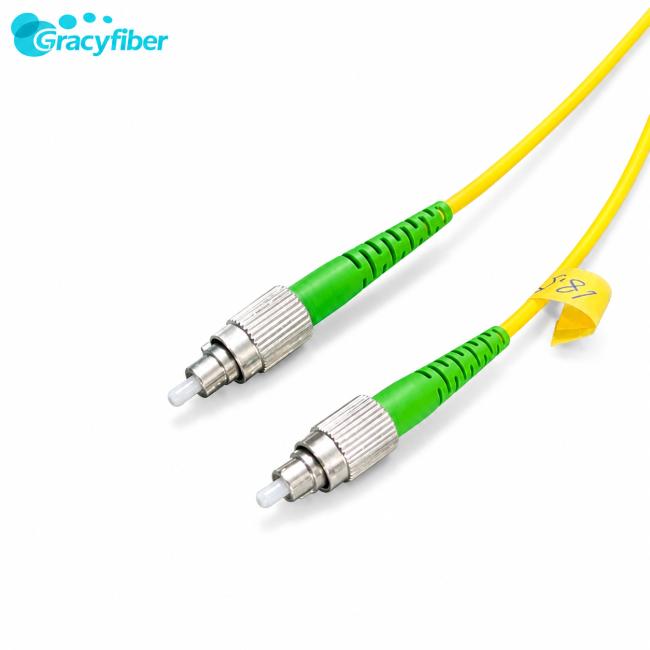

Polarization Maintaining Fiber Patchcord PM Fiber Patch Cord FC APC FC UPC SC LC 1310 1480 1550 980 1064 850nm for Fiber Laser Amplifier Testing Instrument
1. Product Overview
This product is a Polarization Maintaining Fiber Patchcord, used to achieve highly stable, high extinction ratio optical signal connections and extensions in various polarization-maintaining fiber systems.
2. Product Advantages
- Low Insertion Loss, Lower Link Loss
- High Return Loss and High Extinction Ratio
- Multi-wavelength, multi-fiber type coverage
- Slow Axis Alignment, Controllable Polarization Direction
- Flexible Length, Customizable
- High Stability and Environmental Adaptability
3. Product Features (Key Features)
| Parameter | Value | ||||
|---|---|---|---|---|---|
| Connector Type | / | FC/UPC, SC/UPC,LC/UPC,FC/APC, SC/APC, | |||
| Wavelength | nm | 1310,1480, 1550 | 980, 1064, | 850 | |
| Insertion Loss | dB | ≤0.3 | ≤0.5 | ≤0.8 | |
| Return loss | UPC Type | dB | ≥50 | ||
| APC type | ≥55 | ||||
| Extinction Ratio 23℃ | dB | ≥23 | ≥23 | ≥22 | |
4. Applications
- Fiber Laser
- Testing Instrument
- Fiber Amplifier
- Optic Lab Use
