PM AAWG Polarization Maintaining Array Waveguide Gratings 50GHz 100GHz 150GHz C13-C64
PM AAWG Polarization-Maintaining Array Waveguide Gratings 50GHz 100GHz 150GHz C13-C64 For DWDM Systems, Optical Transmission And PM Fiber Networks
This PM AAWG is a high-density arrayed waveguide grating device designed for polarization-maintaining fiber optic systems and DWDM transmission networks.
| Unit | Value | ||||
|---|---|---|---|---|---|
| nm | 1525~1565 | ||||
| nm | ITU Grid(C13 ~C64) or Customized | ||||
| nm | 32,40 | 32,40,44,48,60 | 80,88,96 | ||
| nm | 150GHz (1.2nm) | 100GHz (0.8nm) | 50GHz(0.4nm) | ||
| Min | nm | ±0.11 | ±0.11 | ±0.05 | |
| - | Flat-top | Flat-top | Gaussian | Flat-top | |
| Min | nm | 0.92 | 0.38 | 0.2 | 0.2 |
| Min | nm | 1.2 | 0.58 | 0.4 | 0.26 |
| Max | dB | 5.5 | 5.5 | 3.8 | 6.0 |
| Min | dB | ≥11 | ≥25 | ≥27 | ≥25 |
| Min | dB | ≥23 | ≥29 | ≥30 | ≥29 |
| Max | dB | 1.5 | 1.5 | 1.5 | 1.5 |
| Max | dB | 0.5 | 0.5 | 1.5 | 0.5 |
| Min | dB | 18 | 18 | 18 | 16 |
| Min | dB | 40 | |||
| Min | dB | 50 | |||
| Max | mW | 300 | |||
| - | PM 1550 Fiber | ||||
| um | 250 µm / 900 µm loose tube | ||||
| L1 | mm | 500 | |||
| L2 | mm | 500 | |||
| - | LC/UPC or Customized | ||||

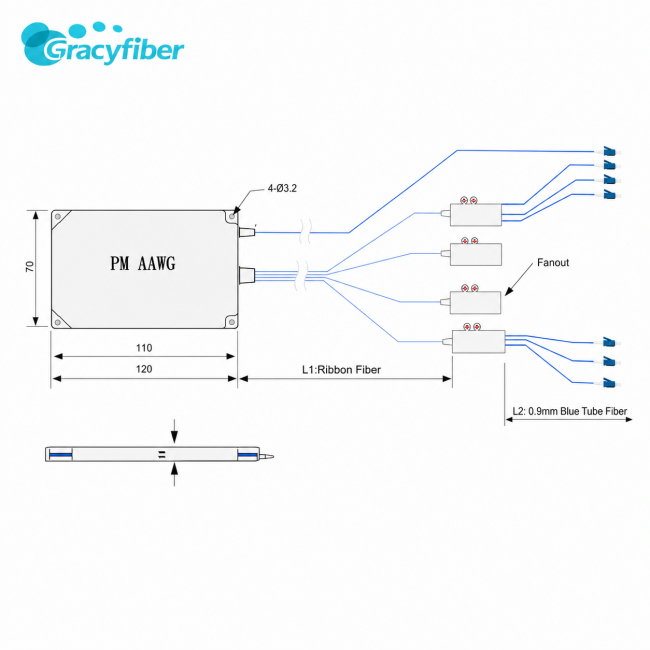

| mm | 120x70x11,482x250x44, 482x230x44 | ||||
| °C | -5~65 | ||||
| °C | -40~85 | ||||
- DWDM wavelength division multiplexing systems
- Optical transmission networks
- Multi-channel signal multiplexing and demultiplexing
- Polarization-maintaining fiber optic communication systems
- Optical test and experimental platforms
- Data center optical interconnects
- OEM optical communication modules
| AAWG | - | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | - | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Port | Channel Spacing | Pass Band Type | Initial Pass Channel |
Mux/ Demux |
Package Dimension | Jacket Type | Fiber Length |
- | Connector Type | Working Axis |
|
| - | XX | X | X | XXX | XX | XX | XX | XX | - | X | X | |
| PM AAWG | 20=20CH | X=100Ghz | F=Flat top | C21=21CH | 00=No | MT=120 *70* 11 | RB=Ribbon | 05=0.5m | 0=No | B=Dual Axis | ||
| 32=32CH | Y=20Ghz | G=Gaussian | H21=21CH | MU=MUX | PM=120 *80* 18 | 09=0.9mm Loose Tube | 10=1.0m | 1=FC/UPC | S=Slow Axis | |||
| 40=40CH | ....... | ....... | DE=Demux | LG=155 *129*29 | 20=2.0mm PVC Tube | 30=3.0m | 2=FC/APC | F=Fast Axis | ||||
| 48=40CH | A=50Ghz | C60=61CH | MD=Mux&Demux | 19=484 *250*44 | 30=2.0mm PVC Tube | XX= Customized | 3=SC/UPC | X= Customized | ||||
| 88=88CH | B=75Ghz | L75=75CH | AD=Add/Drop | XX= Customized | XX= Customized | 4=SC/APC | ||||||
| 96=96CH | C=150Ghz | XX=Customized | 5=LC/UPC | |||||||||
| 6=LC/APC | ||||||||||||
| X= Customized |
Example Part Number
PMAAWG-40XC21FMUST0910-2S
PM AAWG ,100Ghz 40Channel Port ,Wavlelength C21~C60,Mux Module,Matel BOX 120 *70* 11, Fiber is PM1550nm,
Fiber length 1 m with 0.9mm Blue Losse Tube ,FC/APC Connector, slow axis aligned to key.
FAQ
Q1: What channel spacing and number of channels does this PM AAWG support?
A: This product supports multiple channel spacings of 50GHz, 100GHz, and 150GHz, and provides various channel configurations including 32CH, 40CH, 44CH, 48CH, 60CH, 80CH, 88CH, and 96CH, suitable for DWDM network needs of different capacities.
Q2: What is the operating wavelength range of the PM AAWG?
A: This PM AAWG operates in the 1525~1565nm C-band, with center wavelengths supporting ITU Grid C13~C64. Customization is also available based on customer system requirements.
Q3: Does this PM AAWG support customization?
A: Customization is supported.
